Fuse 3 (Cord Set)
Polished Chrome 1215112
| Lamp Required: | No |
|---|---|
| Max Lamp Type & Wattage: | 3.3W LED |
| Lumen Output (LM): | 141 |
| Color Temperature (K): | 2700 |
| Location Rating: | Dry |
Subject to minimum order quantities and lead times. Please get in touch for more information.
Product Care and Cleaning Guide
To maintain this product to its best condition, please view our care and cleaning guide.
Supplied with cord set

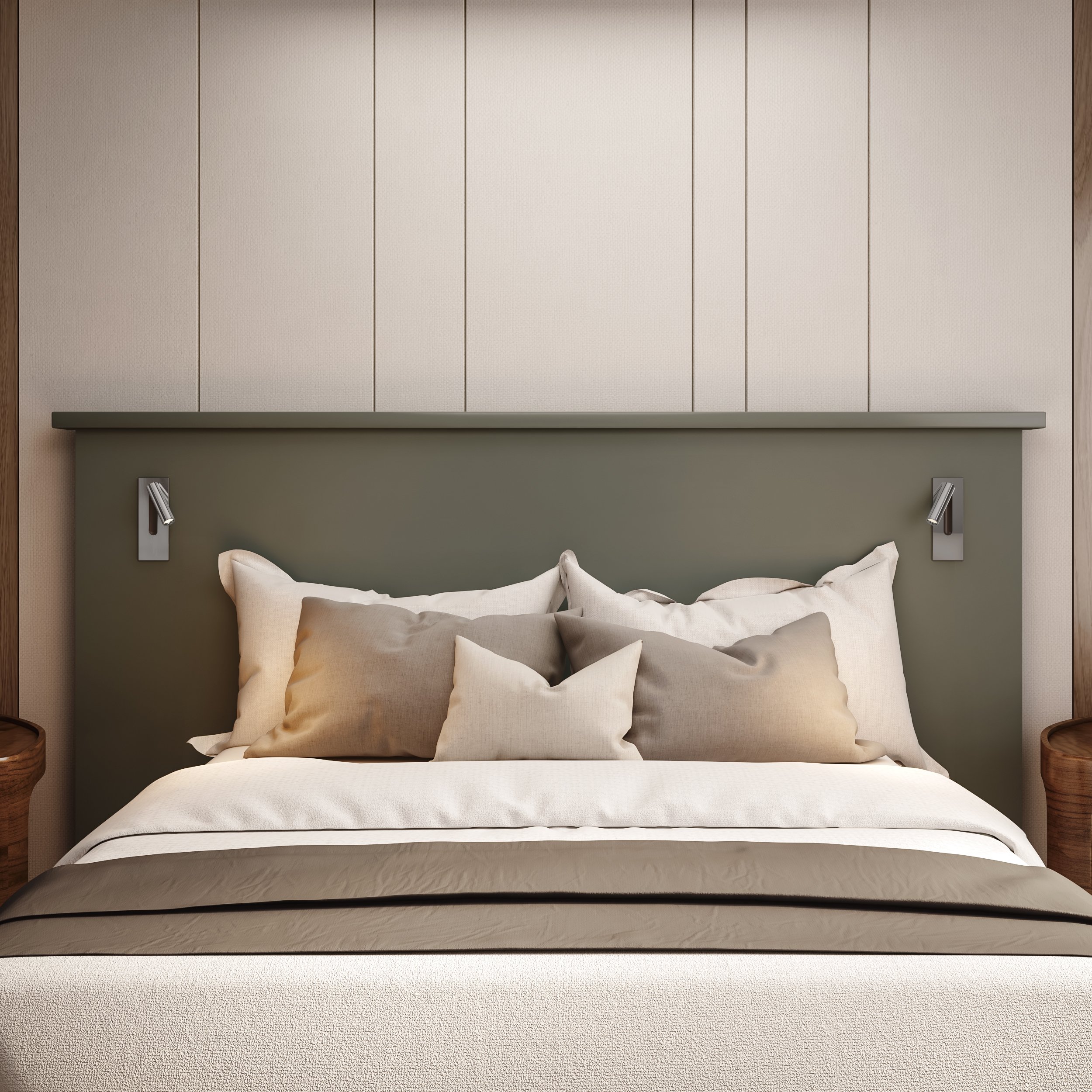

This product is supplied with a cord and plug for headboard mounting (minimum order quantities apply). Please contact our sales team for more information.
Positioning Guide
For tips on optimizing installation position, please view our guide.
Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 141 |
| Color Temperature (K): | 2700 |
| CRI: | 90 |
| Beam Angle (°): | 17.6 |
| Max Lamp Type & Wattage: | 3.3W LED |
| Switched: | Yes |
| Dimmable: | No |
| Driver Required: | No |
| Certification / Class: | cULus (Class 1) |
| Power Connection Type: | Cord Set |
| Location Rating: | Dry |
| Fitting Method: | Included Junction Box |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4 |
| IC Rated: | Yes |
| Direction Adjustable: | Yes |
| Installation Orientation: |
Wall Mount - Vertical Wall Mount Wall Mount - Horizontal |
| Recess Depth: | 60 |
| Cutout Shape: | Oval |
| Cutout Length (in): | 7.09 |
| Cutout Width (in): | 2.13 |
Downloads
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | Location |
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1215090 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215087 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215101 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215089 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215086 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215088 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | Location |
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1215095 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215092 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215102 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215094 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215091 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215093 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | Location |
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1215108 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215105 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215109 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215107 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215104 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215106 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | Location |
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1215115 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215111 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215114 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215113 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - | ||
| 1215110 |
|
3.3W LED | 2700K | 90 | 141 | Dry | - | 17.6 | - |
