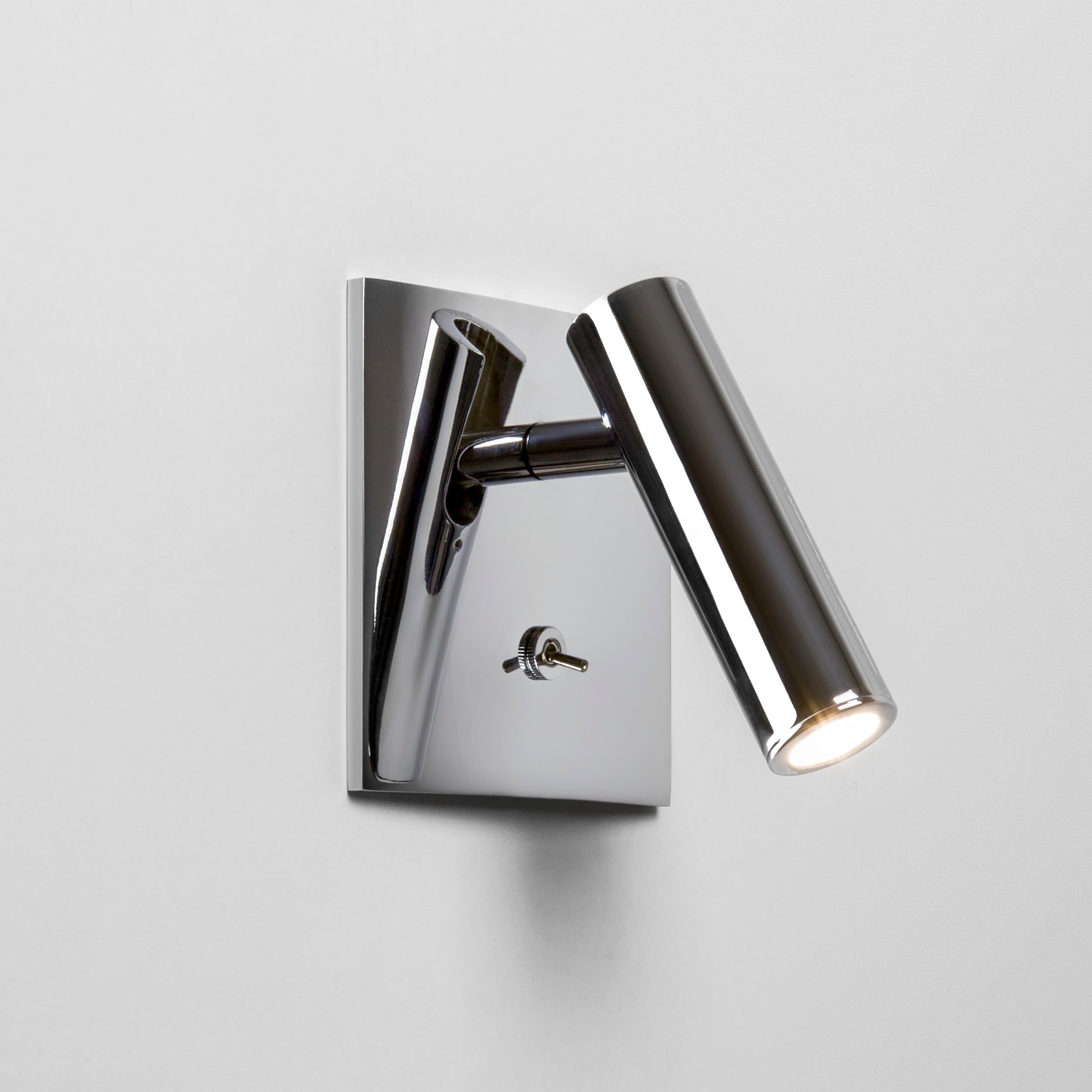

Enna Square Switched LED
Polished Chrome 1058047
spec overview
Lamp Included 4.5W LED 2700K Dry RatedTo maintain this product to its best condition, please view our care and cleaning guide.
This product is available with cord set for headboard mounting (minimum order quantities apply). UL approved. For datasheet and instructions see the product downloads section below. Please contact our sales team for more information.
All Astro reading lights are fully adjustable but careful consideration of placement when installing our fixtures can help further optimise reading comfort when in use. Download our positioning guide to learn more.
make a statement with Enna
Specification
| Lamp Required: | No |
|---|---|
| Color Temperature (K): | 2700 |
| CRI: | 90 |
| Max Lamp Type & Wattage: | 4.5W LED |
| Switched: | Yes |
| Dimmable: | No |
| Driver Required: | No |
| Certification / Class: | cULus (Class 1) |
| Power Connection Type: | Wired In |
| Location Rating: | Dry |
| Fitting Method: | 4in Octagon Box |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4 |
| Direction Adjustable: | Yes |
| Installation Orientation: | Wall Mount |
| Recess Depth (in): | 1.22 |
Downloads
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1058188 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Wired In | - | - | 14.3 | - | |||
| 1058260 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Wired In | - | - | 14.3 | - | |||
| 1058162 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Wired In | - | - | 14.3 | - | |||
| 1058164 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Wired In | - | - | 14.3 | - | |||
| 1058258 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Wired In | - | - | 14.3 | - | |||
| 1058158 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Wired In | - | - | 14.3 | - | |||
| 1058257 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Wired In | - | - | 14.3 | - | |||
| 1058163 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Wired In | - | - | 14.3 | - | |||
| 1058255 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Wired In | - | - | 14.3 | - | |||
| 1058189 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Cord Set | - | - | 14.3 | ||||
| 1058264 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Cord Set | - | - | 14.3 | ||||
| 1058159 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Cord Set | - | - | 14.3 | ||||
| 1058263 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Cord Set | - | - | 14.3 | ||||
| 1058167 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Cord Set | - | - | 14.3 | ||||
| 1058262 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Cord Set | - | - | 14.3 | ||||
| 1058166 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Cord Set | - | - | 14.3 | ||||
| 1058261 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Cord Set | - | - | 14.3 | ||||
| 1058165 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Cord Set | - | - | 14.3 | ||||
| 1058256 |
|
3.2W LED | 2700K | 90 | 131 | Dry | Cord Set | - | - | 14.3 |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1058211 |
|
4.4W LED | 2700K | 90 | 164 | Dry | Plug In | - | - | 38.4 | - | |||
| 1058217 |
|
4.4W LED | 2700K | 90 | 164 | Dry | Plug In | - | - | 38.4 | - | |||
| 1058216 |
|
4.4W LED | 2700K | 90 | 164 | Dry | Plug In | - | - | 38.4 | - | |||
| 1058215 |
|
4.4W LED | 2700K | 90 | 164 | Dry | Plug In | - | - | 38.4 | - | |||
| 1058093 |
|
3.3W LED | 2700K | 90 | 144 | Dry | Plug In | - | - | - | 17.6 | - | ||
| 1058037 |
|
3.9W LED | 3000K | 80 | 102.0 | Dry | Plug In | - | - | - | - | - | ||
| 1058094 |
|
3.3W LED | 2700K | 90 | 144 | Dry | Plug In | - | - | - | 17.6 | - | ||
| 1058092 |
|
3.3W LED | 2700K | 90 | 144 | Dry | Plug In | - | - | - | 17.6 | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1058086 |
|
4.5W LED | 2700K | 90 | 111 | Dry | Wired In | - | - | - | 17 | - | ||
| 1058049 |
|
4.5W LED | 2700K | 90 | 111.44 | Dry | Wired In | - | - | - | 17 | - | ||
| 1058044 |
|
4.5W LED | 2700K | 90 | Dry | Wired In | - | - | - | - | - | |||
| 1058046 |
|
4.5W LED | 2700K | 90 | Dry | Wired In | - | - | - | - | - | |||
| 1058228 |
|
4.5W LED | 2700K | 90 | Dry | Wired In | - | - | - | - | - | |||
| 1058184 |
|
4.3W LED | 2700K | 90 | 134 | Dry | Cord Set | - | - | - | 16.9 | |||
| 1058181 |
|
4.3W LED | 2700K | 90 | 134 | Dry | Cord Set | - | - | - | 16.9 | |||
| 1058169 |
|
4.3W LED | 2700K | 90 | 134 | Dry | Cord Set | - | - | - | 16.9 | |||
| 1058183 |
|
4.3W LED | 2700K | 90 | 134 | Dry | Cord Set | - | - | - | 16.9 | |||
| 1058180 |
|
4.3W LED | 2700K | 90 | 134 | Dry | Cord Set | - | - | - | 16.9 | |||
| 1058182 |
|
4.3W LED | 2700K | 90 | 134 | Dry | Cord Set | - | - | - | 16.9 | |||
| 1058087 |
|
4.5W LED | 2700K | 90 | 111.44 | Dry | Wired In | - | - | - | 17 | - | ||
| 1058055 |
|
4.5W LED | 2700K | 90 | Dry | Wired In | - | - | - | - | - | |||
| 1058050 |
|
4.5W LED | 2700K | 90 | Dry | Wired In | - | - | - | - | - | |||
| 1058052 |
|
4.5W LED | 2700K | 90 | Dry | Wired In | - | - | - | - | - | |||
| 1058053 |
|
4.5W LED | 2700K | 90 | Dry | Wired In | - | - | - | - | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1058126 |
|
3.3W LED | 2700K | 90 | 144 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1058124 |
|
3.3W LED | 2700K | 90 | 144 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1058127 |
|
3.3W LED | 2700K | 90 | 144 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1058125 |
|
3.3W LED | 2700K | 90 | 144 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1058123 |
|
3.3W LED | 2700K | 90 | 144 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1058177 |
|
4.1W LED | 2700K | 90 | 149 | Dry | Cord Set | - | - | - | 17.0 | |||
| 1058175 |
|
4.1W LED | 2700K | 90 | 149 | Dry | Cord Set | - | - | - | 17.0 | |||
| 1058178 |
|
4.1W LED | 2700K | 90 | 149 | Dry | Cord Set | - | - | - | 17.0 | |||
| 1058176 |
|
4.1W LED | 2700K | 90 | 149 | Dry | Cord Set | - | - | - | 17.0 | |||
| 1058170 |
|
4.1W LED | 2700K | 90 | 149 | Dry | Cord Set | - | - | - | 17.0 |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1058202 |
|
8.8W LED | 2700K | 90 | 328 | Dry | Wired In | - | - | - | 38.4 | - | ||
| 1058198 |
|
8.8W LED | 2700K | 90 | 328 | Dry | Wired In | - | - | - | 38.4 | - | ||
| 1058201 |
|
8.8W LED | 2700K | 90 | 328 | Dry | Wired In | - | - | - | 38.4 | - | ||
| 1058200 |
|
8.8W LED | 2700K | 90 | 328 | Dry | Wired In | - | - | - | 38.4 | - | ||
| 1058199 |
|
8.8W LED | 2700K | 90 | 328 | Dry | Wired In | - | - | - | 38.4 | - | ||
| 1058207 |
|
8.8W LED | 2700K | 90 | 328 | Dry | Cord Set | - | - | - | 38.4 | |||
| 1058203 |
|
8.8W LED | 2700K | 90 | 328 | Dry | Cord Set | - | - | - | 38.4 | |||
| 1058206 |
|
8.8W LED | 2700K | 90 | 328 | Dry | Cord Set | - | - | - | 38.4 | |||
| 1058205 |
|
8.8W LED | 2700K | 90 | 328 | Dry | Cord Set | - | - | - | 38.4 | |||
| 1058204 |
|
8.8W LED | 2700K | 90 | 328 | Dry | Cord Set | - | - | - | 38.4 |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1058039 |
|
4.7W LED | 2700K | 90 | 104.98 | Dry | Wired In | - | - | - | - | - | ||
| 1058040 |
|
4.7W LED | 2700K | 90 | 104.98 | Dry | Wired In | - | - | - | - | - | ||
| 1058038 |
|
4.7W LED | 2700K | 90 | 104.98 | Dry | Wired In | - | - | - | - | - | ||
| 1058173 |
|
4.7W LED | 2700K | 90 | 104.98 | Dry | Cord Set | - | - | - | - | |||
| 1058174 |
|
4.7W LED | 2700K | 90 | 104.98 | Dry | Cord Set | - | - | - | 20 | |||
| 1058171 |
|
4.7W LED | 2700K | 90 | 104.98 | Dry | Cord Set | - | - | - | 20 |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1058090 |
|
3.3W LED | 2700K | 90 | 144 | Dry | Plug In | - | - | - | 17.6 | - | ||
| 1058091 |
|
4.5W LED | 2700K | 90 | 124 | Dry | Plug In | - | - | - | - | - | ||
| 1058089 |
|
3.3W LED | 2700K | 90 | 144 | Dry | Plug In | - | - | - | 17.6 | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6003002 | - | - | - | - | - | - | - | - | - | - | - | - |
Configure your Enna Square
Finish: Polished Chrome
Switched
Choose if your product needs to have a switch or will be controlled remotely.
Power Connection Type
Choose the method of connecting this product to a power source.
Configure to select a product
