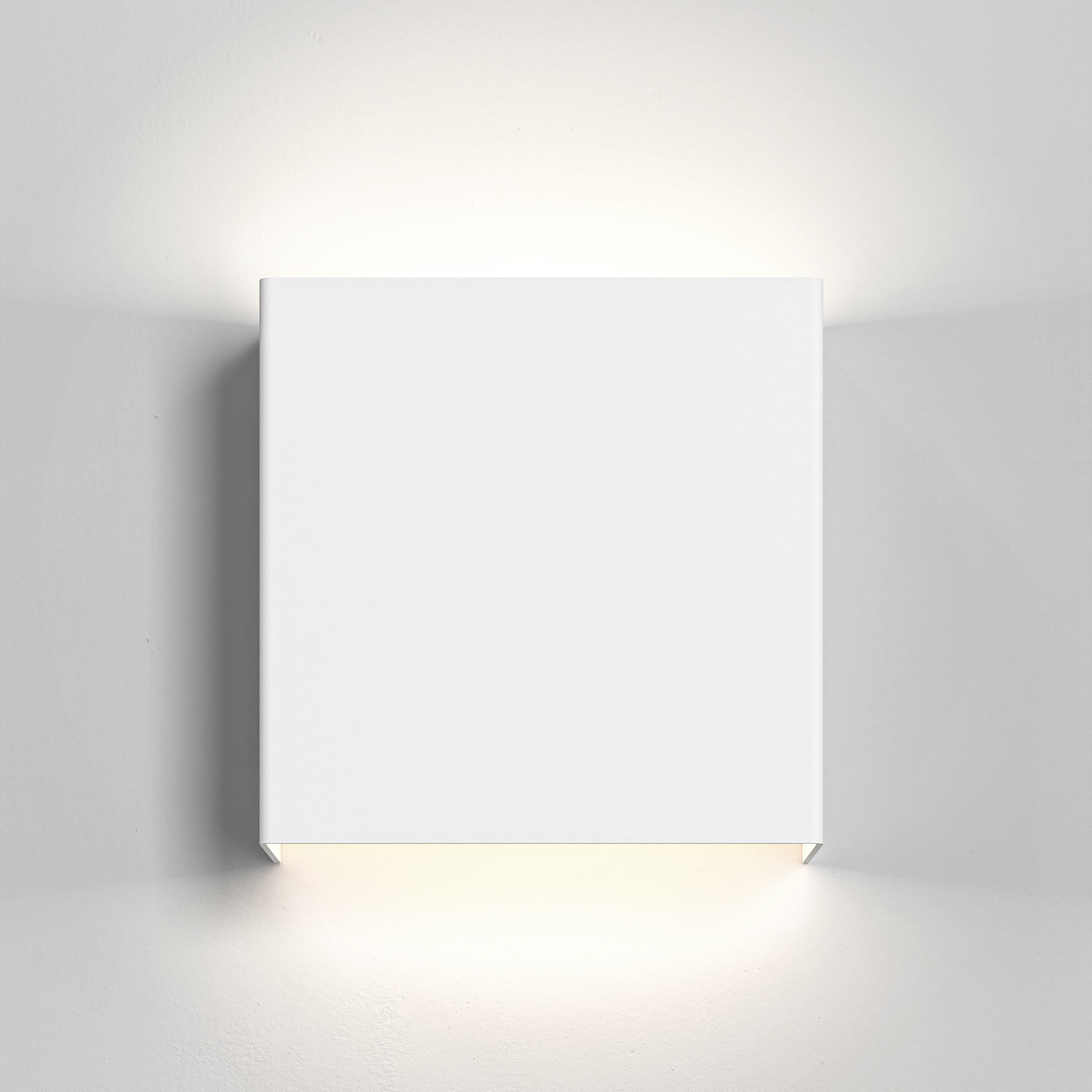

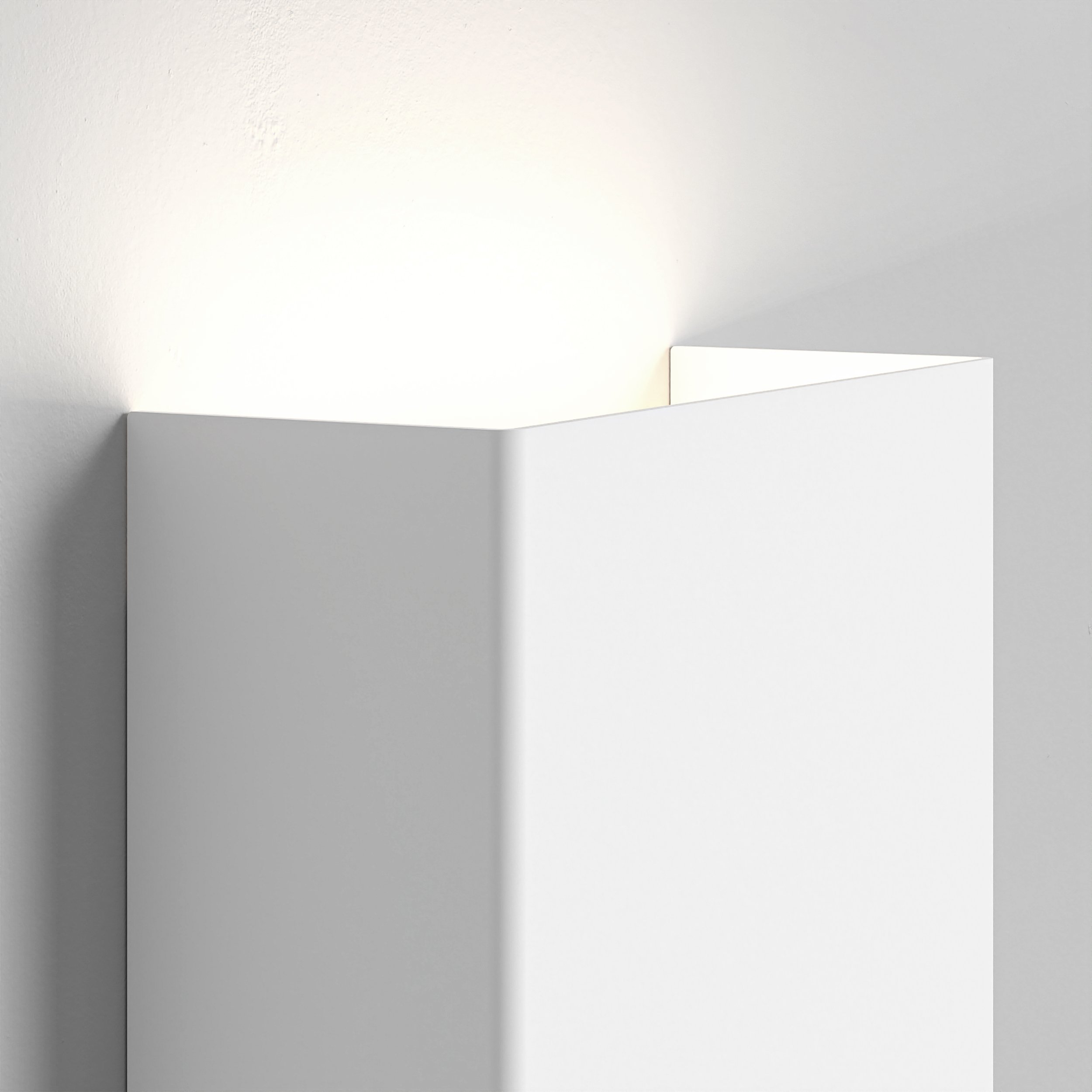

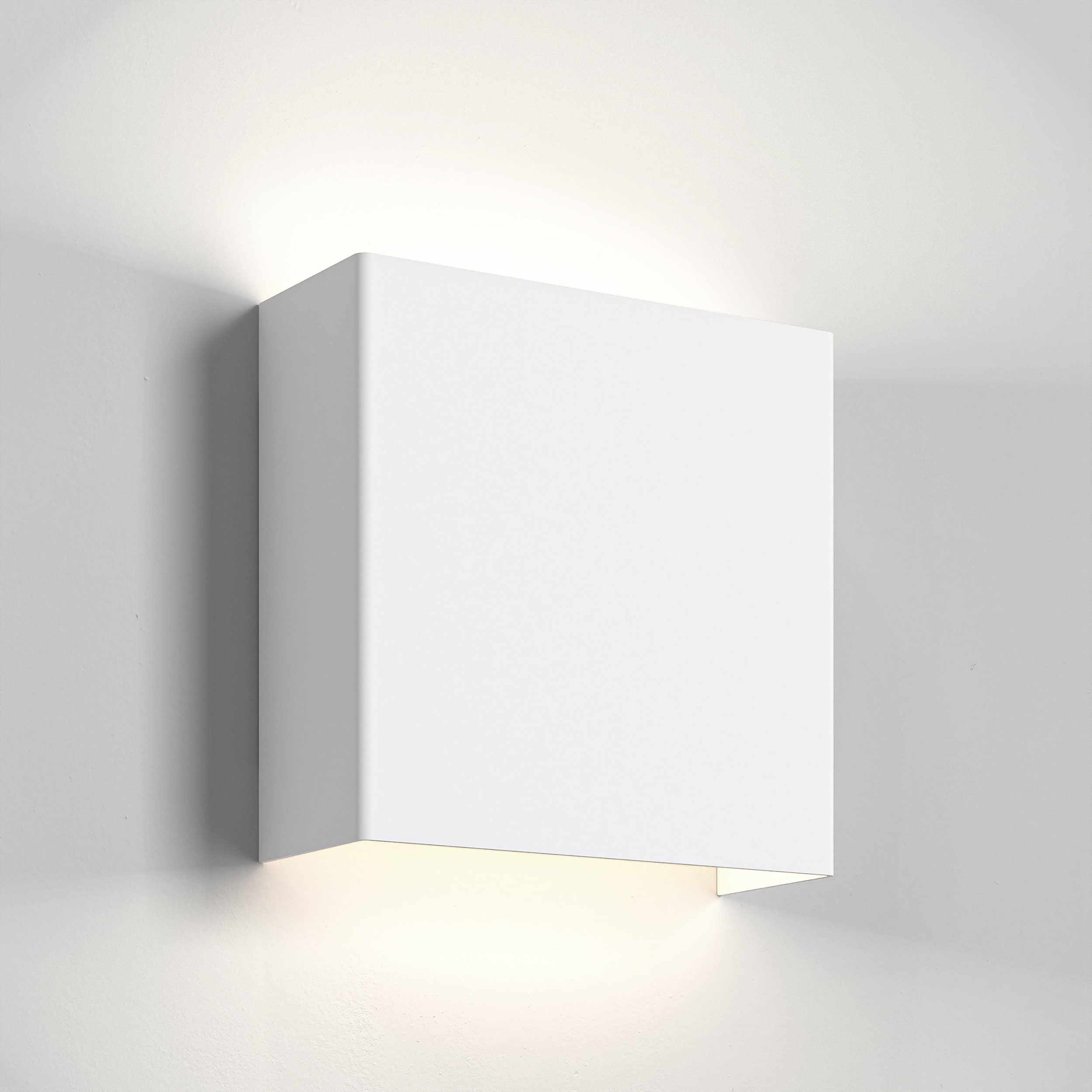

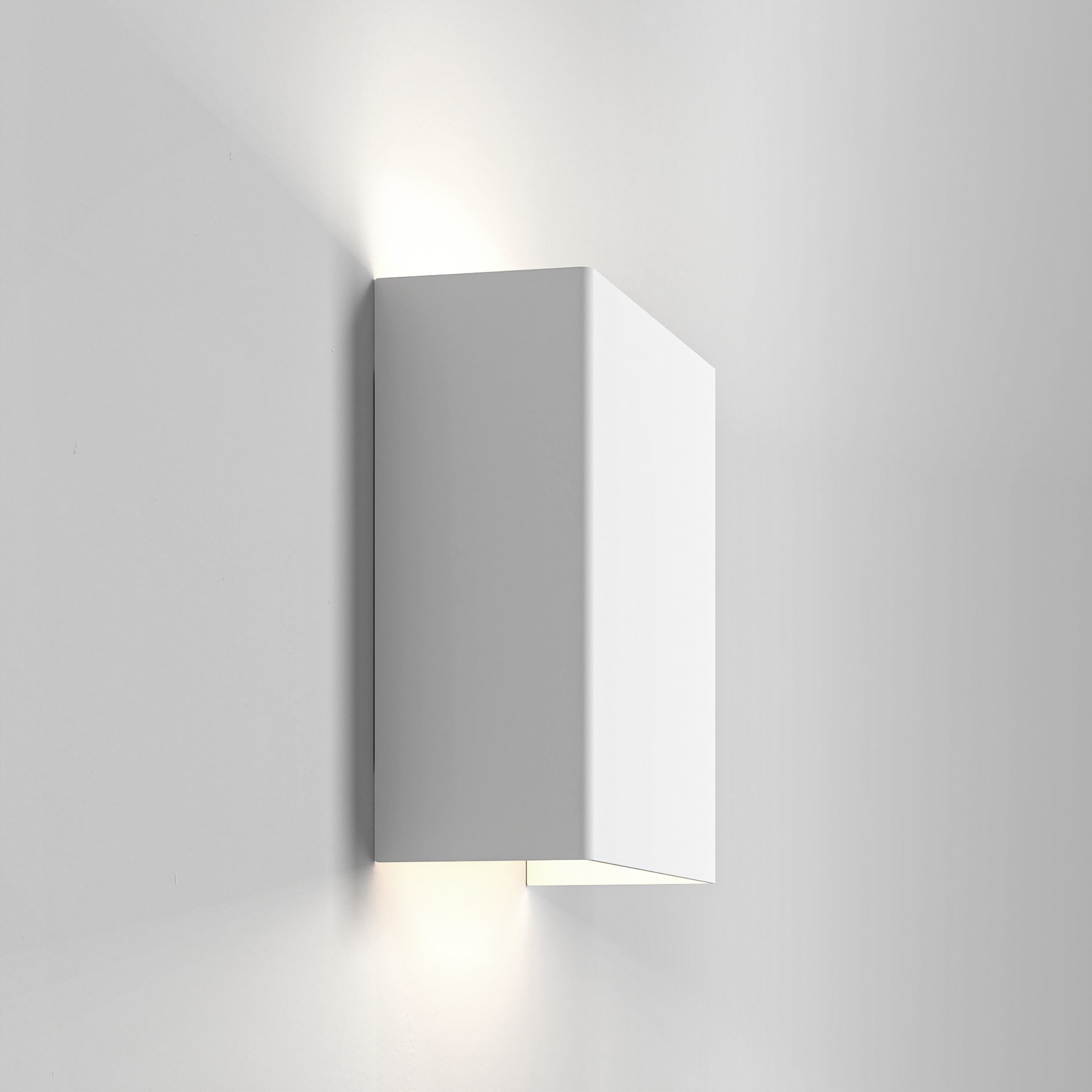

Tile 170 0-10V (1493004) in Matt White - Product Image 1

Tile 170 0-10V (1493004) in Matt White - Product Image 2

Tile 170 0-10V (1493004) in Matt White - Product Image 3

Tile 170 0-10V (1493004) in Matt White - Product Image 4

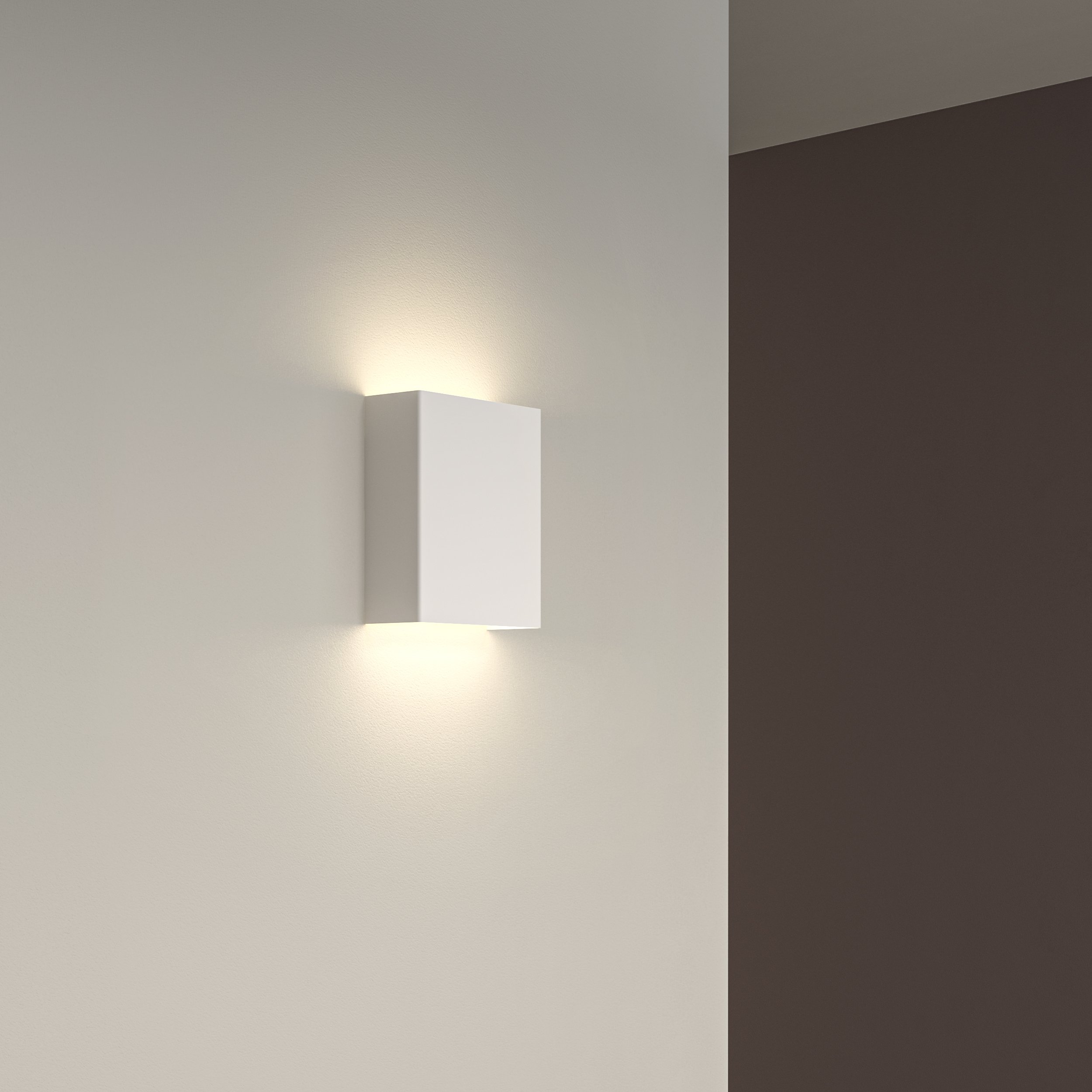

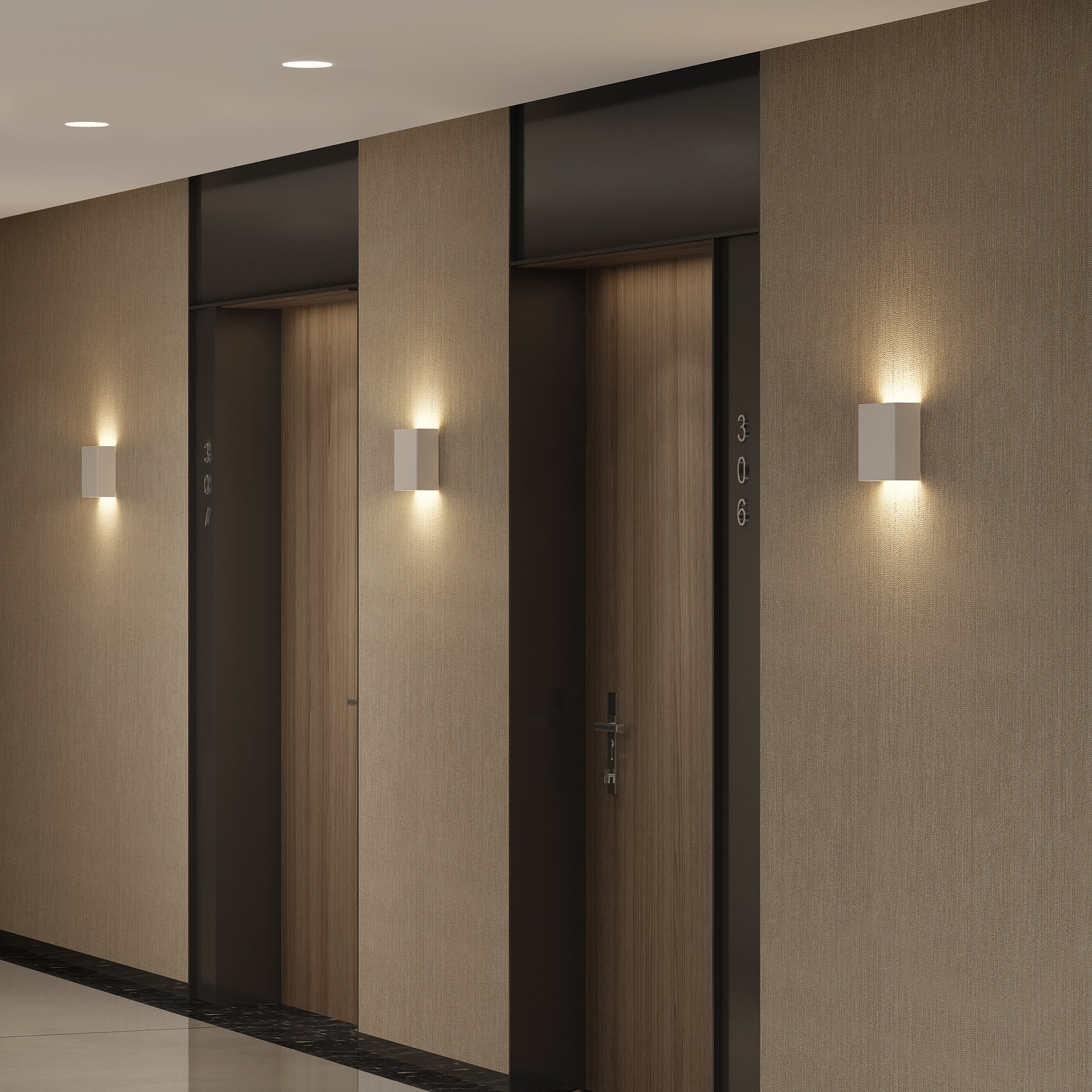

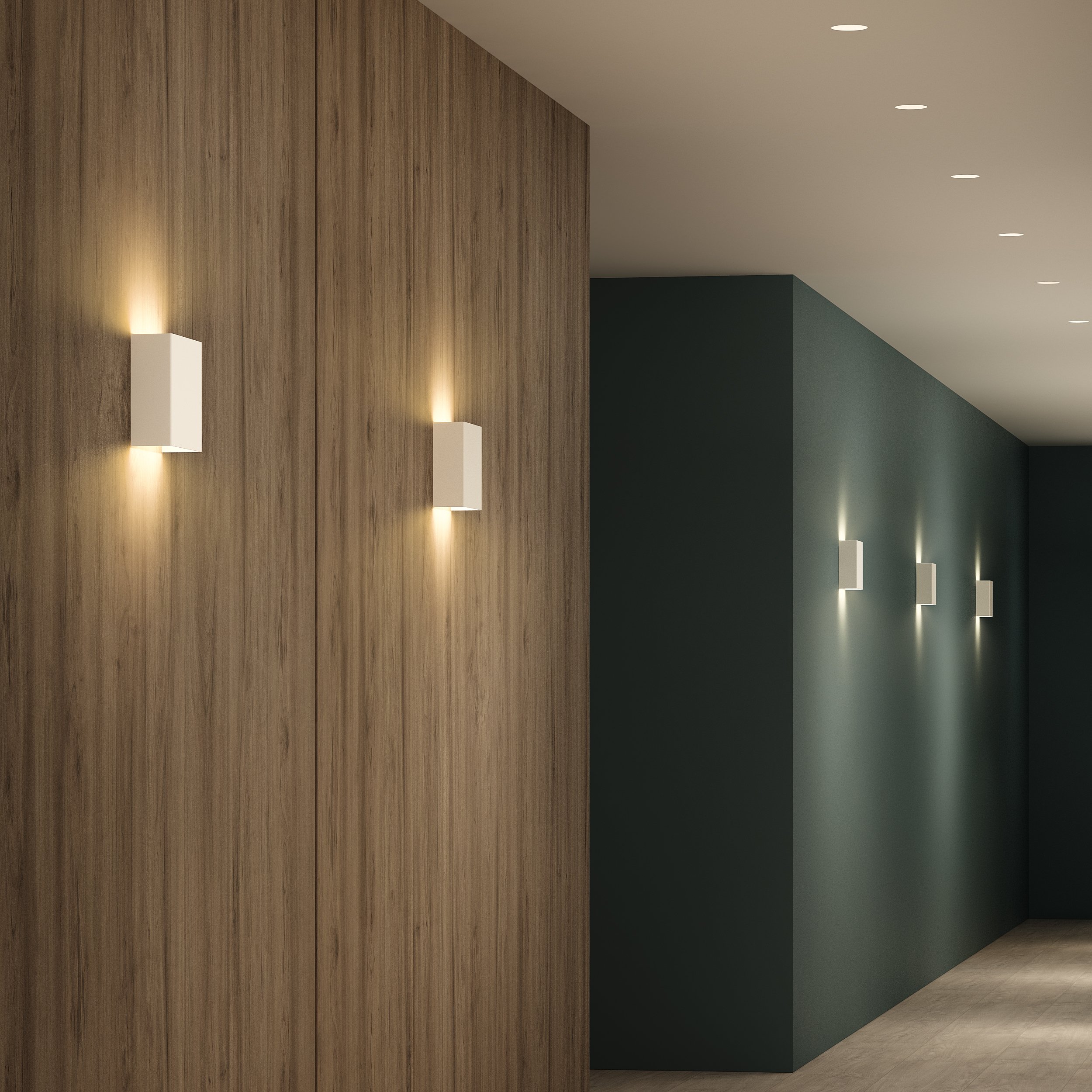

Tile 170 0-10V (1493004) in Matt White - Insitu Image 1

Tile 170 0-10V (1493004) in Matt White - Insitu Image 2

Tile 170 0-10V (1493004) in Matt White - Insitu Image 3

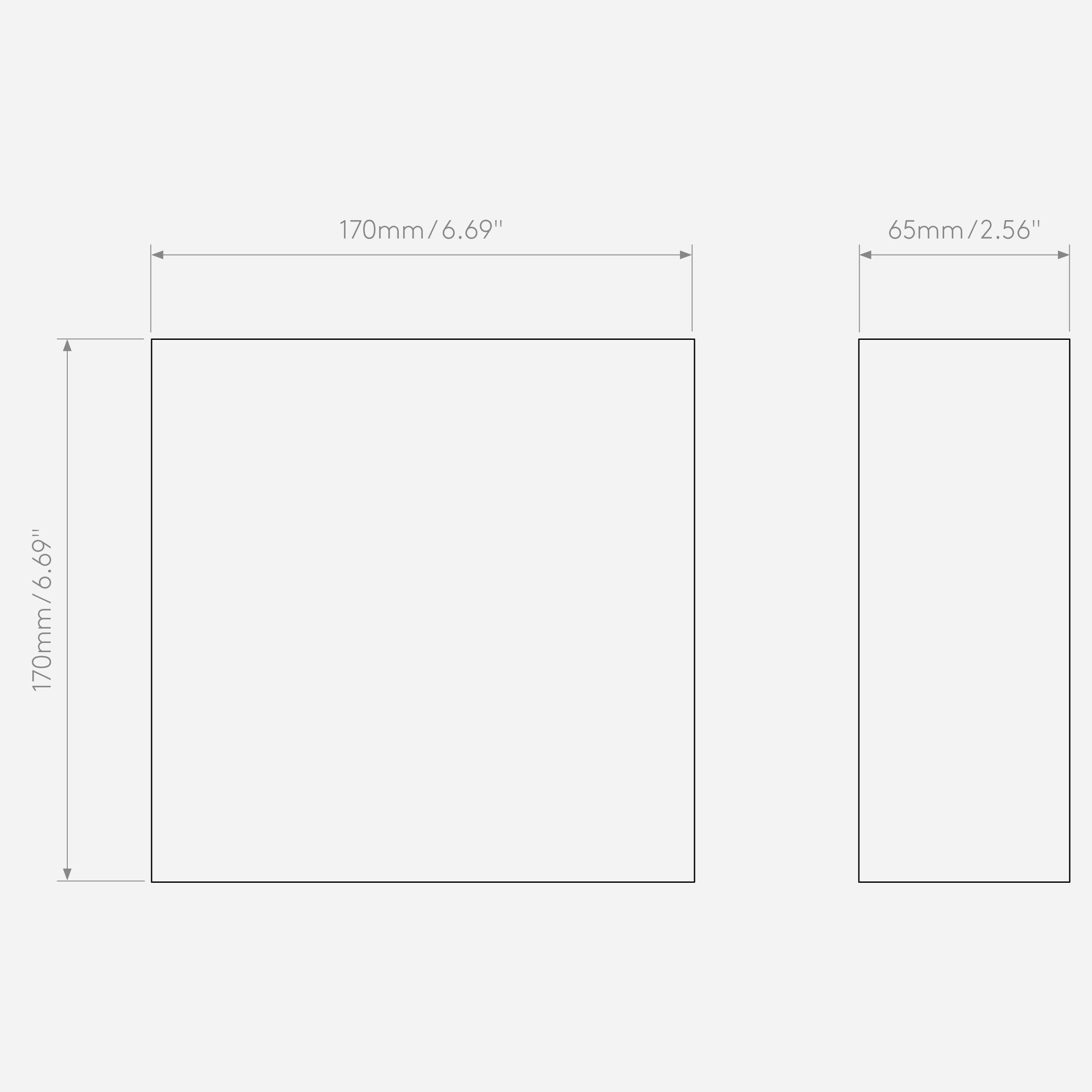

Tile 170 0-10V (1493004) in Matt White - Technical Drawing

Tile 170 0-10V

Matt White 1493004 Compare

Tile 170 is an architectural interior wall sconce featuring a durable metal construction, perfect for high-traffic corridors, hallways and lobby areas. Offering optimized, dimmable light distribution, Tile is ADA compliant, providing a lighting solution that is both practical and sophisticated.

Made to Order

Production orders are subject to minimum quantities and lead times. Please get in touch for more information and sample availability.

Full spec

Choose from 1 variants

0-10V

Type of Dimmer

Phase - Leading & Trailing Edge 0-10V

Project Enquiry

Lamp Required:	No
Lumen Output (LM):	822
Color Temperature (K):	2700
CRI:	90
Max Lamp Type & Wattage:	14.5W LED
Switched:	No
Dimmable:	Yes
Type Of Dimmer:	0-10V
Driver Required:	No
Certification / Class:	cULus (Class 1)
Power Connection Type:	Wired In
Location Rating:	Dry
Fitting Method:	4in Octagon Box, Stub Out Mount, 3x2in Switch Box
ADA Compliant:	Yes
Installation Orientation:	Wall Mount - Horizontal
