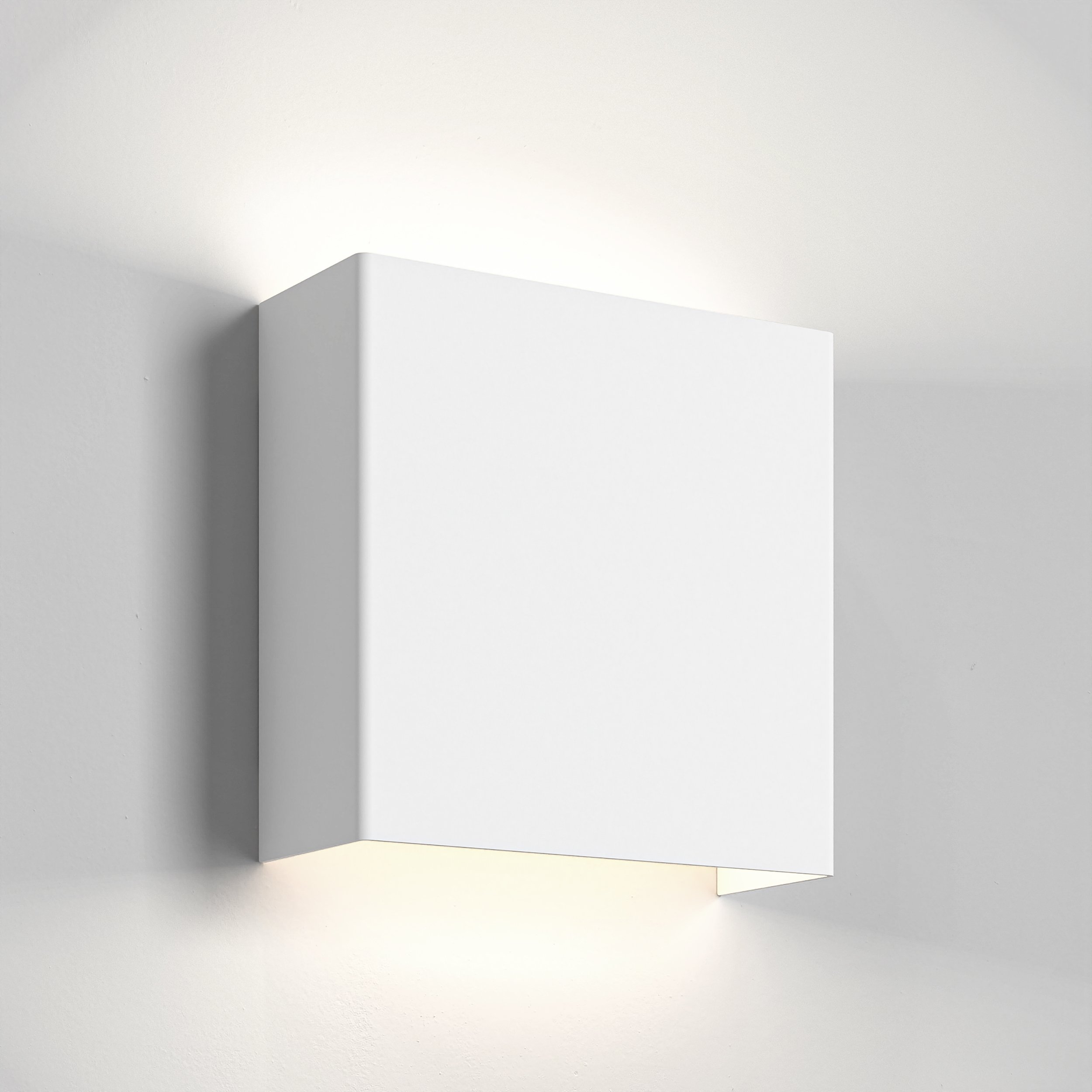

Tile 170 Phase (1493003) in Matt White - Product Image 1

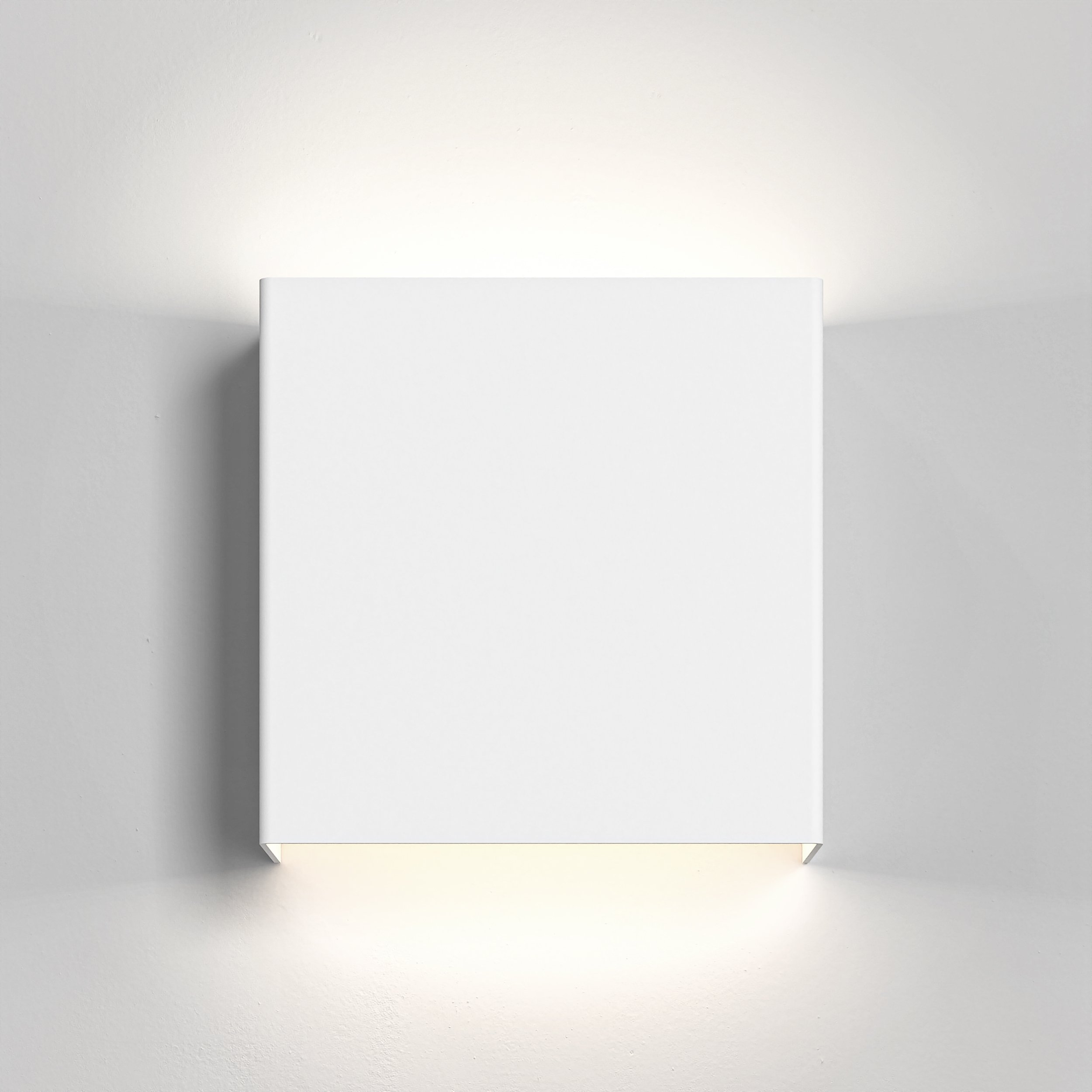

Tile 170 Phase (1493003) in Matt White - Product Image 2

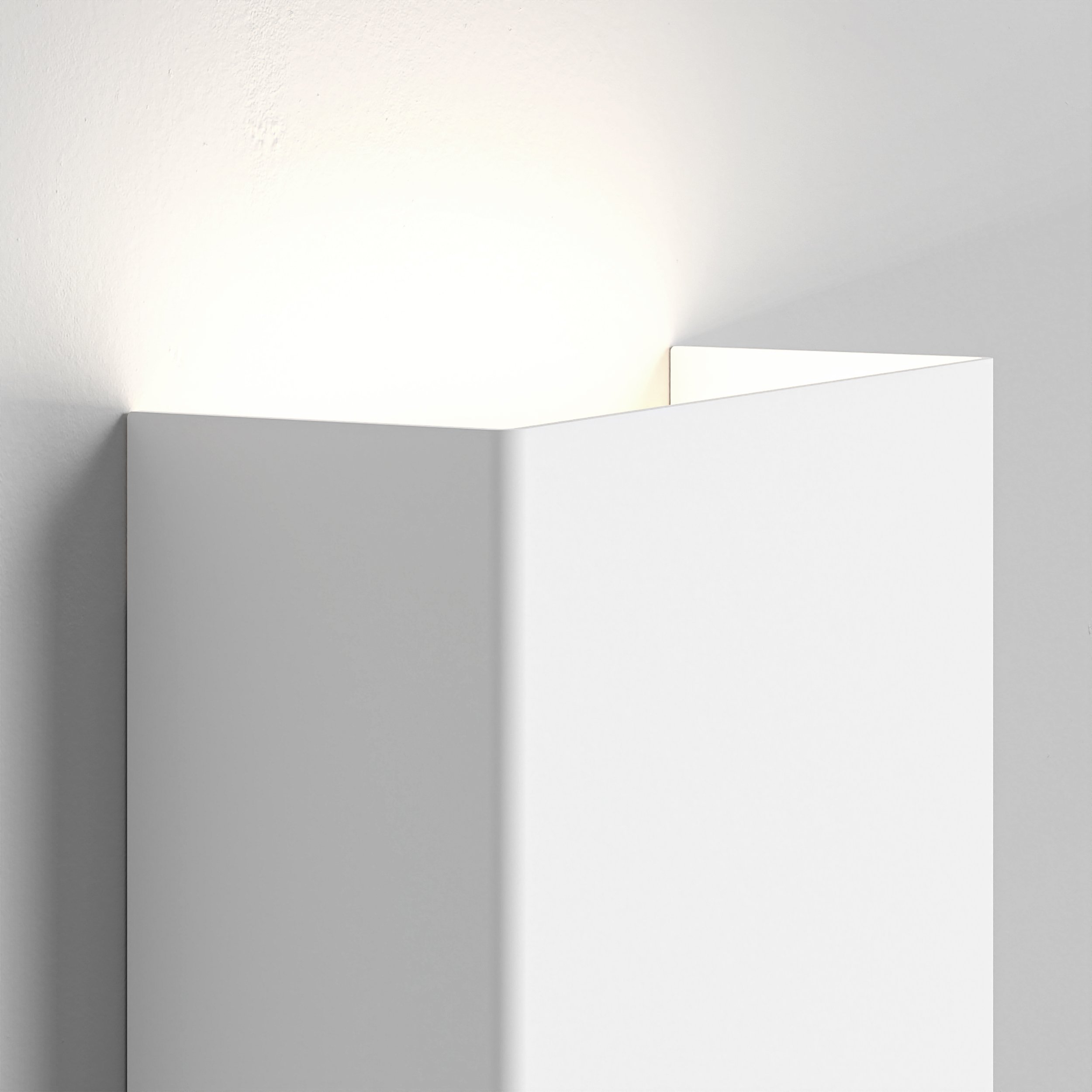

Tile 170 Phase (1493003) in Matt White - Product Image 3

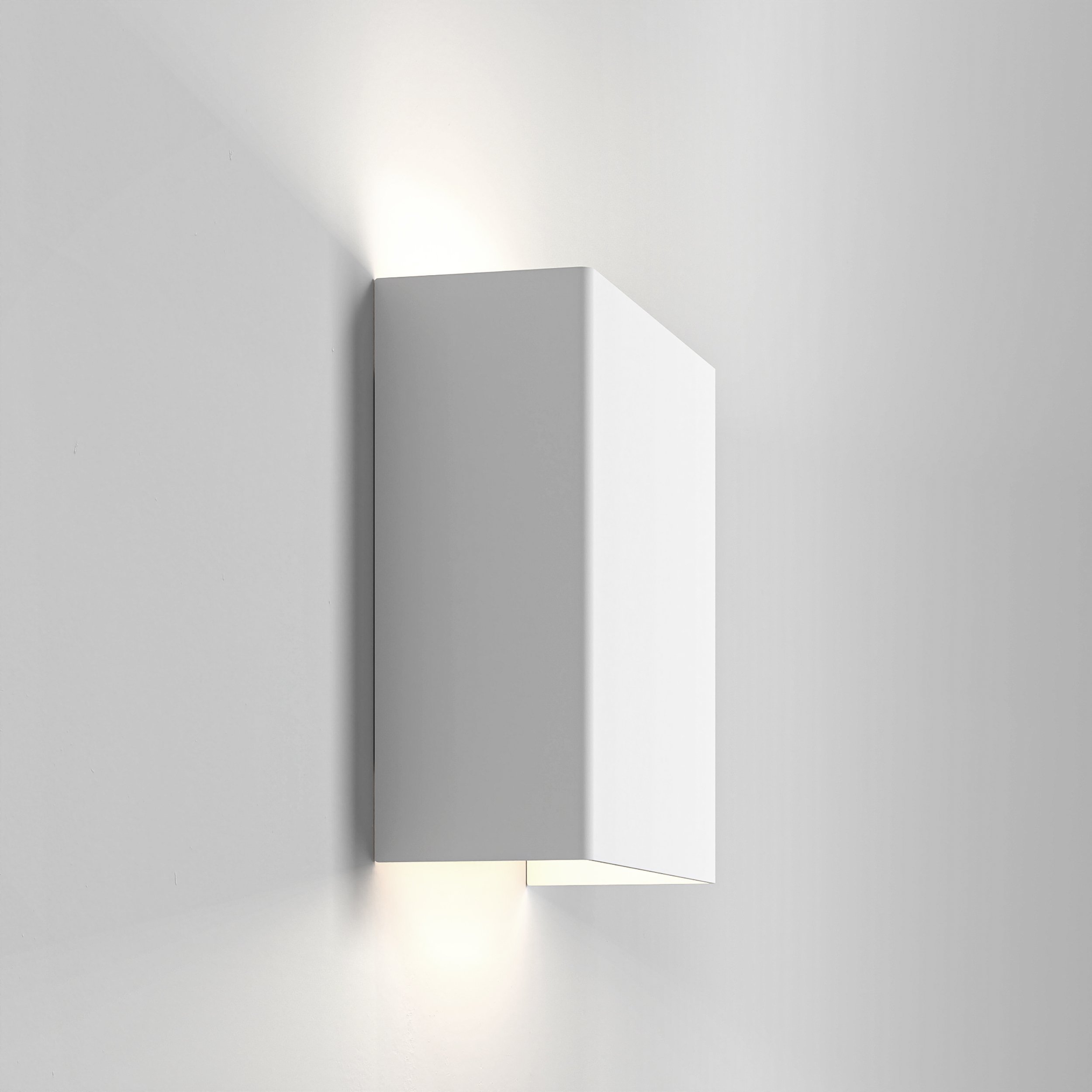

Tile 170 Phase (1493003) in Matt White - Product Image 4

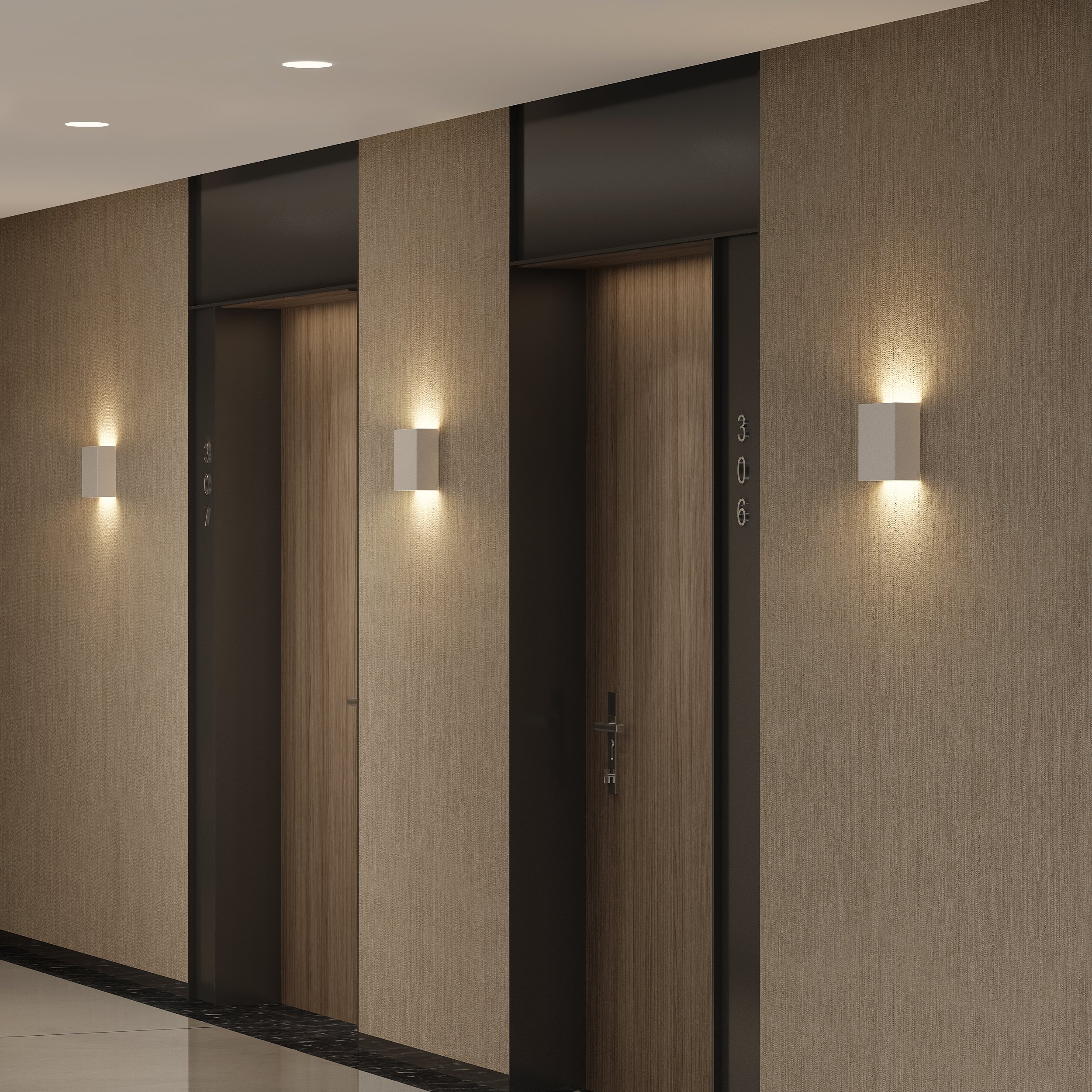

Tile 170 Phase (1493003) in Matt White - Insitu Image 1

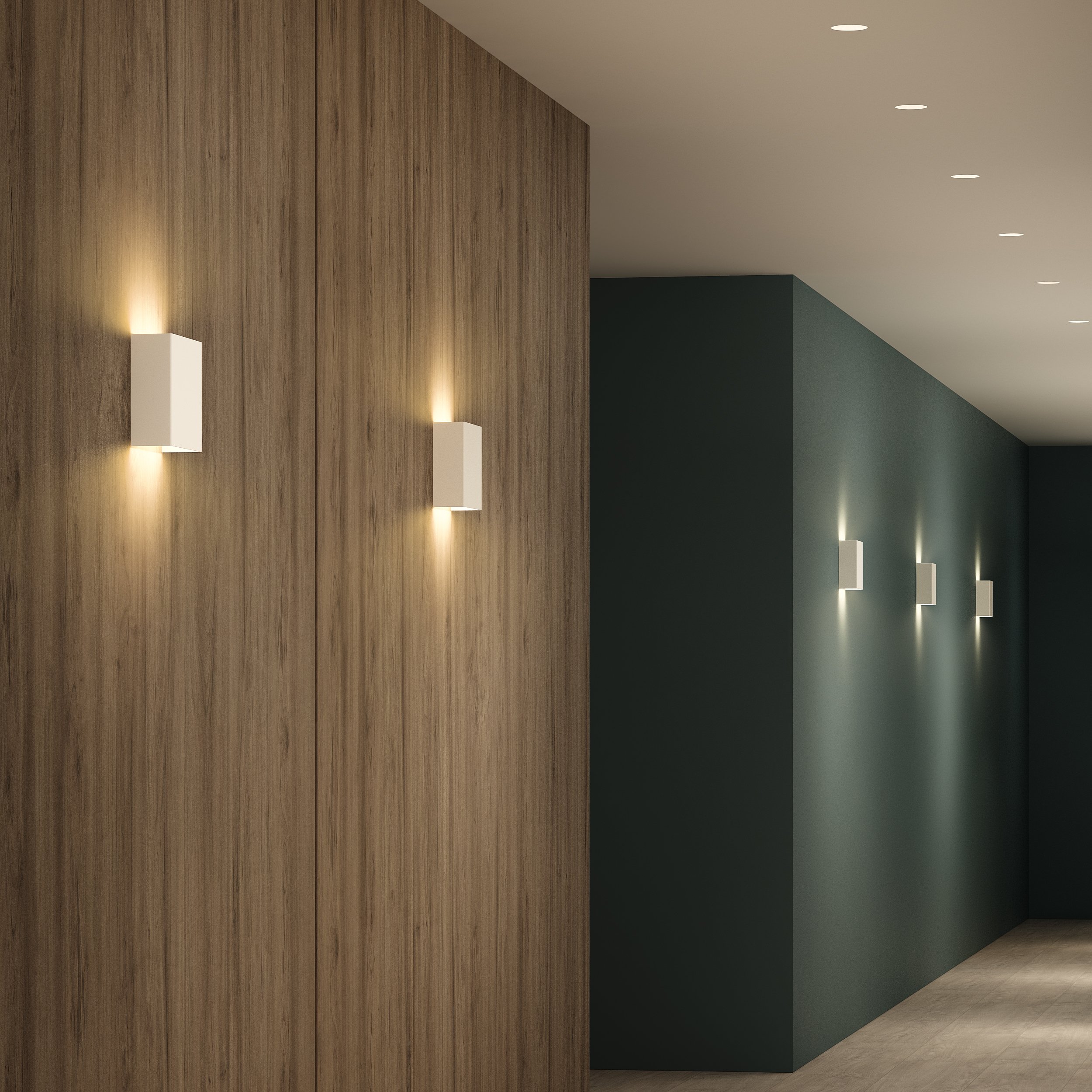

Tile 170 Phase (1493003) in Matt White - Insitu Image 2

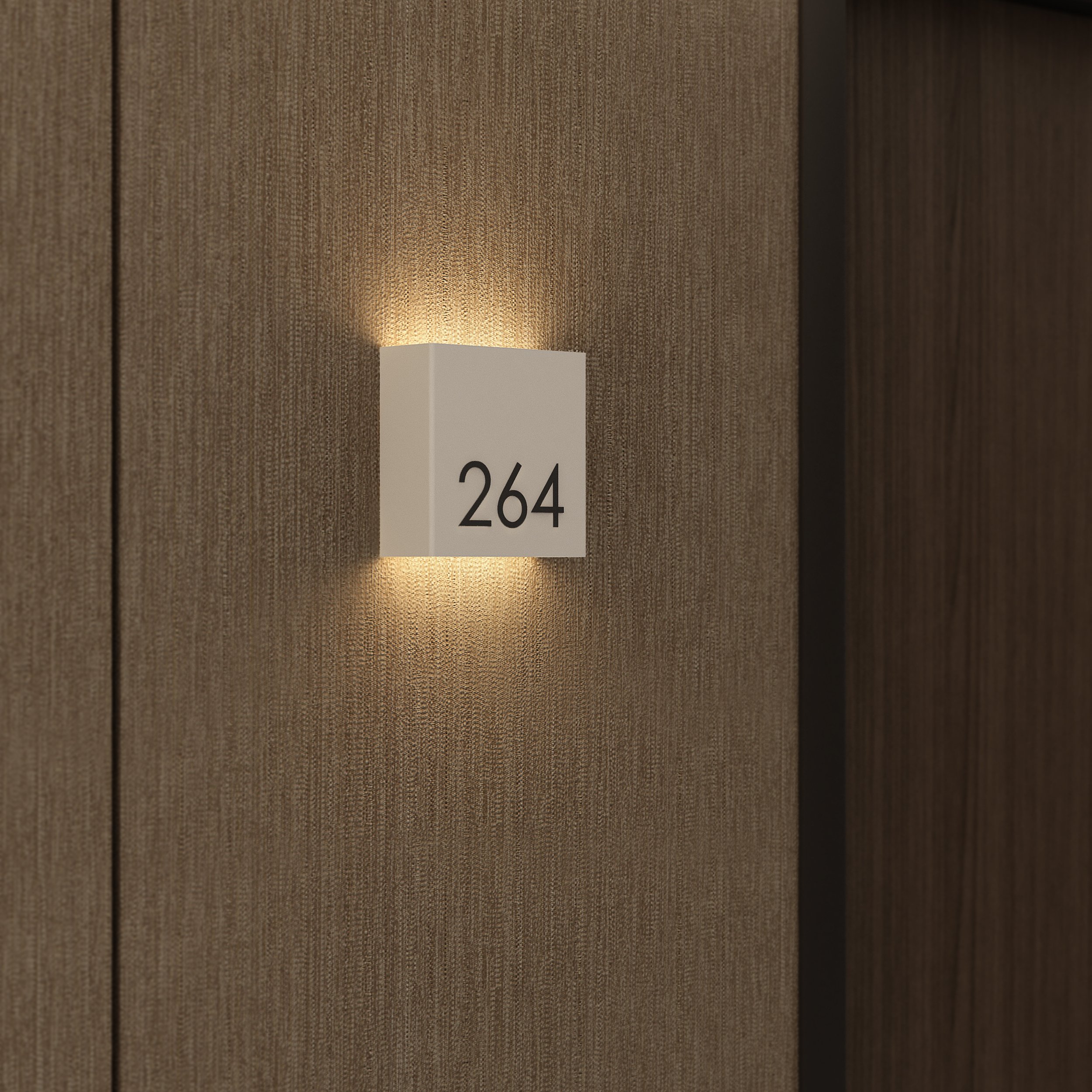

Tile 170 Phase (1493003) in Matt White - Insitu Image 3

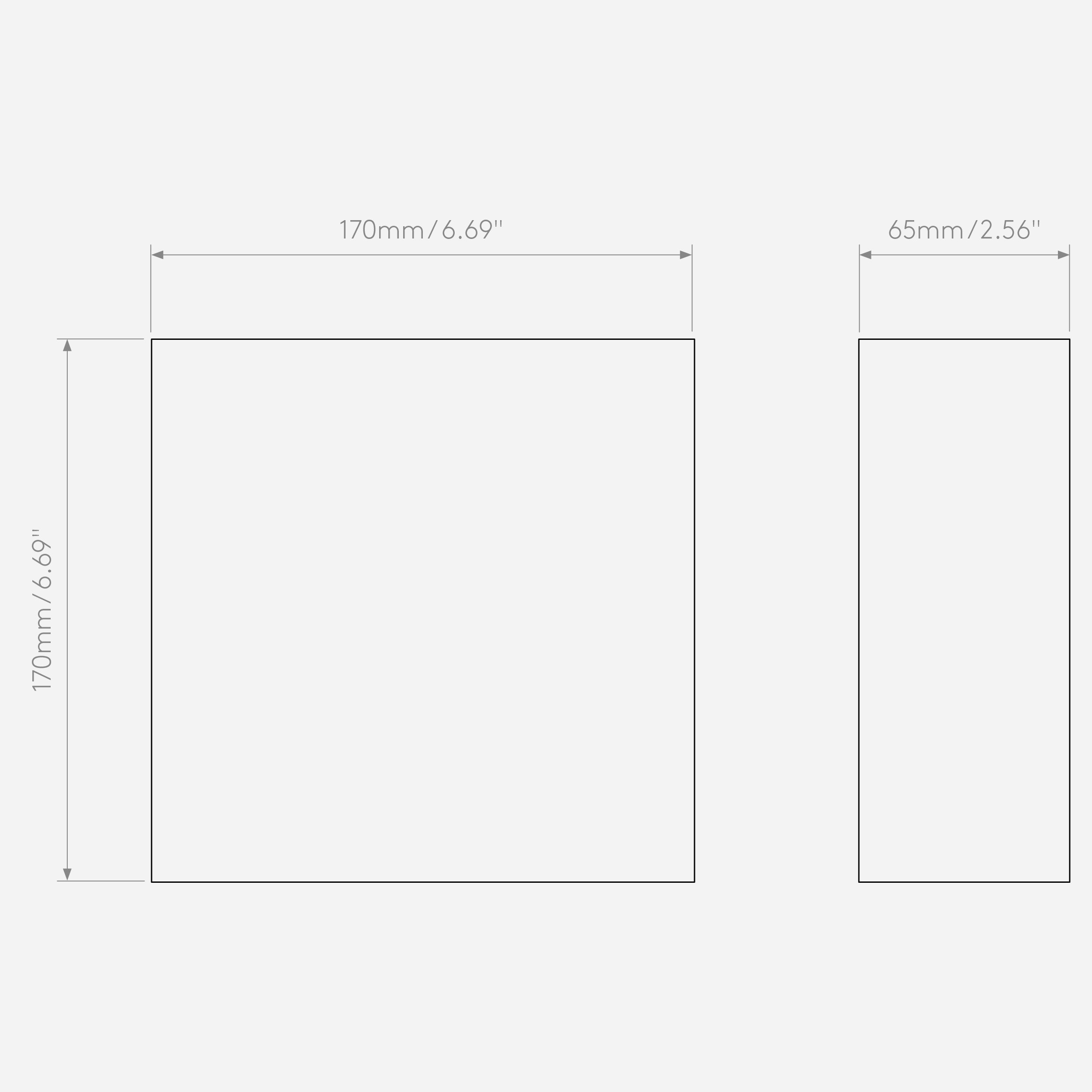

Tile 170 Phase (1493003) in Matt White - Technical Drawing

Tile 170 Phase

Matt White 1493003 Compare

Tile 170 is an architectural interior wall sconce featuring a durable metal construction, perfect for high-traffic corridors, hallways and lobby areas. Offering optimized, dimmable light distribution, Tile is ADA compliant, providing a lighting solution that is both practical and sophisticated.

Full spec

Choose from 1 variants

Phase - Leading & Trailing Edge

Type of Dimmer

Phase - Leading & Trailing Edge 0-10V

Project Enquiry Where to Buy

Lamp Required:	No
Lumen Output (LM):	865
Color Temperature (K):	2700
CRI:	90
Max Lamp Type & Wattage:	16W LED
Switched:	No
Dimmable:	Yes
Type Of Dimmer:	Phase - Leading & Trailing Edge
Driver Required:	No
Certification / Class:	cULus (Class 1)
Power Connection Type:	Wired In
Location Rating:	Dry
Fitting Method:	4in Octagon Box, Stub Out Mount, 3x2in Switch Box
ADA Compliant:	Yes
Installation Orientation:	Wall Mount - Horizontal
