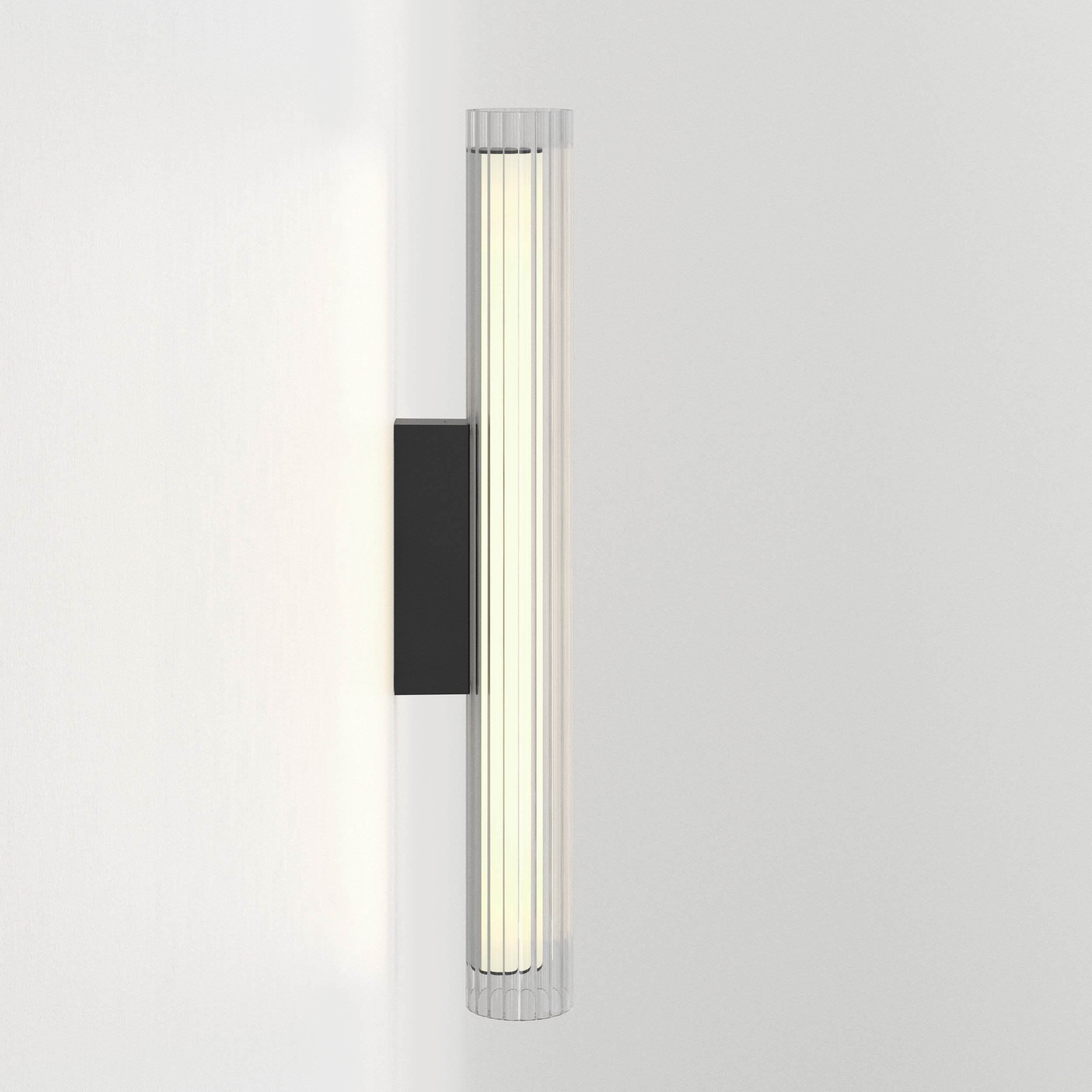

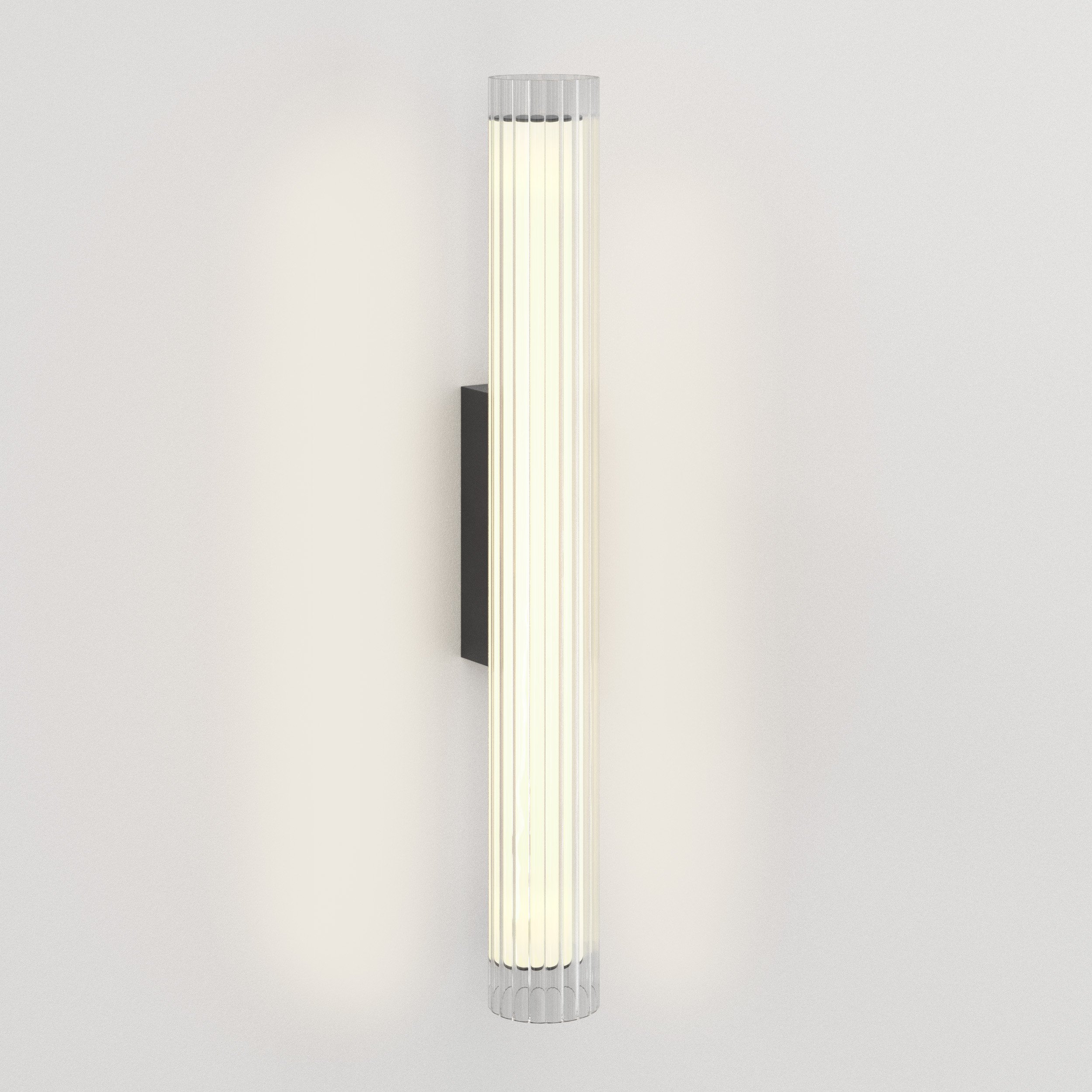

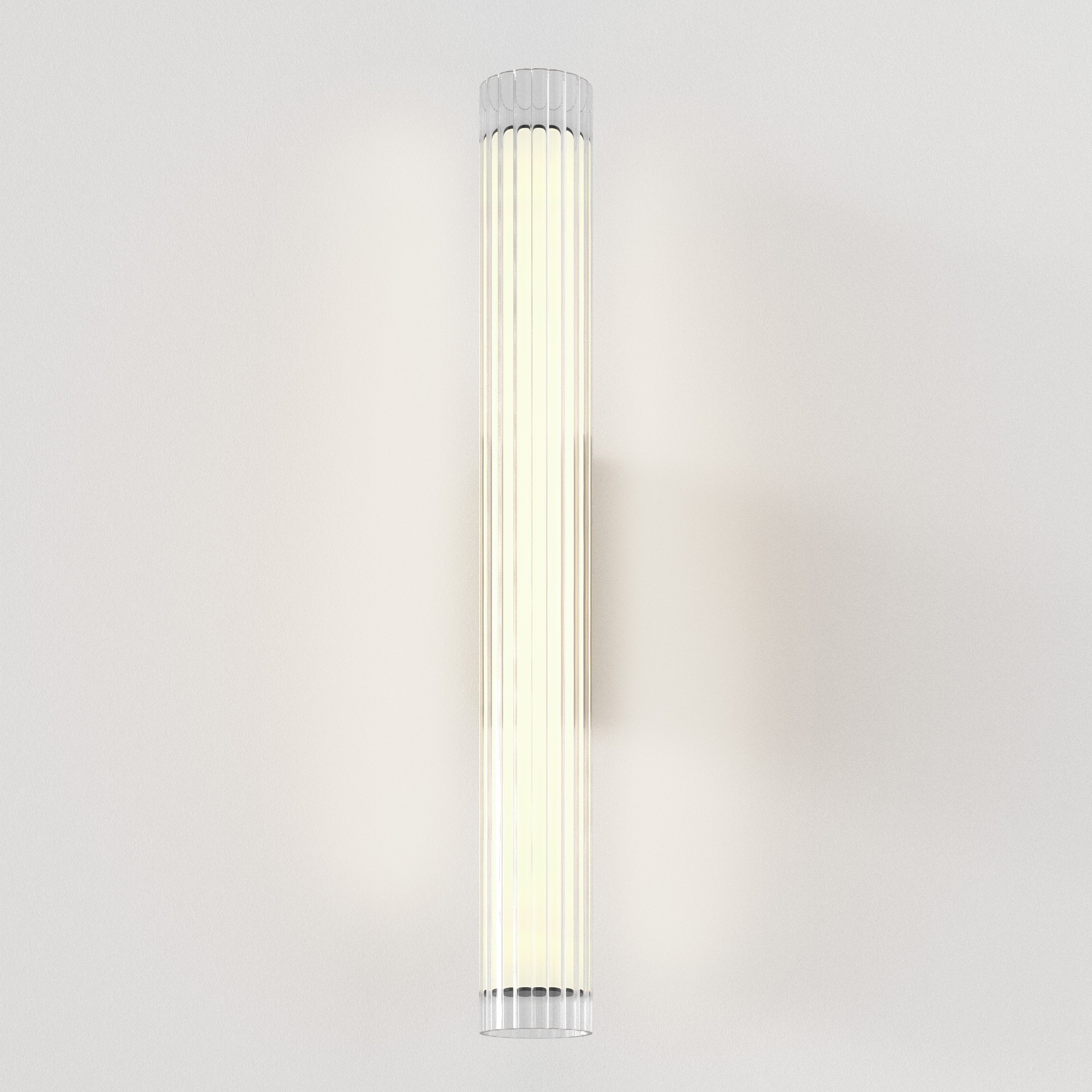

io 665 2700K Phase (1409045) in Matt Black - Product Image 1

io 665 2700K Phase (1409045) in Matt Black - Product Image 2

io 665 2700K Phase (1409045) in Matt Black - Product Image 3

io 665 2700K Phase (1409045) in Matt Black - Product Image 4

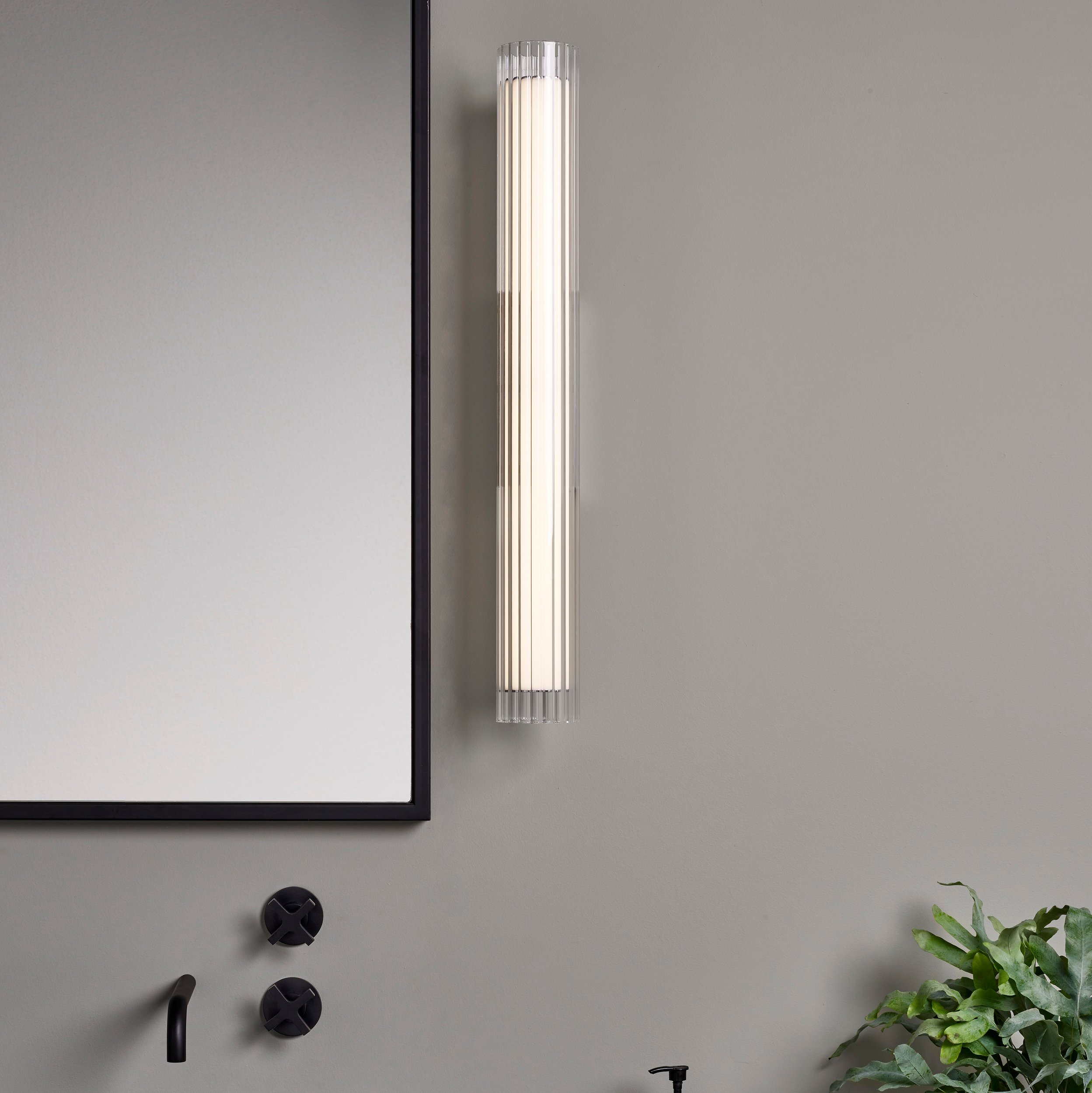

io 665 2700K Phase (1409045) in Matt Black - Insitu Image 1

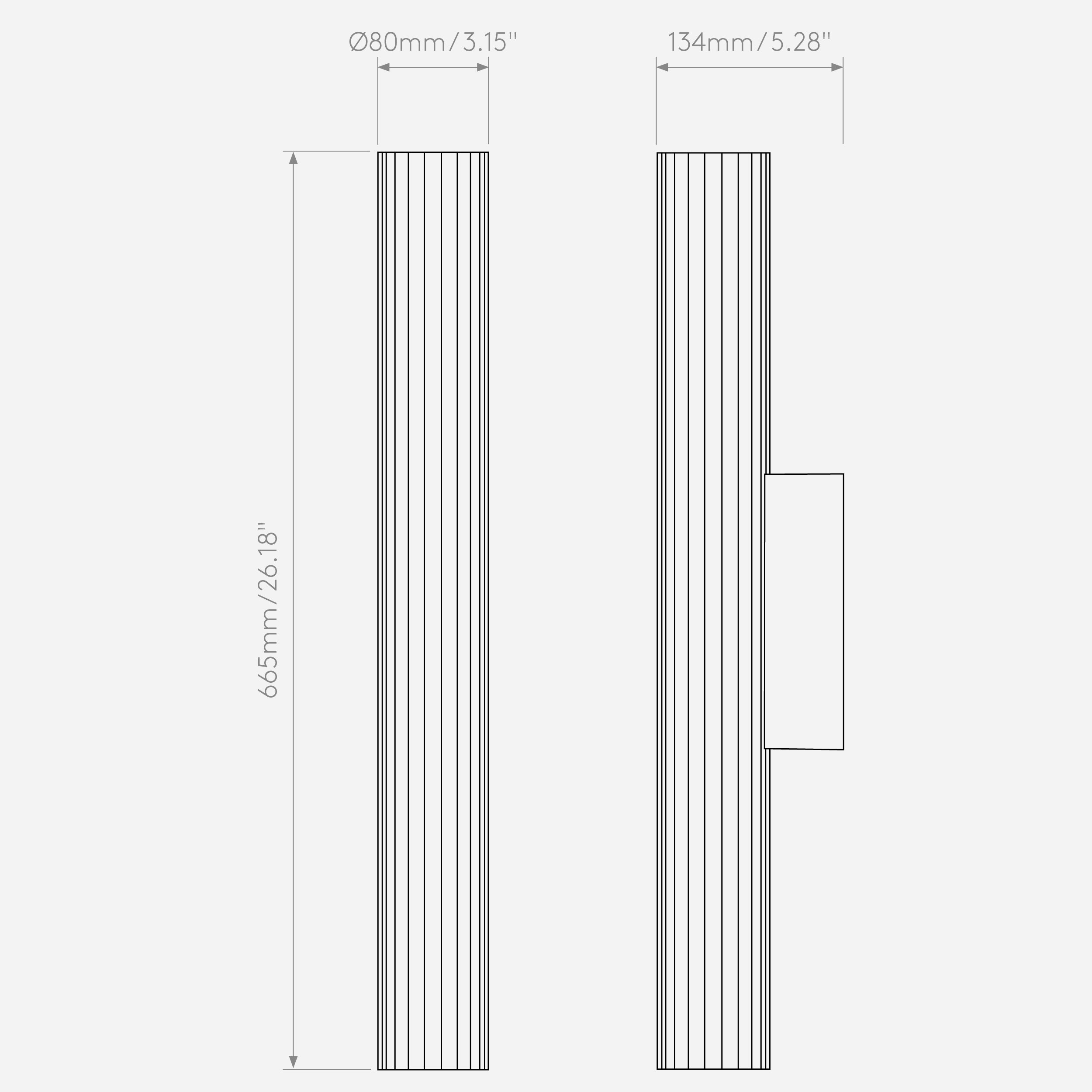

io 665 2700K Phase (1409045) in Matt Black - Technical Drawing

io 665 2700K Phase

Matt Black 1409045

Inspired by the fluted columns of Ancient Greek architecture, the io 665 2700K Phase bathroom wall light is a multifaceted glass cylinder finished with an understated bracket in matt black. Hand-crafted to the finest standards, it's dimmable and works as both task and ambient lighting.

2700K Phase - Leading & Trailing Edge

spec overview

Lamp Included 9.6W LED Damp Rated

full spec

Made to Order

Production orders are subject to minimum quantities and lead times. Please get in touch for more information and sample availability.

Get In Touch

Product Care and Cleaning Guide

To maintain this product to its best condition, please view our care and cleaning guide.

Specification

Lamp Required:	No
Lumen Output (LM):	699
Color Temperature (K):	2700
CRI:	90
Beam Angle (°):	162.1
Max Lamp Type & Wattage:	9.6W LED
Switched:	No
Type Of Dimmer:	Phase - Leading & Trailing Edge
Driver Required:	No
Primary Shade Finish:	Clear Glass
Certification / Class:	cULus (Class 1)
Power Connection Type:	Wired In
Location Rating:	Damp
Fitting Method:	Stub Out Mount Included Junction Box
ADA Compliant:	Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4
Title 24 Compliant:	Yes
IC Rated:	Yes
Installation Orientation:	Wall Mount
Recess Depth (in):	1.54
Cutout Shape:	Square
Cutout Length (in):	7.13
Cutout Width (in):	1.38

Downloads

Datasheet

Instructions

Photometric Data

BIM Files
