io 420 2700K Phase
Matt Black 1409032

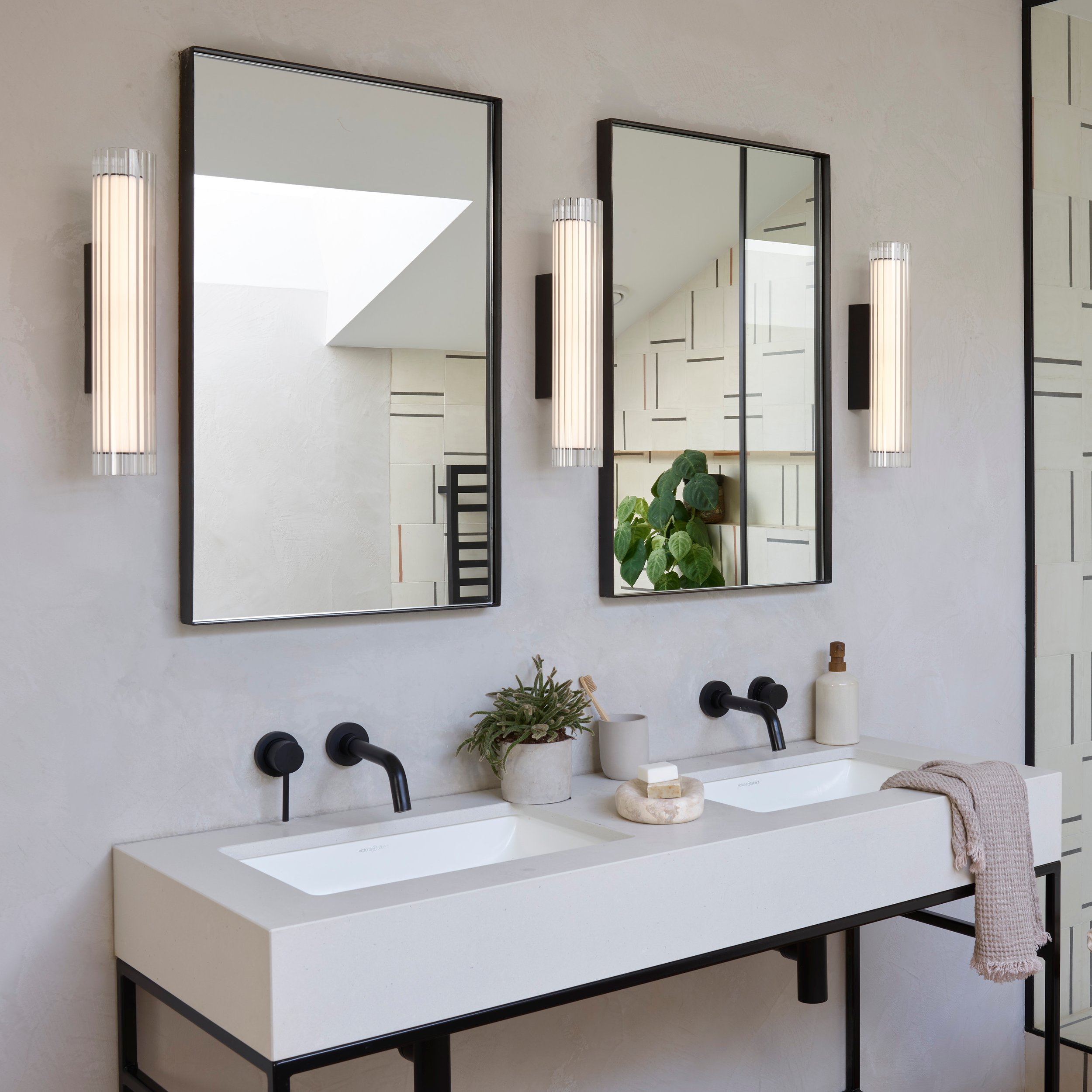

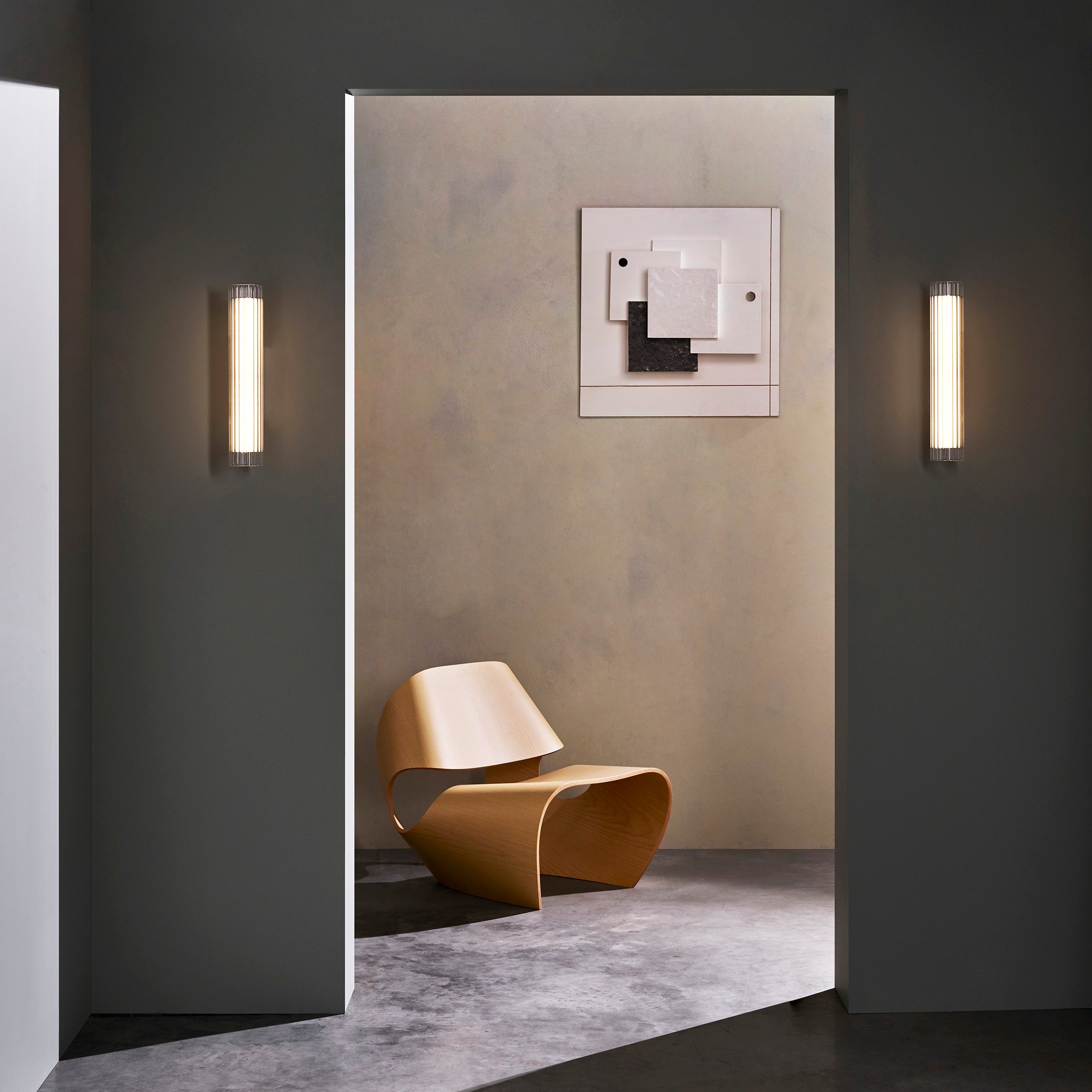

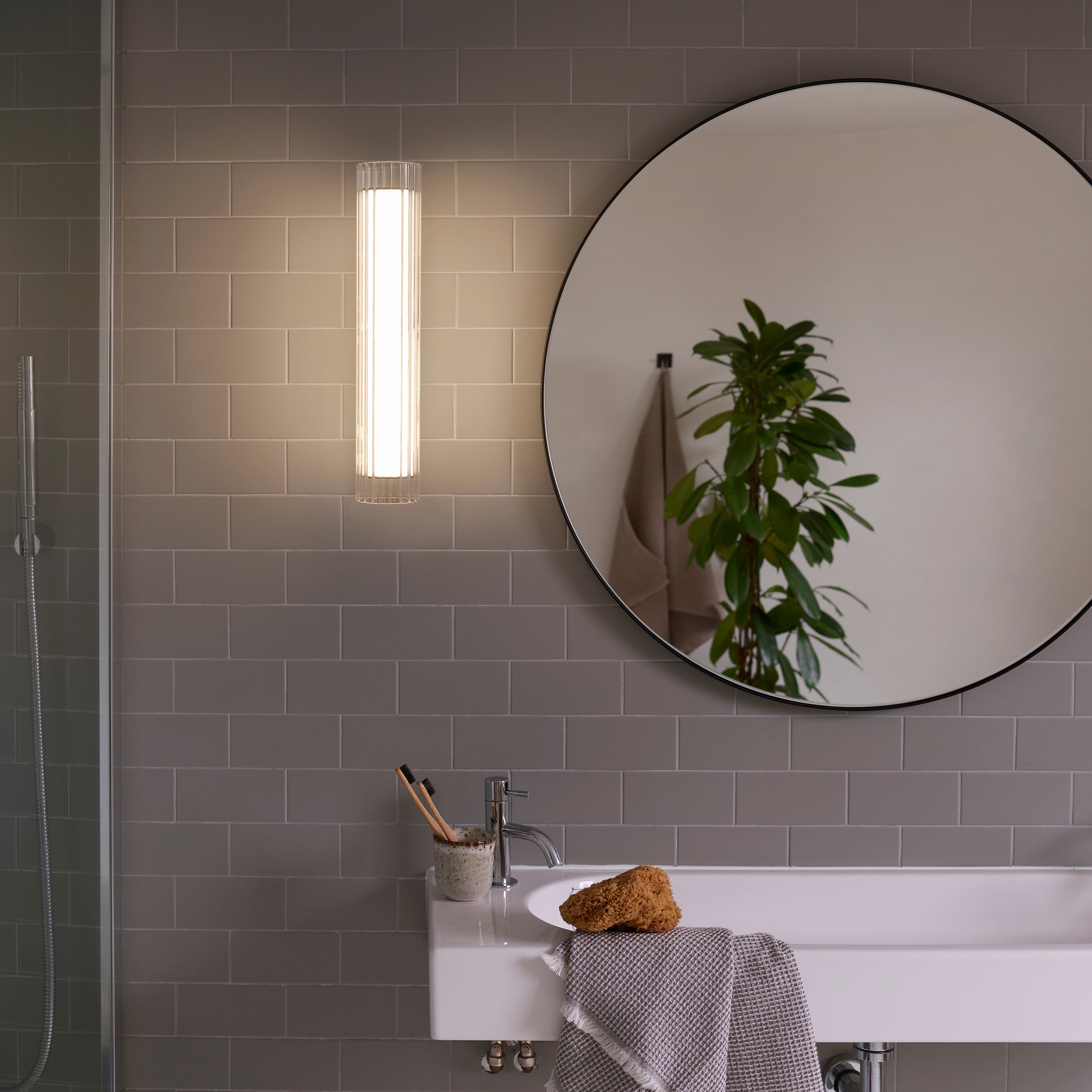

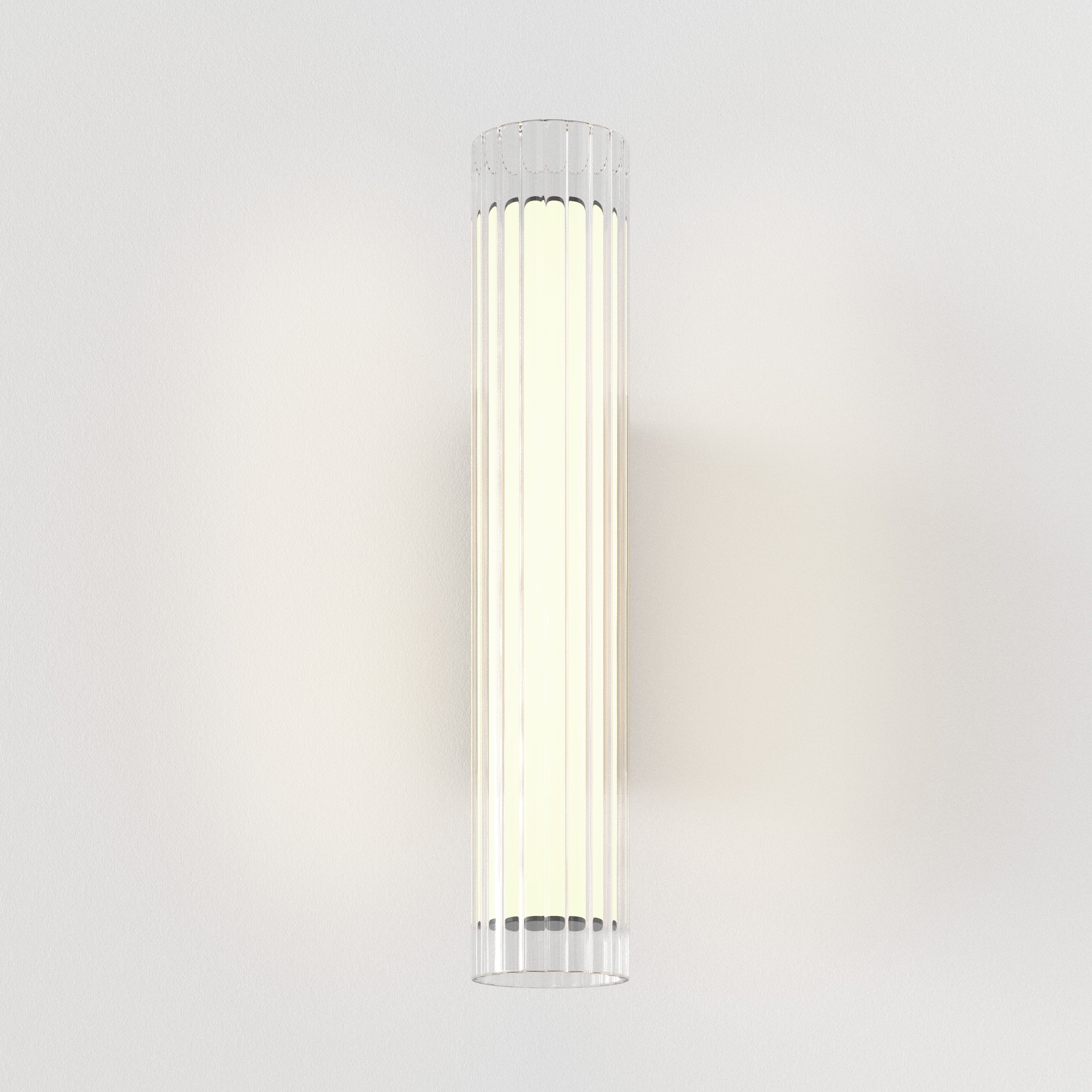

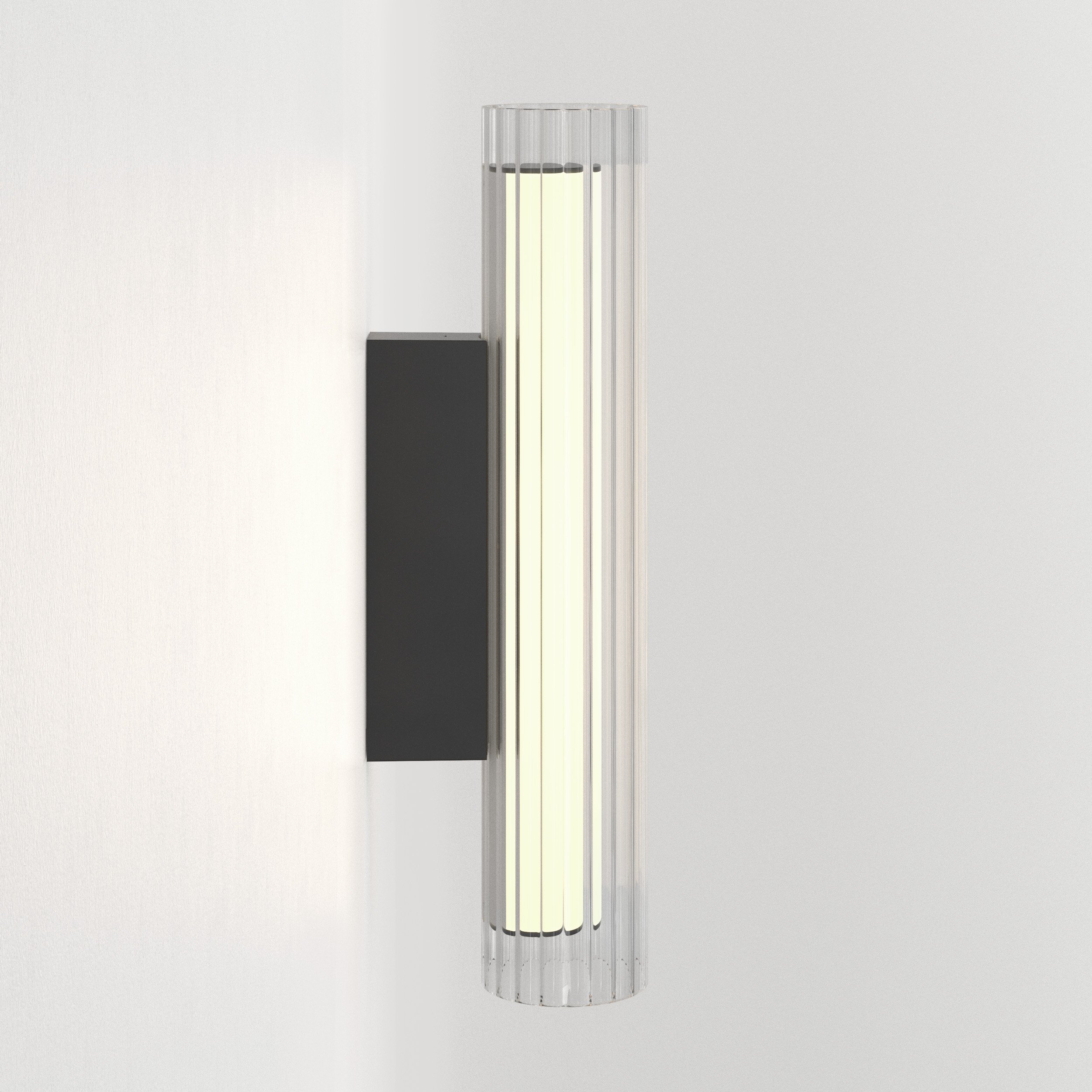

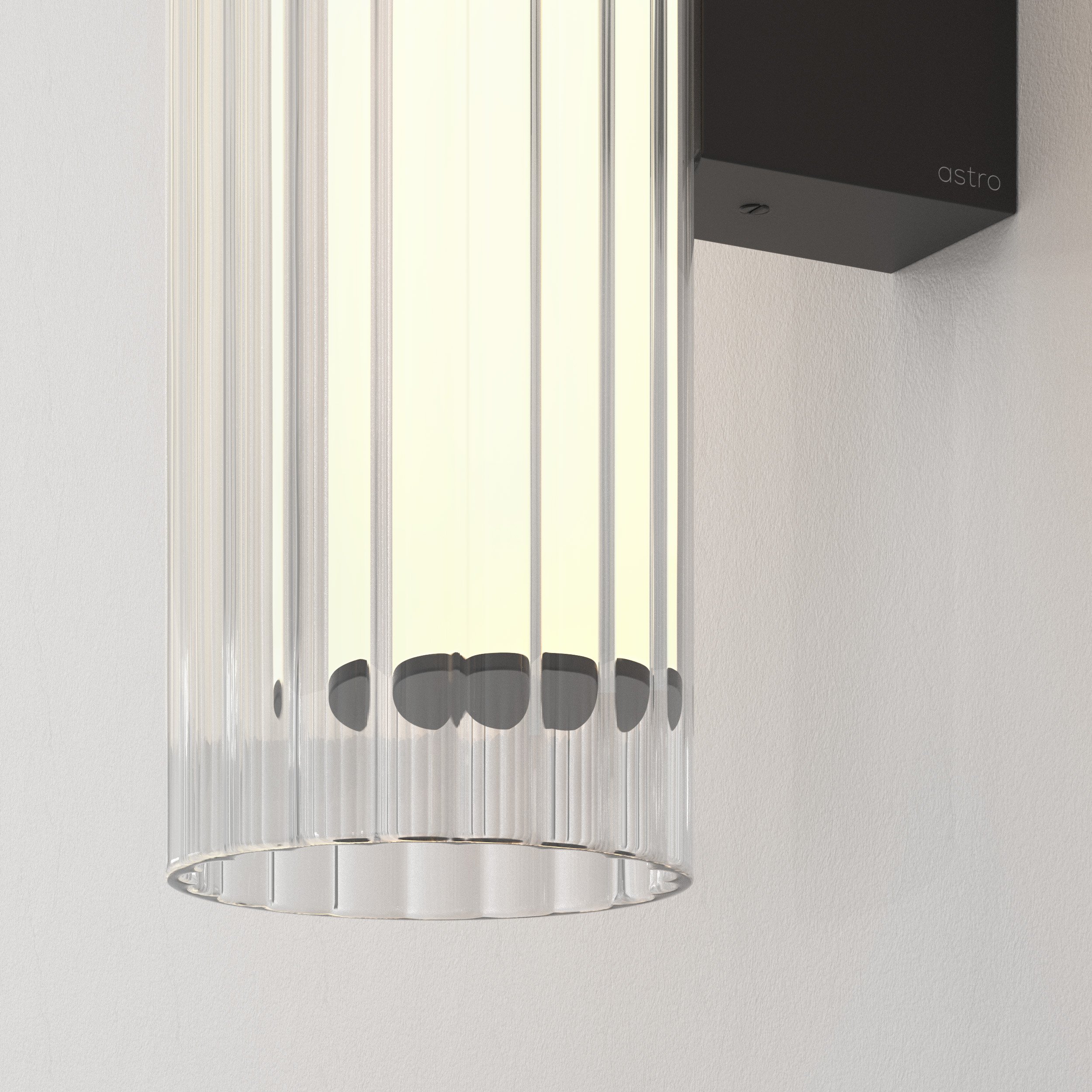

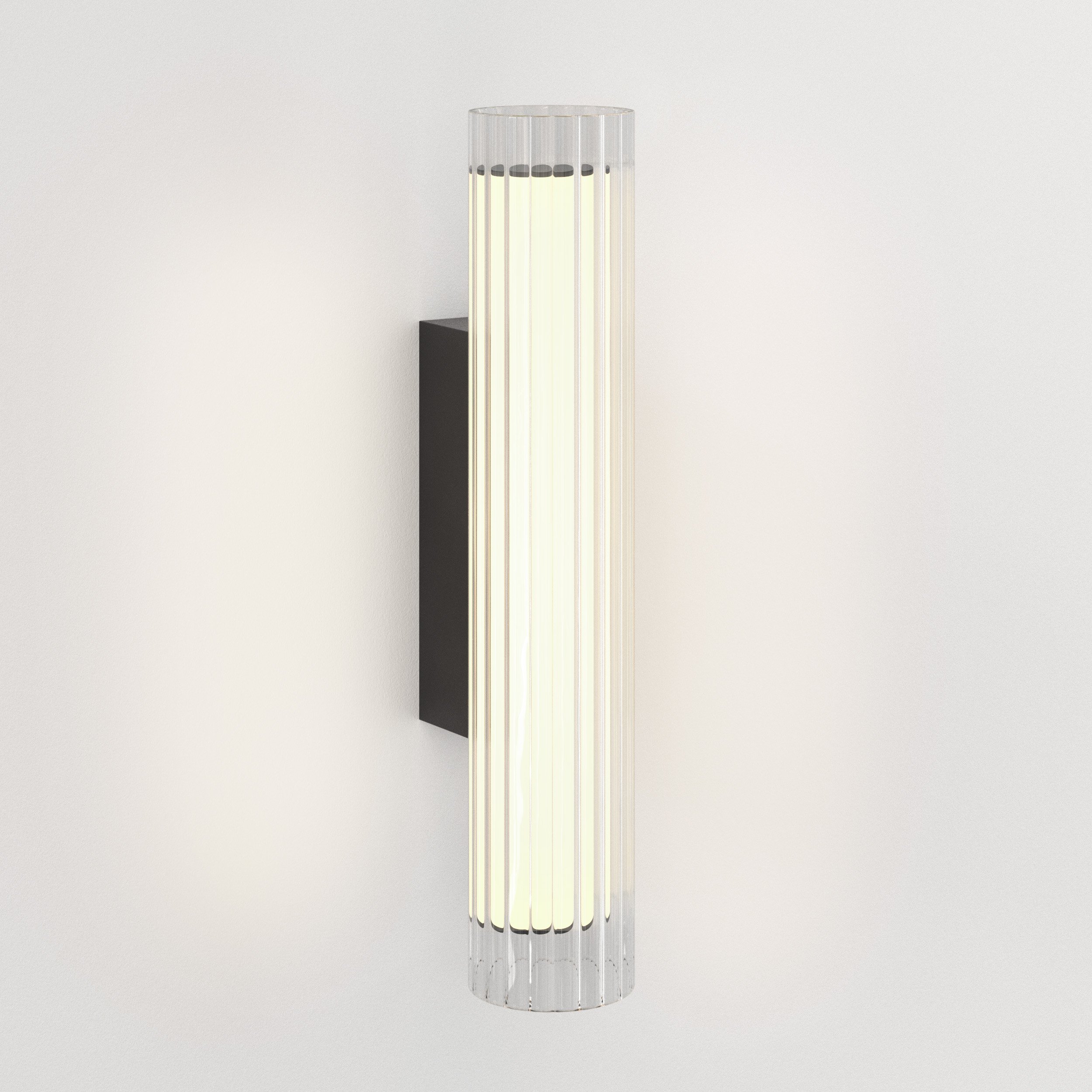

Inspired by the fluted columns of Ancient Greek architecture, the io 420 2700K Phase bathroom wall light is a multifaceted glass cylinder finished with an understated bracket in matt black. Hand-crafted to the finest standards, it's dimmable and works as both task and ambient lighting.
spec overview
Lamp Included 8W LED Damp RatedTo maintain this product to its best condition, please view our care and cleaning guide.
Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 470 |
| Color Temperature (K): | 2700 |
| CRI: | 90 |
| Beam Angle (°): | 157.1 |
| Max Lamp Type & Wattage: | 8W LED |
| Switched: | No |
| Type Of Dimmer: | Phase - Leading & Trailing Edge |
| Driver Required: | No |
| Primary Shade Finish: | Clear Glass |
| Certification / Class: | cULus (Class 1) |
| Power Connection Type: | Wired In |
| Location Rating: | Damp |
| Fitting Method: |
Stub Out Mount Included Junction Box |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4 |
| Title 24 Compliant: | Yes |
| IC Rated: | Yes |
| Installation Orientation: | Wall Mount |
| Recess Depth (in): | 1.54 |
| Cutout Shape: | Square |
| Cutout Length (in): | 7.13 |
| Cutout Width (in): | 1.38 |
Downloads
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1409018 |
|
21W LED | 3000K | 80 | 2187 | Dry | Wired In | Phase - Leading & Trailing Edge | - | - | 165.5 | - | - | - |
| 1409016 |
|
21W LED | 3000K | 80 | 2187 | Dry | Wired In | Phase - Leading & Trailing Edge | - | - | 165.5 | - | - | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1409043 |
|
7.4W LED | 2700K | 90 | 605 | Damp | Wired In | Phase & 0-10V | - | - | 161.7 | - | - | - |
| 1409051 |
|
7.4W LED | 2700K | 90 | 605 | Damp | Wired In | Phase & 0-10V | - | - | 161.7 | - | - | - |
| 1409044 |
|
7.4W LED | 2700K | 90 | 605 | Damp | Wired In | Phase & 0-10V | - | - | 161.7 | - | - | - |
| 1409019 |
|
7.4W LED | 3000K | 90 | 653 | Damp | Wired In | Phase & 0-10V | - | - | 162.5 | - | - | |
| 1409037 |
|
9.7W LED | 3000K | 90 | 737 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 162.5 | - | - | |
| 1409040 |
|
8.7W LED | 3000K | 90 | 750 | Damp | Wired In | 0-10V | - | - | 162.4 | - | - | |
| 1409045 |
|
9.6W LED | 2700K | 90 | 699 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 162.1 | - | - | |
| 1409048 |
|
8.7W LED | 2700K | 90 | 712 | Damp | Wired In | 0-10V | - | - | 161.8 | - | - | |
| 1409036 |
|
7.4W LED | 3000K | 90 | 653 | Damp | Wired In | Phase & 0-10V | - | - | 162.5 | - | - | |
| 1409039 |
|
9.7W LED | 3000K | 90 | 737 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 162.5 | - | - | |
| 1409042 |
|
8.7W LED | 3000K | 90 | 750 | Damp | Wired In | 0-10V | - | - | 162.4 | - | - | |
| 1409047 |
|
9.6W LED | 2700K | 90 | 699 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 162.1 | - | - | |
| 1409050 |
|
8.7W LED | 2700K | 90 | 712 | Damp | Wired In | 0-10V | - | - | 161.8 | - | - | |
| 1409015 |
|
7.4W LED | 3000K | 90 | 653 | Damp | Wired In | Phase & 0-10V | - | - | 162.5 | - | - | |
| 1409038 |
|
9.7W LED | 3000K | 90 | 737 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 162.5 | - | - | |
| 1409041 |
|
8.7W LED | 3000K | 90 | 750 | Damp | Wired In | 0-10V | - | - | 162.4 | - | - | |
| 1409046 |
|
9.6W LED | 2700K | 90 | 699 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 162.1 | - | - | |
| 1409049 |
|
8.7W LED | 2700K | 90 | 712 | Damp | Wired In | 0-10V | - | - | 161.8 | - | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1409034 |
|
8W LED | 2700K | 90 | 470 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 157.1 | - | - | - |
| 1409033 |
|
8W LED | 2700K | 90 | 470 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 157.1 | - | - | - |
| 1409014 |
|
6.8W LED | 3000K | 90 | 517 | Damp | Wired In | 0-10V | - | - | 158.7 | - | - | |
| 1409026 |
|
8W LED | 3000K | 90 | 498 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 158.5 | - | - | |
| 1409029 |
|
6.6W LED | 2700K | 90 | 471 | Damp | Wired In | 0-10V | - | - | 157.2 | - | - | |
| 1409025 |
|
6.8W LED | 3000K | 90 | 517 | Damp | Wired In | 0-10V | - | - | 158.7 | - | - | |
| 1409028 |
|
8W LED | 3000K | 90 | 498 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 158.5 | - | - | |
| 1409031 |
|
6.6W LED | 2700K | 90 | 471 | Damp | Wired In | 0-10V | - | - | 157.2 | - | - | |
| 1409024 |
|
6.8W LED | 3000K | 90 | 517 | Damp | Wired In | 0-10V | - | - | 158.7 | - | - | |
| 1409027 |
|
8W LED | 3000K | 90 | 498 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 158.5 | - | - | |
| 1409030 |
|
6.6W LED | 2700K | 90 | 471 | Damp | Wired In | 0-10V | - | - | 157.2 | - | - |
