io 665 3000K
Matt Black 1409019

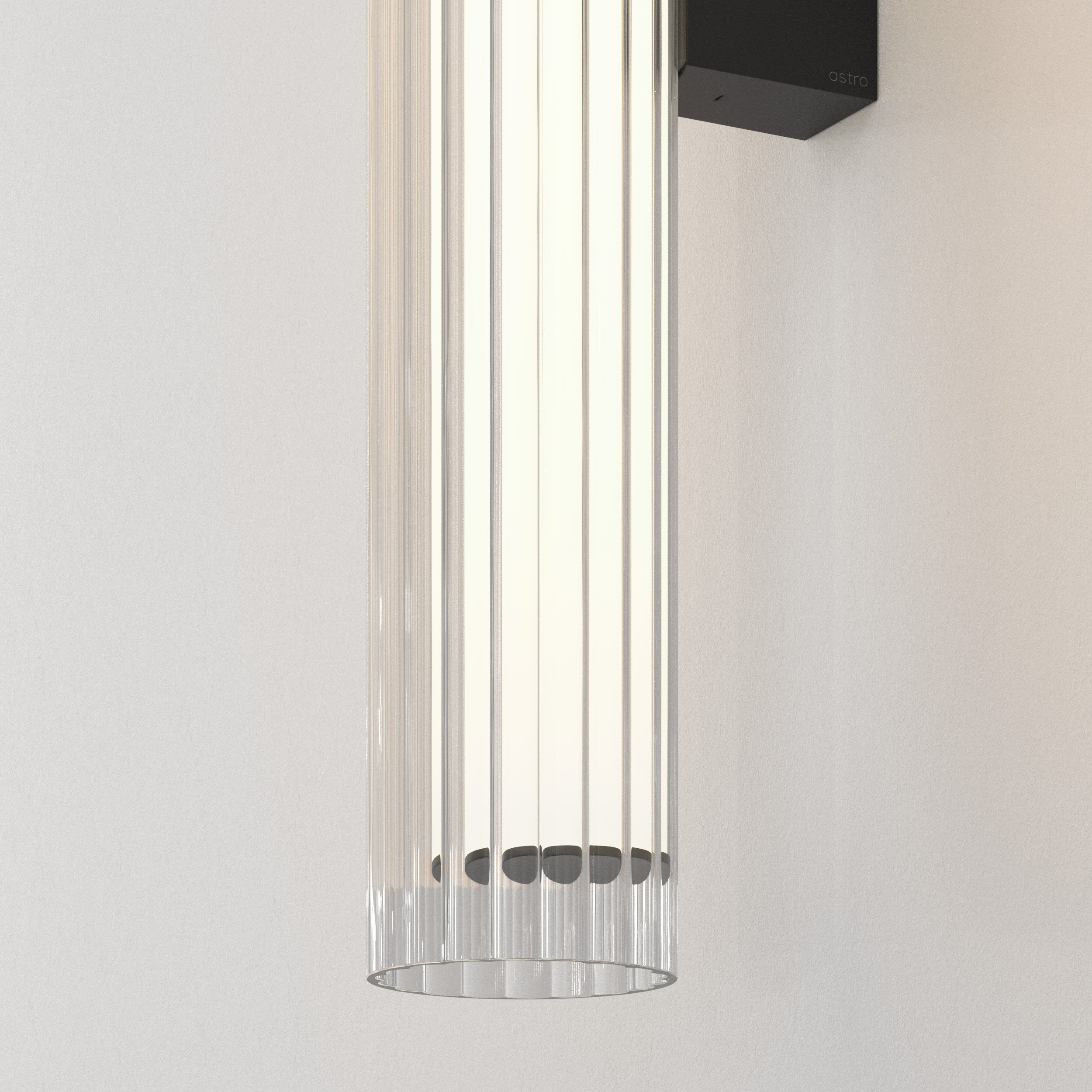

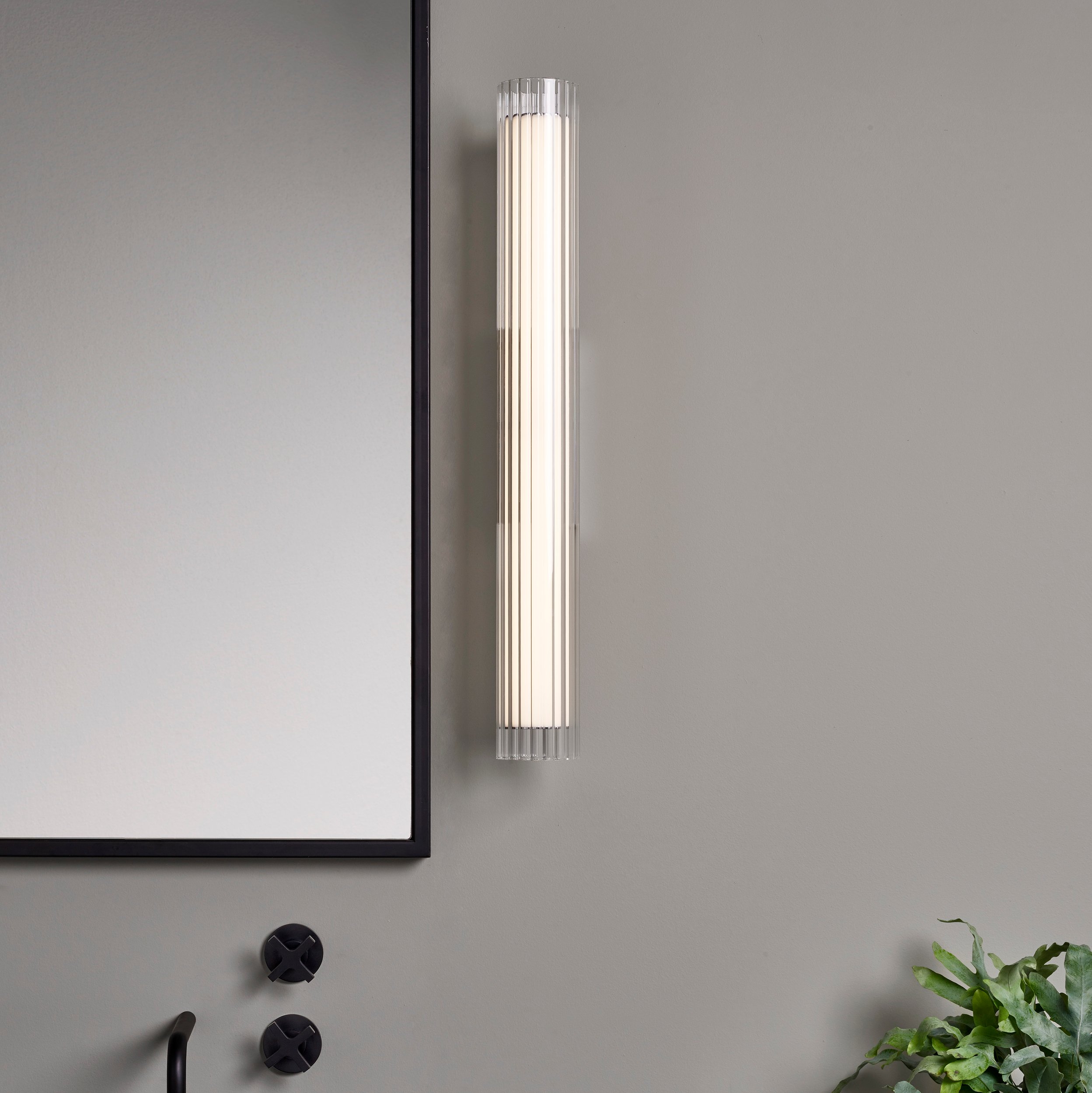

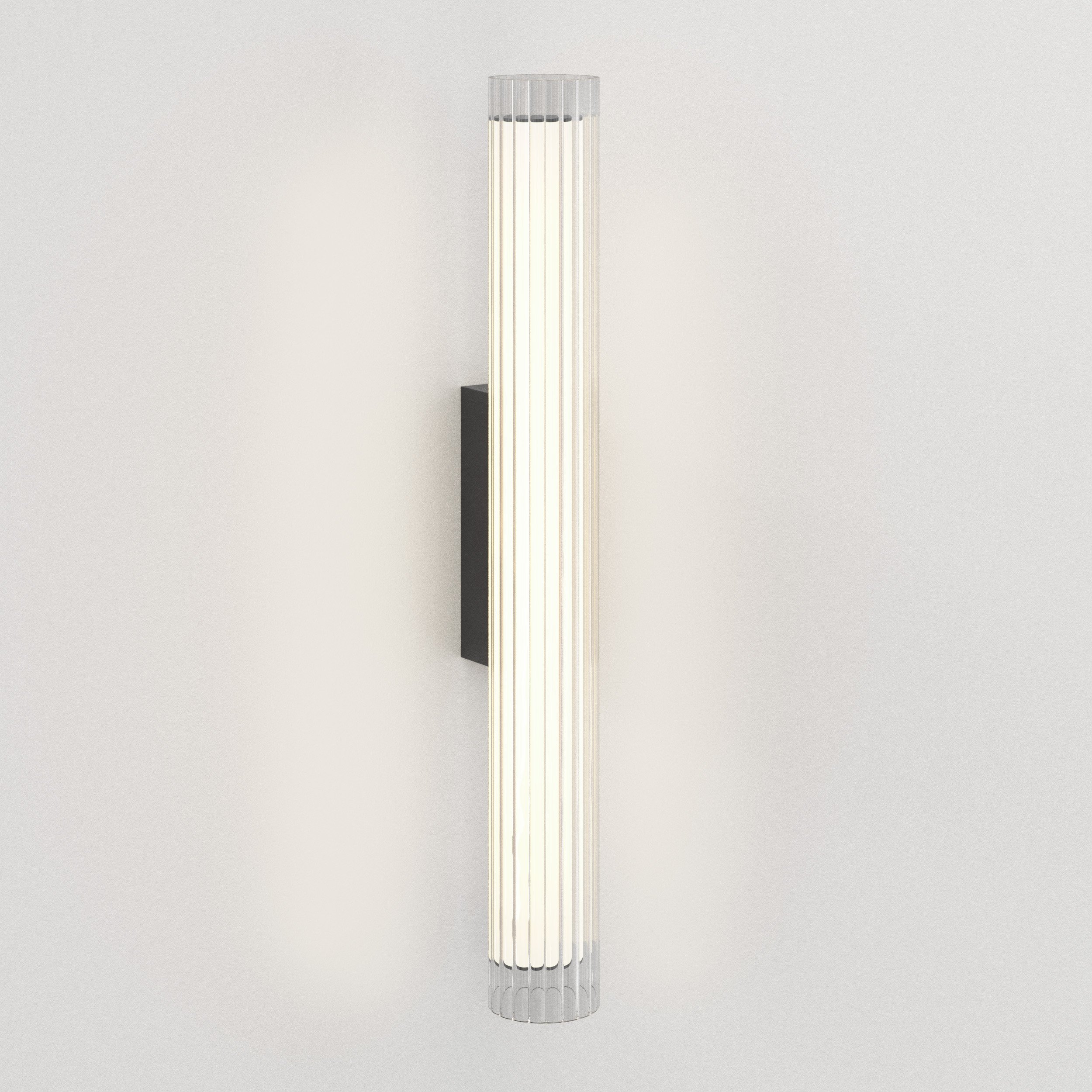

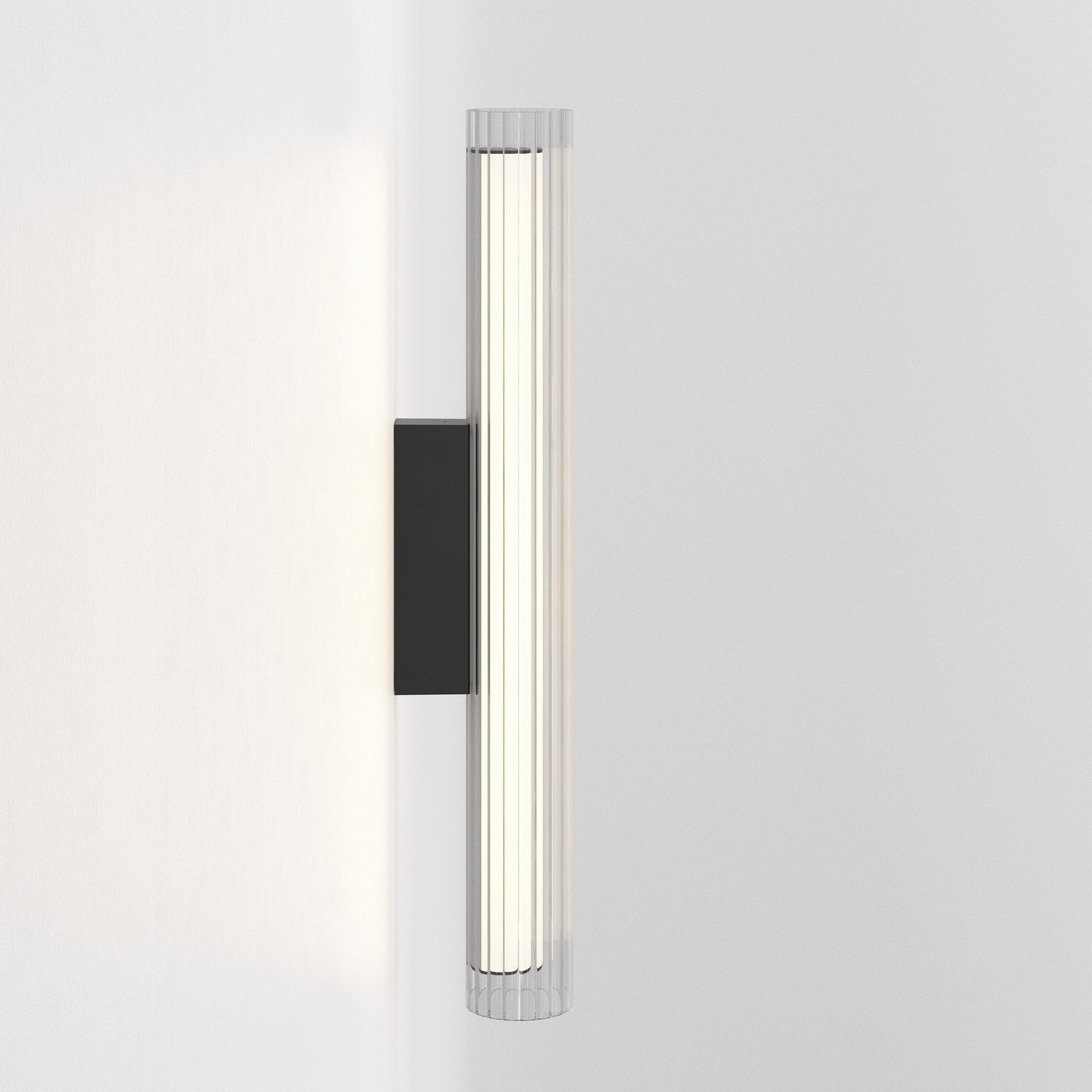

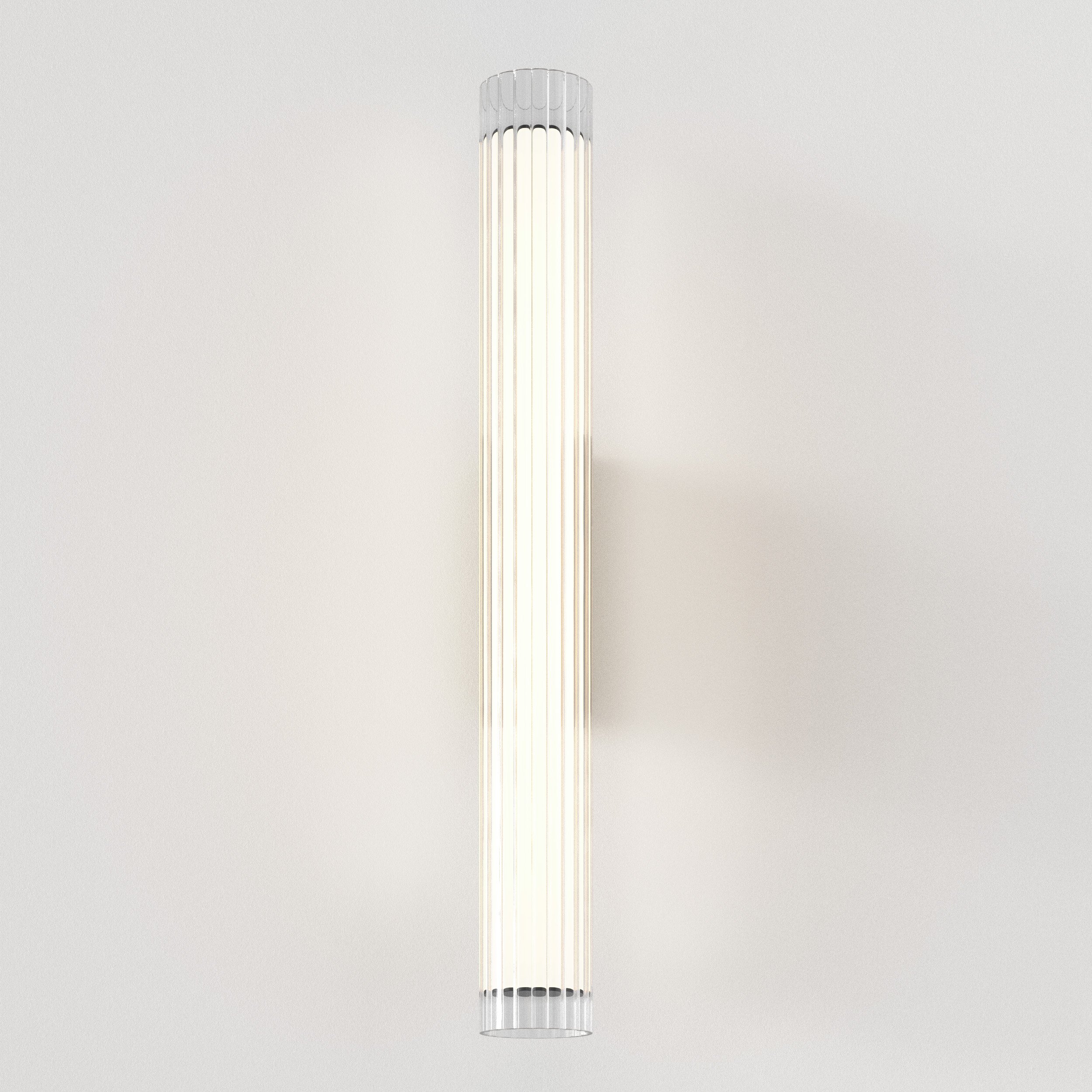

With its fluted glass shade reminiscent of classical Greek columns, io adds a luxurious allure and comfortable task lighting to any contemporary bathroom. Its damp-rated design and integrated LED lamp make it a safe, energy-efficient lighting choice for installation above or beside the bathroom mirror.
spec overview
Lamp Included 7.4W LED Damp RatedMade to Order
To maintain this product to its best condition, please view our care and cleaning guide.
Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 653 |
| Color Temperature (K): | 3000 |
| CRI: | 90 |
| Beam Angle (°): | 162.5 |
| Max Lamp Type & Wattage: | 7.4W LED |
| Switched: | No |
| Dimmable: | Yes |
| Type Of Dimmer: | Phase & 0-10V |
| Driver Required: | No |
| Primary Shade Finish: | Clear Glass |
| Certification / Class: | cULus (Class 1) |
| Power Connection Type: | Wired In |
| Location Rating: | Damp |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4 |
| IC Rated: | Yes |
| Recess Depth (in): | 1.54 |
| Cutout Shape: | Square |
| Cutout Length (in): | 7.13 |
| Cutout Width (in): | 1.38 |
Downloads
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1409032 |
|
8W LED | 2700K | 90 | 470 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 157.1 | - | - | - |
| 1409033 |
|
8W LED | 2700K | 90 | 470 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 157.1 | - | - | - |
| 1409014 |
|
6.8W LED | 3000K | 90 | 517 | Damp | Wired In | 0-10V | - | - | 158.7 | - | - | |
| 1409026 |
|
8W LED | 3000K | 90 | 498 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 158.5 | - | - | |
| 1409029 |
|
6.6W LED | 2700K | 90 | 471 | Damp | Wired In | 0-10V | - | - | 157.2 | - | - | |
| 1409025 |
|
6.8W LED | 3000K | 90 | 517 | Damp | Wired In | 0-10V | - | - | 158.7 | - | - | |
| 1409028 |
|
8W LED | 3000K | 90 | 498 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 158.5 | - | - | |
| 1409031 |
|
6.6W LED | 2700K | 90 | 471 | Damp | Wired In | 0-10V | - | - | 157.2 | - | - | |
| 1409034 |
|
8W LED | 2700K | 90 | 470 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 157.1 | - | - | |
| 1409024 |
|
6.8W LED | 3000K | 90 | 517 | Damp | Wired In | 0-10V | - | - | 158.7 | - | - | |
| 1409027 |
|
8W LED | 3000K | 90 | 498 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 158.5 | - | - | |
| 1409030 |
|
6.6W LED | 2700K | 90 | 471 | Damp | Wired In | 0-10V | - | - | 157.2 | - | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1409043 |
|
7.4W LED | 2700K | 90 | 605 | Damp | Wired In | Phase & 0-10V | - | - | 161.7 | - | - | - |
| 1409051 |
|
7.4W LED | 2700K | 90 | 605 | Damp | Wired In | Phase & 0-10V | - | - | 161.7 | - | - | - |
| 1409044 |
|
7.4W LED | 2700K | 90 | 605 | Damp | Wired In | Phase & 0-10V | - | - | 161.7 | - | - | - |
| 1409037 |
|
9.7W LED | 3000K | 90 | 737 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 162.5 | - | - | |
| 1409040 |
|
8.7W LED | 3000K | 90 | 750 | Damp | Wired In | 0-10V | - | - | 162.4 | - | - | |
| 1409045 |
|
9.6W LED | 2700K | 90 | 699 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 162.1 | - | - | |
| 1409048 |
|
8.7W LED | 2700K | 90 | 712 | Damp | Wired In | 0-10V | - | - | 161.8 | - | - | |
| 1409036 |
|
7.4W LED | 3000K | 90 | 653 | Damp | Wired In | Phase & 0-10V | - | - | 162.5 | - | - | |
| 1409039 |
|
9.7W LED | 3000K | 90 | 737 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 162.5 | - | - | |
| 1409042 |
|
8.7W LED | 3000K | 90 | 750 | Damp | Wired In | 0-10V | - | - | 162.4 | - | - | |
| 1409047 |
|
9.6W LED | 2700K | 90 | 699 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 162.1 | - | - | |
| 1409050 |
|
8.7W LED | 2700K | 90 | 712 | Damp | Wired In | 0-10V | - | - | 161.8 | - | - | |
| 1409015 |
|
7.4W LED | 3000K | 90 | 653 | Damp | Wired In | Phase & 0-10V | - | - | 162.5 | - | - | |
| 1409038 |
|
9.7W LED | 3000K | 90 | 737 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 162.5 | - | - | |
| 1409041 |
|
8.7W LED | 3000K | 90 | 750 | Damp | Wired In | 0-10V | - | - | 162.4 | - | - | |
| 1409046 |
|
9.6W LED | 2700K | 90 | 699 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | 162.1 | - | - | |
| 1409049 |
|
8.7W LED | 2700K | 90 | 712 | Damp | Wired In | 0-10V | - | - | 161.8 | - | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1409016 |
|
21W LED | 3000K | 80 | 2187 | Dry | Wired In | Phase - Leading & Trailing Edge | - | - | 165.5 | - | - | - |
You may also like
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1121096 |
 |
2 x 7W Max LED Candle E12/Candelabra | - | - | Lamp Dependent | Damp | Wired In | Lamp Dependent | - | - | - | - | - | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1459008 |
|
2 x 25W Max G9 | - | - | Lamp Dependent | Damp | Wired In | Lamp Dependent | - | - | - | - | - | - |
Versailles 600
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1380069 |
|
11.3W LED | 3000K | 90 | 1076 | Damp | Wired In | 0-10V | - | - | - | - | - |
Configure your io 665
Finish: Matt Black
Color Temperature
Choose your preferred light temperature for your product.
Type of Dimmer
Choose your dimming type.
Configure to select a product
Made to order
