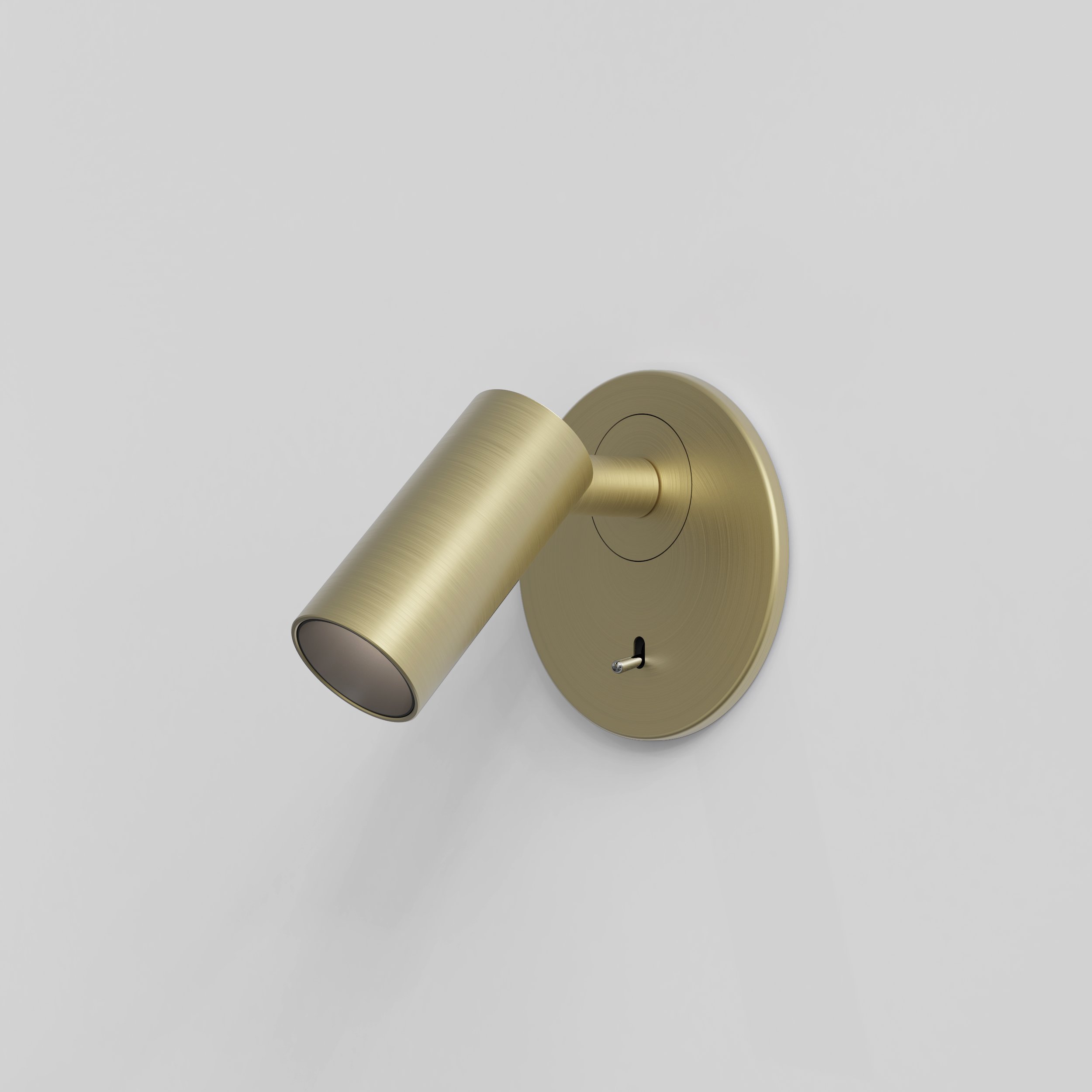

Micro Recess Switched

Matt Gold 1407020

Wired In

spec overview

Lamp Included 3.2W LED 196LM 2700K Damp Rated
full spec
Product Care and Cleaning Guide

To maintain this product to its best condition, please view our care and cleaning guide.

Available with cord set

This product is available with cord set for headboard mounting (minimum order quantities apply). UL approved. For datasheet and instructions see the product downloads section below. Please contact our sales team for more information.

Positioning Guide

All Astro reading lights are fully adjustable but careful consideration of placement when installing our fixtures can help further optimise reading comfort when in use. Download our positioning guide to learn more.

Specification

Lamp Required: No
Lumen Output (LM): 196
Color Temperature (K): 2700
CRI: 90
Beam Angle (°): 16.0
Max Lamp Type & Wattage: 3.2W LED
Switched: Yes
Dimmable: No
Driver Required: No
Certification / Class: cULus (Class 1)
Power Connection Type: Wired In
Location Rating: Damp
Fitting Method: Included Junction Box
ADA Compliant: Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4
IC Rated: Yes
Direction Adjustable: Yes
Installation Orientation: Wall Mount - Vertical
Recess Depth (in): 2.17
Cutout Shape: Round
Hole Saw Diameter: 70mm / 2-3/4in

Configure your Micro Recess Switched

Power Connection Type

Choose the method of connecting this product to a power source.
