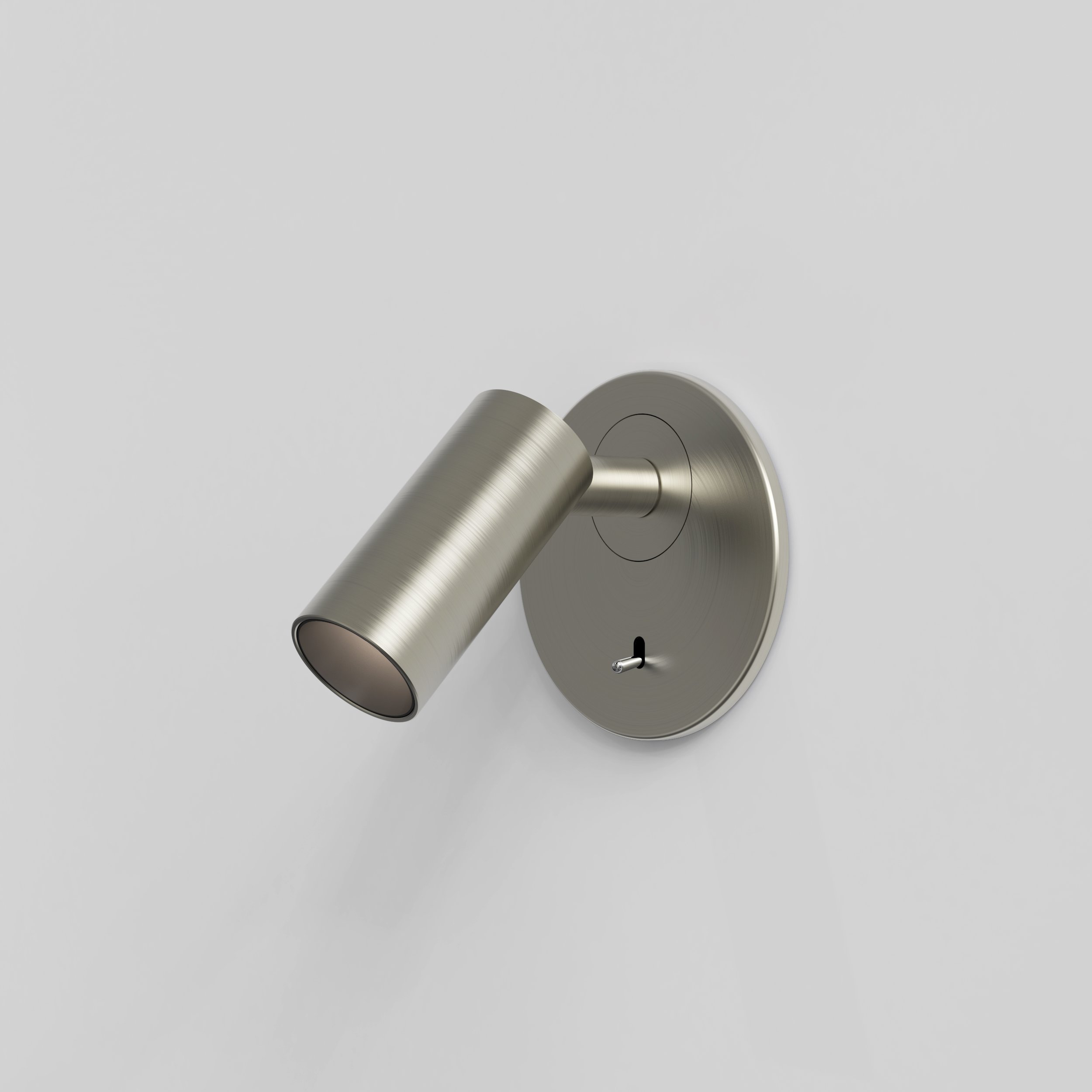

Micro Recess Switched
Matt Nickel 1407018
spec overview
Lamp Included 3.2W LED 196LM 2700K Damp RatedTo maintain this product to its best condition, please view our care and cleaning guide.
This product is available with cord set for headboard mounting (minimum order quantities apply). UL approved. For datasheet and instructions see the product downloads section below. Please contact our sales team for more information.
All Astro reading lights are fully adjustable but careful consideration of placement when installing our fixtures can help further optimise reading comfort when in use. Download our positioning guide to learn more.
Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 196 |
| Color Temperature (K): | 2700 |
| CRI: | 90 |
| Beam Angle (°): | 16.0 |
| Max Lamp Type & Wattage: | 3.2W LED |
| Switched: | Yes |
| Dimmable: | No |
| Driver Required: | No |
| Certification / Class: | cULus (Class 1) |
| Power Connection Type: | Wired In |
| Location Rating: | Damp |
| Fitting Method: | Included Junction Box |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4 |
| IC Rated: | Yes |
| Direction Adjustable: | Yes |
| Installation Orientation: | Wall Mount - Vertical |
| Recess Depth (in): | 2.17 |
| Cutout Shape: | Round |
| Hole Saw Diameter: | 70mm / 2-3/4in |
Downloads
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1407019 |
|
3.2W LED | 2700K | 90 | 196 | Damp | Wired In | - | - | - | 16.0 | - | ||
| 1407017 |
|
3.2W LED | 2700K | 90 | 196 | Damp | Wired In | - | - | - | 16.0 | - | ||
| 1407020 |
|
3.2W LED | 2700K | 90 | 196 | Damp | Wired In | - | - | - | 16.0 | - | ||
| 1407016 |
|
3.2W LED | 2700K | 90 | 196 | Damp | Wired In | - | - | - | 16.0 | - | ||
| 1407027 |
|
3.2W LED | 2700K | 90 | 196 | Damp | Cord Set | - | - | - | 16.0 | |||
| 1407024 |
|
3.2W LED | 2700K | 90 | 196 | Damp | Cord Set | - | - | - | 16.0 | |||
| 1407028 |
|
3.2W LED | 2700K | 90 | 196 | Damp | Cord Set | - | - | - | 16.0 | |||
| 1407026 |
|
3.2W LED | 2700K | 90 | 196 | Damp | Cord Set | - | - | - | 16.0 | |||
| 1407023 |
|
3.2W LED | 2700K | 90 | 196 | Damp | Cord Set | - | - | - | 16.0 | |||
| 1407025 |
|
3.2W LED | 2700K | 90 | 196 | Damp | Cord Set | - | - | - | 16.0 |
Micro Recess Unswitched
Made to order| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1407014 |
|
2W LED | 2700K | 90 | 164 | Dry | Wired In | Control Gear Dependent | - | - | 20.9 | - | ||
| 1407012 |
|
2W LED | 2700K | 90 | 164 | Dry | Wired In | Control Gear Dependent | - | - | 20.9 | - | ||
| 1407015 |
|
2W LED | 2700K | 90 | 164 | Dry | Wired In | Control Gear Dependent | - | - | 20.9 | - | ||
| 1407013 |
|
2W LED | 2700K | 90 | 164 | Dry | Wired In | Control Gear Dependent | - | - | 20.9 | - | ||
| 1407011 |
|
2W LED | 2700K | 90 | 164 | Dry | Wired In | Control Gear Dependent | - | - | 20.9 | - |
