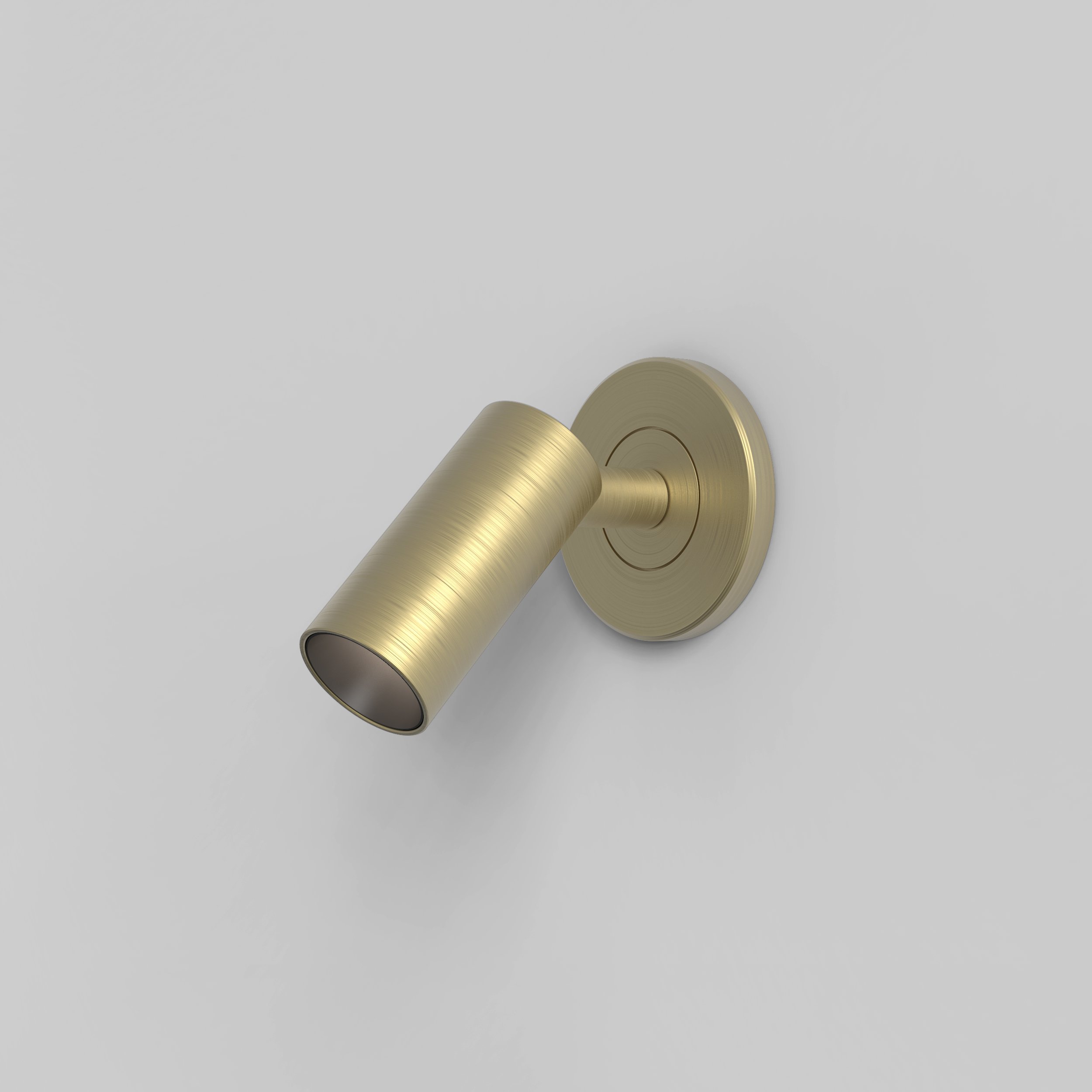

Micro Recess Unswitched

Matt Gold 1407015

spec overview

Lamp Included 1 x 2W LED 164LM 2700K Dry Rated
full spec
Made to Order
Production orders are subject to minimum quantities and lead times. Please get in touch for more information and sample availability.
Product Care and Cleaning Guide

To maintain this product to its best condition, please view our care and cleaning guide.

Driver Calculator and Driver Guide

To ensure you have the correct amount of fittings per driver, please refer to our driver calculator. Alternatively, for more information on drivers, download our Advanced Guide to LED Lights & Drivers.

Positioning Guide

All Astro reading lights are fully adjustable but careful consideration of placement when installing our fixtures can help further optimise reading comfort when in use. Download our positioning guide to learn more.

Specification

Lamp Required: No
Lumen Output (LM): 164
Color Temperature (K): 2700
CRI: 90
Beam Angle (°): 20.9
Max Lamp Type & Wattage: 1 x 2W LED
Switched: No
Dimmable: Yes
Type Of Dimmer: Control Gear Dependent
Driver Required: Constant Current 700mA
Certification / Class: cULus (Class 2)
Power Connection Type: Wired In
Location Rating: Dry
Fitting Method: Recessed in Drywall Wall
Recessed in Solid Wall
ADA Compliant: Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4
IC Rated: No
Direction Adjustable: Yes
Installation Orientation: Wall Mount
Recess Depth (in): 0.83
Cutout Shape: Round
Hole Saw Diameter: 17mm / 11/16in

Find a compatible driver

We provide an easy-to-use online tool to calculate which LED drivers are compatible with your chosen luminaire. Follow the steps to determine the right driver for you.
