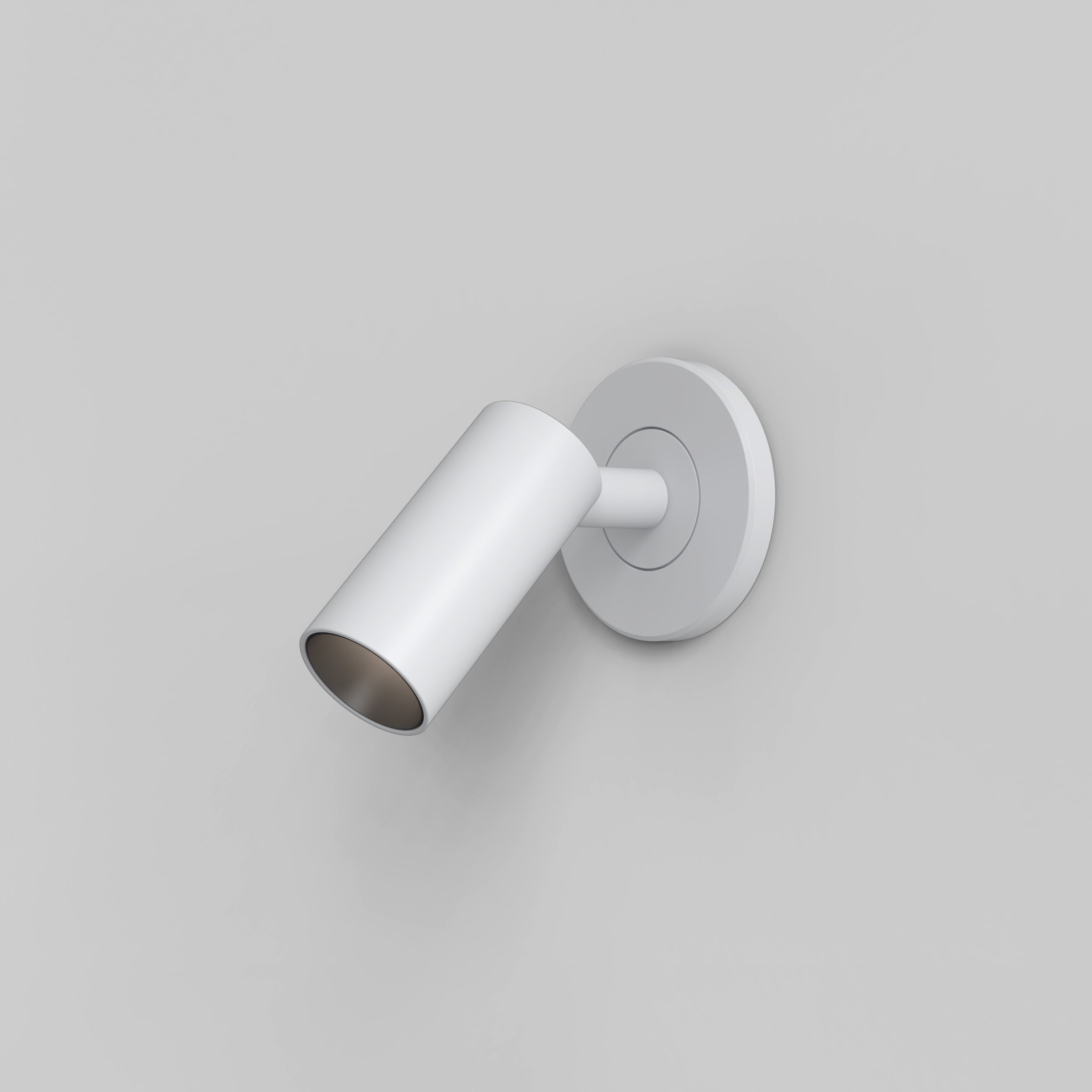

Micro Recess Unswitched
Matt White 1407011
| Lamp Required: | No |
|---|---|
| Max Lamp Type & Wattage: | 1 x 2W LED |
| Lumen Output (LM): | 164 |
| Color Temperature (K): | 2700 |
| Location Rating: | Dry |
Order Information
This product is subject to minimum quantity orders.
Product Care and Cleaning Guide
To maintain this product to its best condition, please view our care and cleaning guide.
Driver Calculator and Driver Guide
To ensure you have the correct amount of fittings per driver, please refer to our driver calculator. Alternatively, for more information on drivers, download our Advanced Guide to LED Lights & Drivers.
Positioning Guide
For tips on optimizing installation position, please view our guide.
Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 164 |
| Color Temperature (K): | 2700 |
| CRI: | 90 |
| Beam Angle (°): | 20.9 |
| Max Lamp Type & Wattage: | 1 x 2W LED |
| Switched: | No |
| Dimmable: | Yes |
| Type Of Dimmer: | Control Gear Dependent |
| Driver Required: | Constant Current 700mA |
| Certification / Class: | cULus (Class 2) |
| Power Connection Type: | Wired In |
| Location Rating: | Dry |
| Fitting Method: |
Recessed in Drywall Wall Recessed in Solid Wall |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4 |
| IC Rated: | No |
| Direction Adjustable: | Yes |
| Installation Orientation: | Wall Mount |
| Recess Depth: | 21 |
| Cutout Shape: | Round |
| Hole Saw Diameter: | 17mm / 11/16in |
Downloads
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | Location |
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1407014 |
|
2W LED | 2700K | 90 | 164 | Dry | - | 20.9 | - | ||
| 1407012 |
|
2W LED | 2700K | 90 | 164 | Dry | - | 20.9 | - | ||
| 1407015 |
|
2W LED | 2700K | 90 | 164 | Dry | - | 20.9 | - | ||
| 1407013 |
|
2W LED | 2700K | 90 | 164 | Dry | - | 20.9 | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | Location |
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1407019 |
|
3.2W LED | 2700K | 90 | 196 | Damp | - | 16.0 | - | ||
| 1407017 |
|
3.2W LED | 2700K | 90 | 196 | Damp | - | 16.0 | - | ||
| 1407020 |
|
3.2W LED | 2700K | 90 | 196 | Damp | - | 16.0 | - | ||
| 1407018 |
|
3.2W LED | 2700K | 90 | 196 | Damp | - | 16.0 | - | ||
| 1407016 |
|
3.2W LED | 2700K | 90 | 196 | Damp | - | 16.0 | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | Location |
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1407027 |
|
3.2W LED | 2700K | 90 | 196 | Damp | - | 16.0 | - | ||
| 1407024 |
|
3.2W LED | 2700K | 90 | 196 | Damp | - | 16.0 | - | ||
| 1407028 |
|
3.2W LED | 2700K | 90 | 196 | Damp | - | 16.0 | - | ||
| 1407026 |
|
3.2W LED | 2700K | 90 | 196 | Damp | - | 16.0 | - | ||
| 1407023 |
|
3.2W LED | 2700K | 90 | 196 | Damp | - | 16.0 | - | ||
| 1407025 |
 |
3.2W LED | 2700K | 90 | 196 | Damp | - | 16.0 | - |
