Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 1219.01 |
| Color Temperature (K): | 2700 |
| CRI: | 80 |
| Beam Angle (°): | 25.6 |
| Max Lamp Type & Wattage: | 1 x 12.32W LED |
| Switched: | No |
| Dimmable: | Yes (Control Gear Dependent) |
| Type Of Dimmer: | Control Gear Dependent |
| Driver Required: | Constant Current 350mA |
| Certification / Class: | cETLus (Class 2) |
| Power Connection Type: | Wired In |
| Location Rating: | Damp |
| Fitting Method: | Recessed in Drywall Ceiling |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.4 |
| IC Rated: | No |
| Installation Orientation: | Install before plastering |

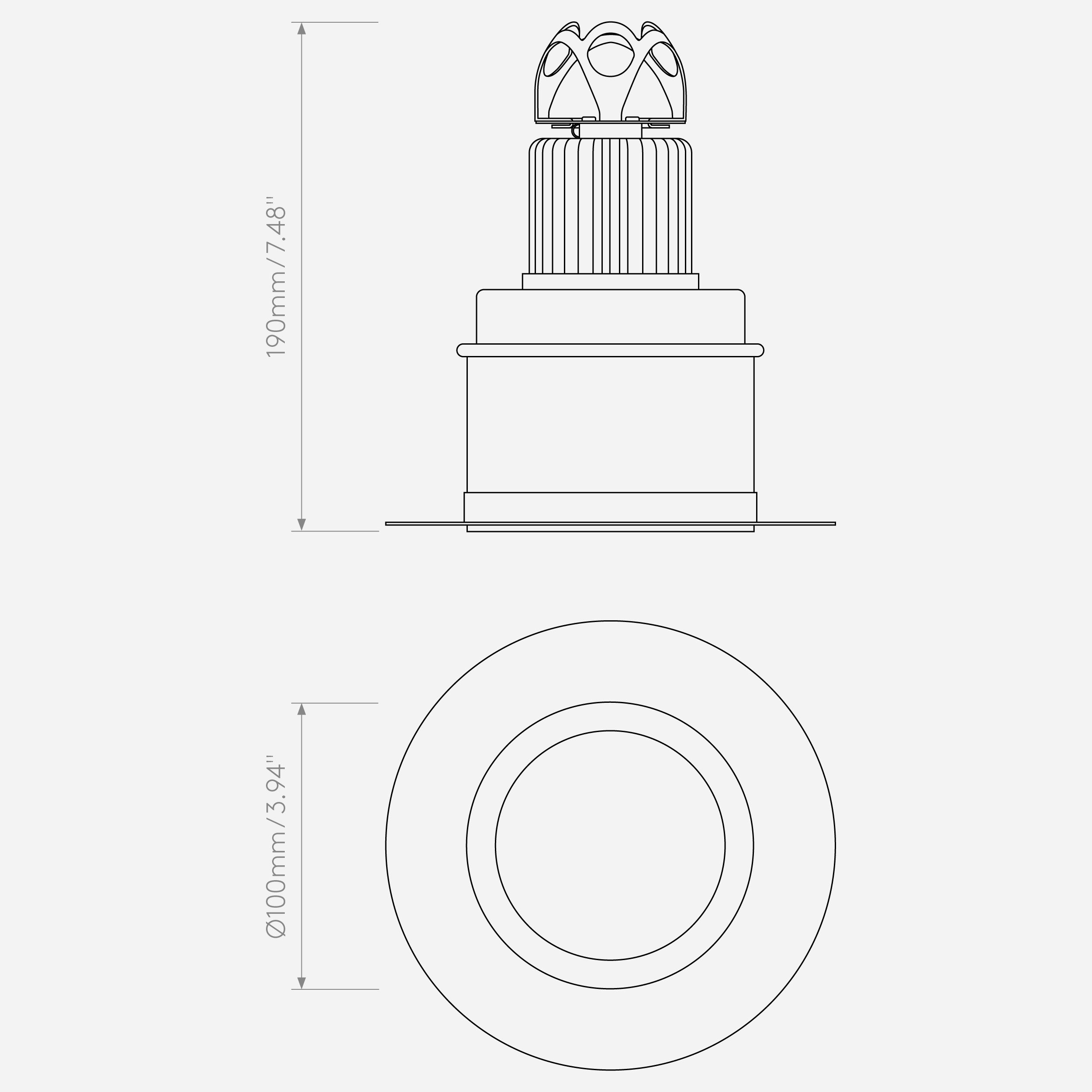

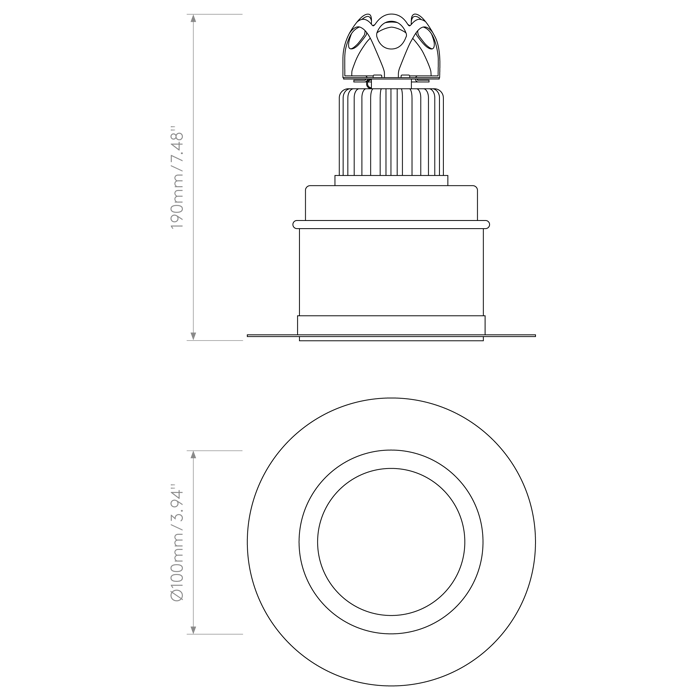

| Recess Depth (in): | 7.36 |
| Cutout Shape: | Round |
| Hole Saw Diameter: | 117mm / 4-5/8in |
Downloads
Find a compatible driver
We provide an easy-to-use online tool to calculate which LED drivers are compatible with your chosen luminaire. Follow the steps to determine the right driver for you.
