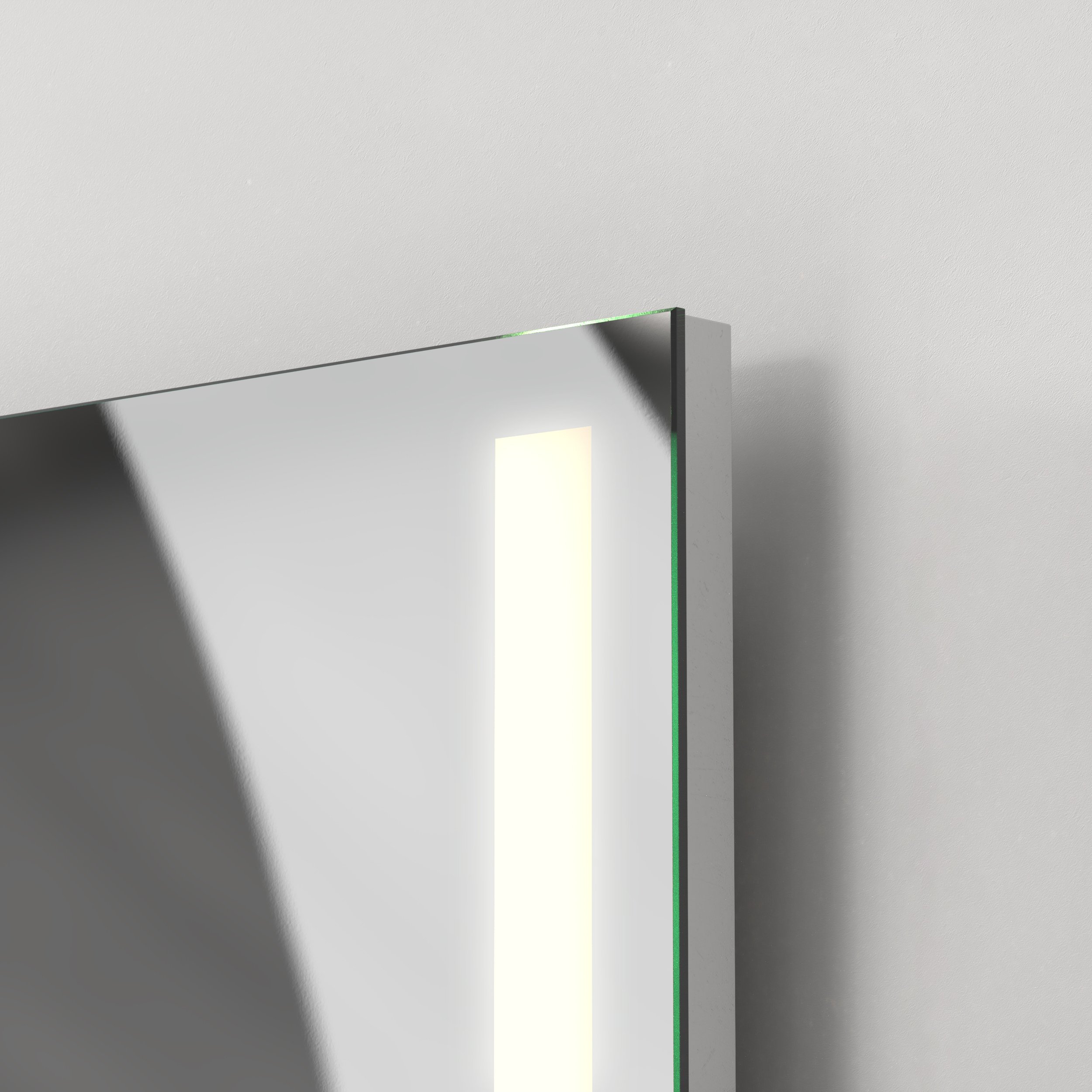

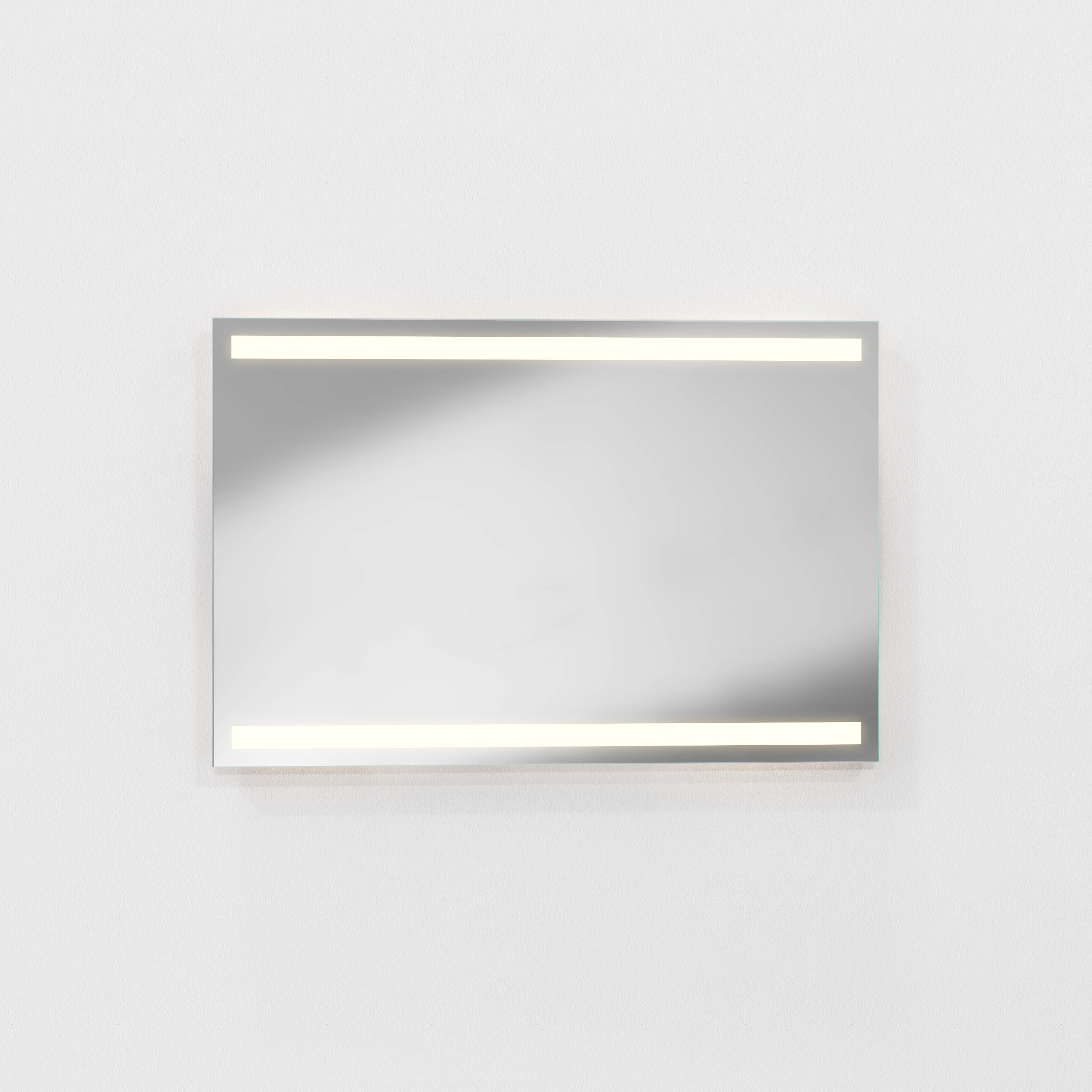

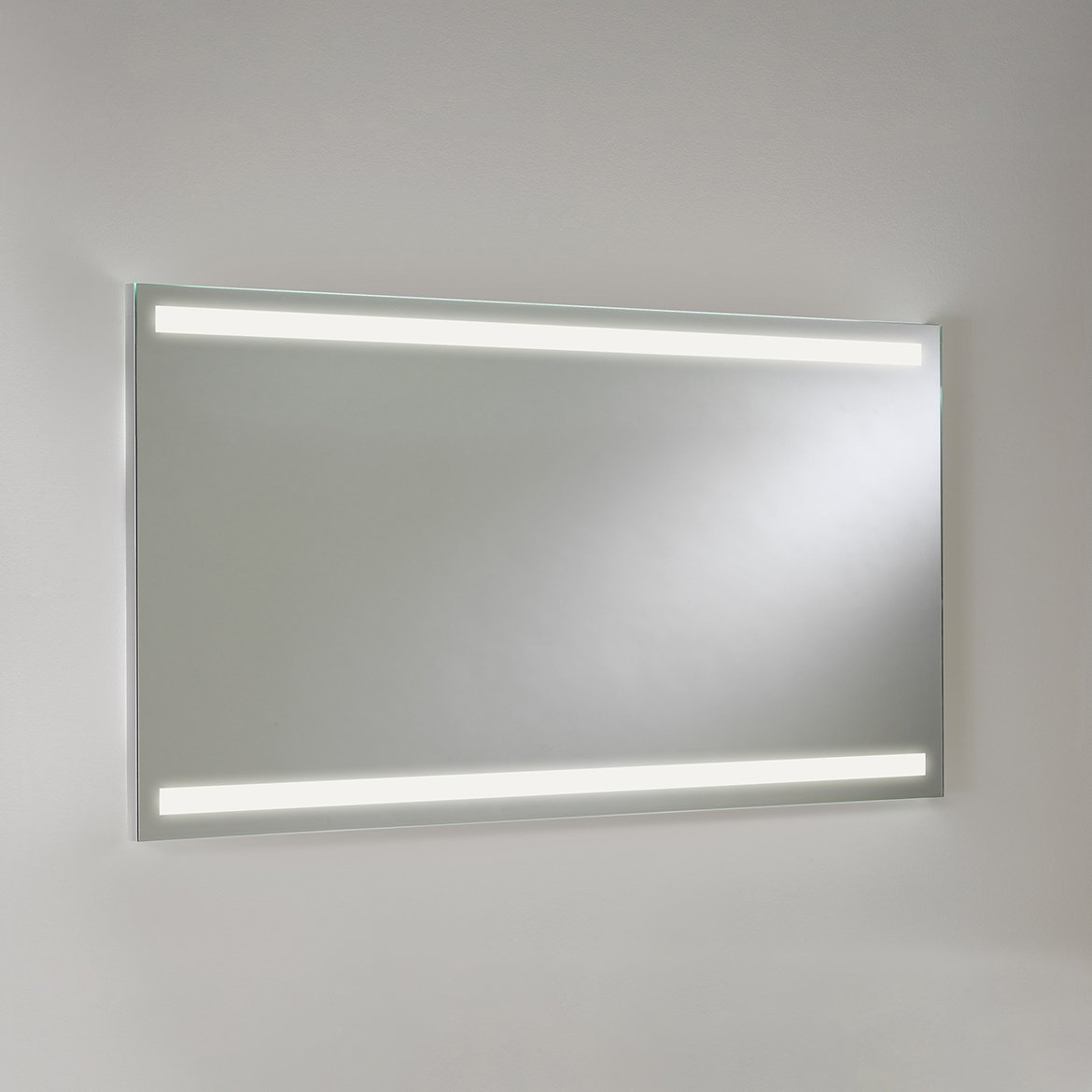

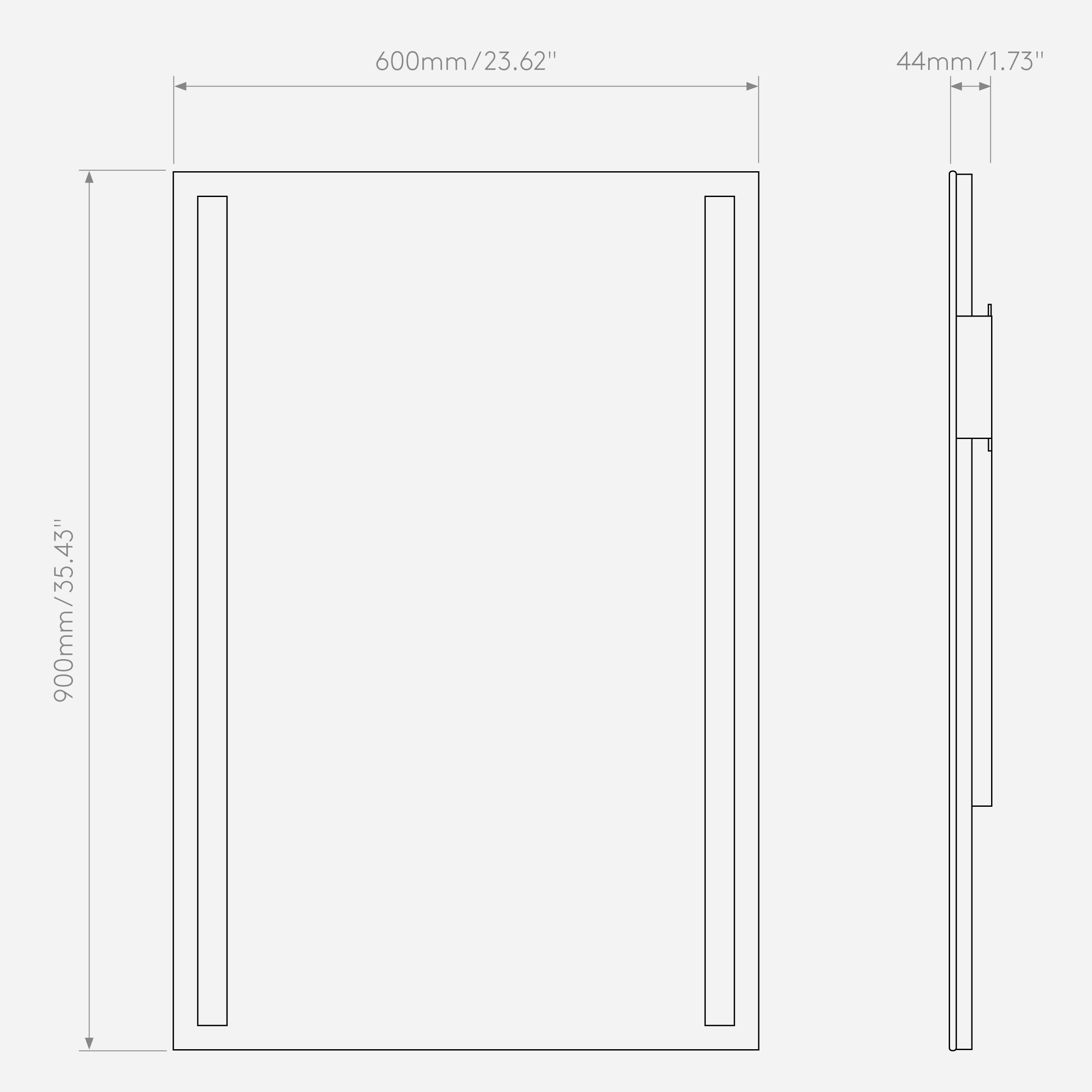

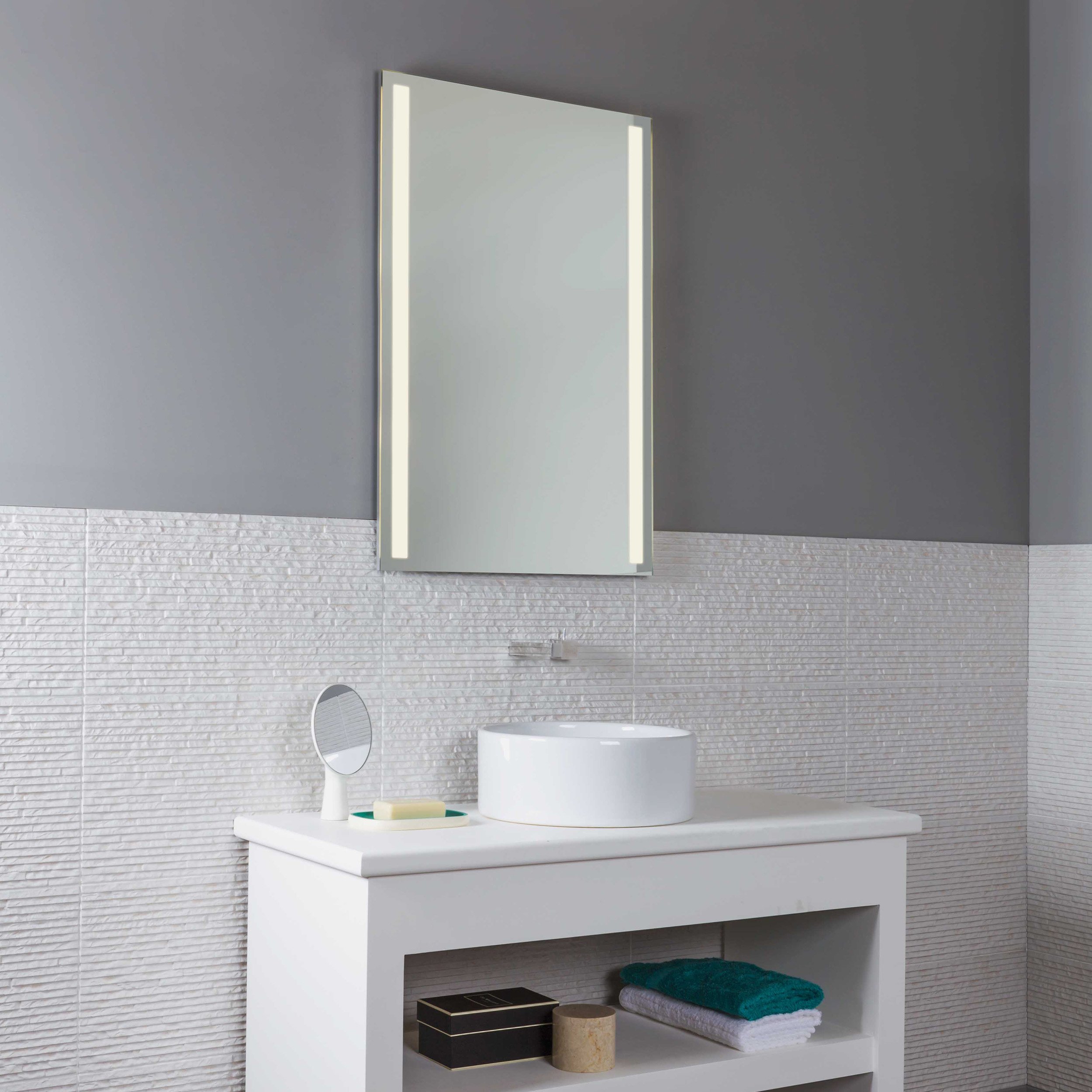

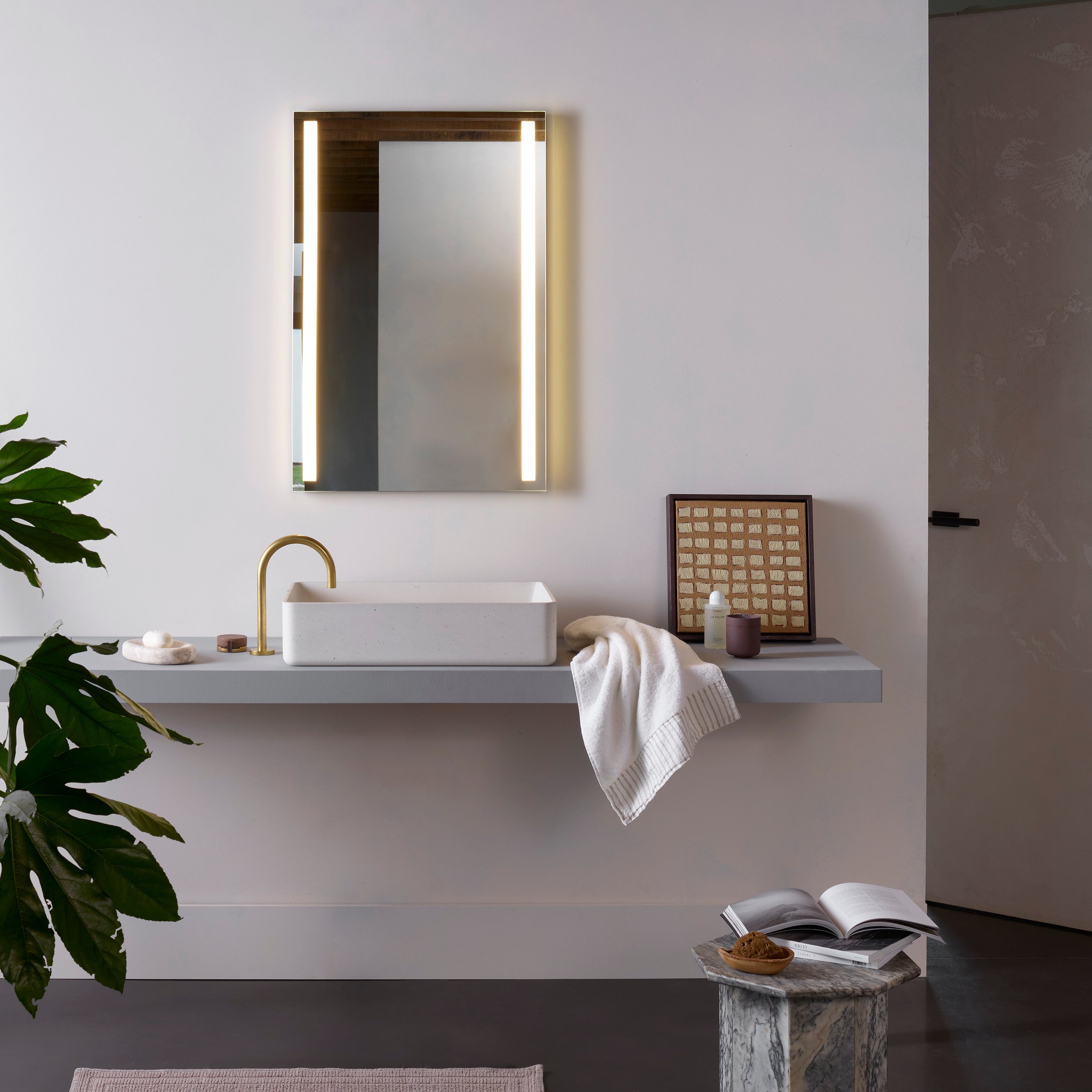

Avlon 900 3000K 0-10V
Mirror Glass 1359033
With its crisp, clean lines, the Avlon is an ultra-modern take on the illuminated bathroom mirror. Designed with two integral frosted LED light panels, this versatile mirror provides considered task lighting, perfect for shaving or applying makeup.
spec overview
Lamp Included 28.8W LED Damp RatedMade to Order
To maintain this product to its best condition, please view our care and cleaning guide.
Specification
| Lamp Required: | No |
|---|---|
| Color Temperature (K): | 3000 |
| CRI: | 90 |
| Max Lamp Type & Wattage: | 28.8W LED |
| Switched: | No |
| Dimmable: | Yes |
| Type Of Dimmer: | 0-10V |
| Driver Required: | No |
| Certification / Class: | cULus (Class 1) |
| Power Connection Type: | Wired In |
| Location Rating: | Damp |
| Fitting Method: | Hookup with MC Whip |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.2 |
| Installation Orientation: |
Wall Mount - Vertical Wall Mount - Horizontal |
Downloads
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1359030 |
|
28.8W LED | 2700K | 90 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | - | - | - | - | |
| 1359031 |
|
28.8W LED | 2700K | 90 | Damp | Wired In | 0-10V | - | - | - | - | - | ||
| 1359032 |
|
28.8W LED | 3000K | 90 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | - | - | - | ||
| 1359038 |
|
28.8W LED | 2700K | 90 | Damp | Cord Set | - | - | - | - | - | - | ||
| 1359039 |
|
28.8W LED | 3000K | 90 | Damp | Cord Set | - | - | - | - | - | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1359034 |
|
21.1W LED | 2700K | 90 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | - | - | - | - | |
| 1359035 |
|
21.1W LED | 2700K | 90 | Damp | Wired In | 0-10V | - | - | - | - | - | ||
| 1359036 |
|
21.1W LED | 3000K | 90 | Damp | Wired In | Phase - Leading & Trailing Edge | - | - | - | - | - | ||
| 1359037 |
|
21.1W LED | 3000K | 90 | Damp | Wired In | 0-10V | - | - | - | - | - | ||
| 1359040 |
|
21.1W LED | 2700K | 90 | Damp | Cord Set | - | - | - | - | - | - | ||
| 1359041 |
|
21.1W LED | 3000K | 90 | Damp | Cord Set | - | - | - | - | - | - |
