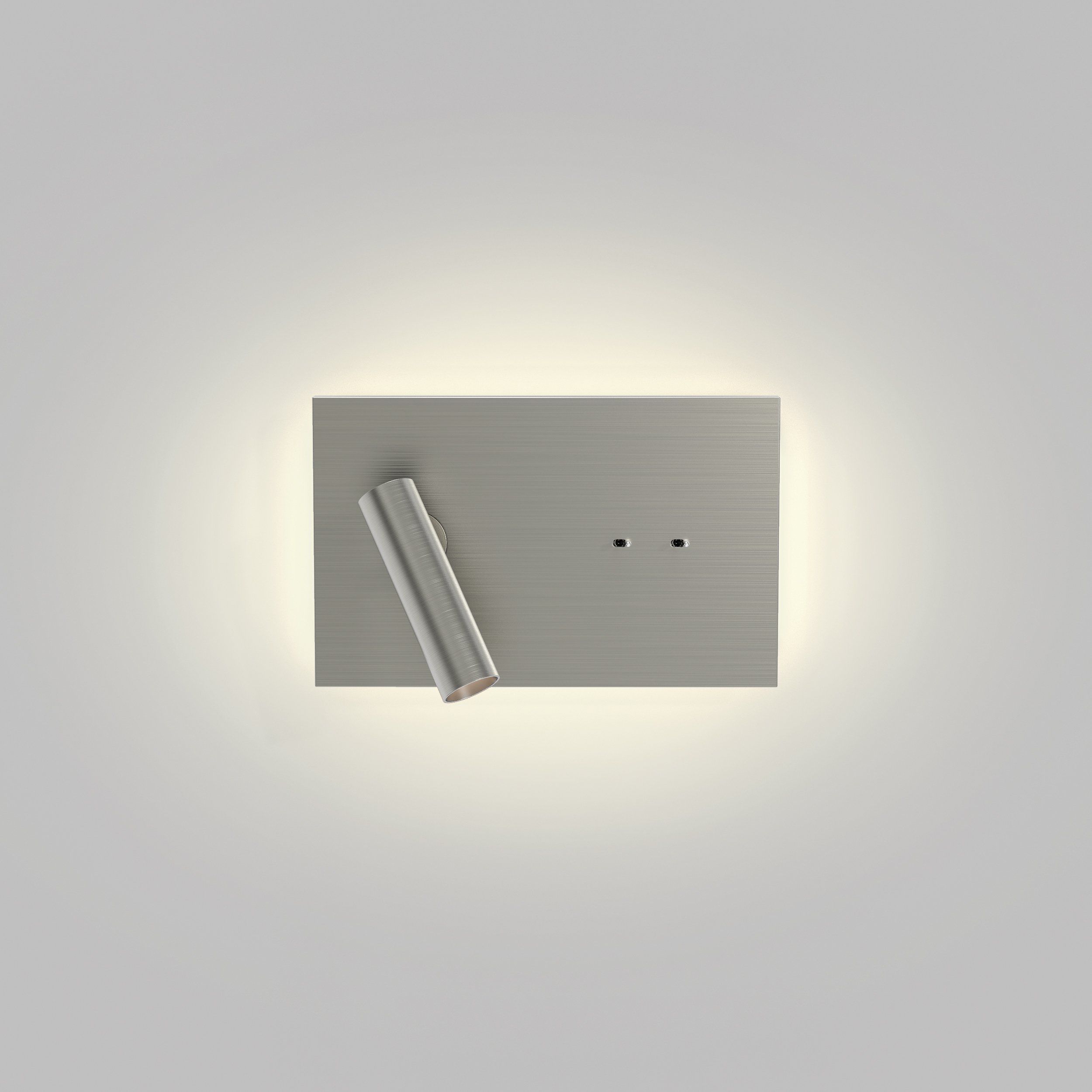

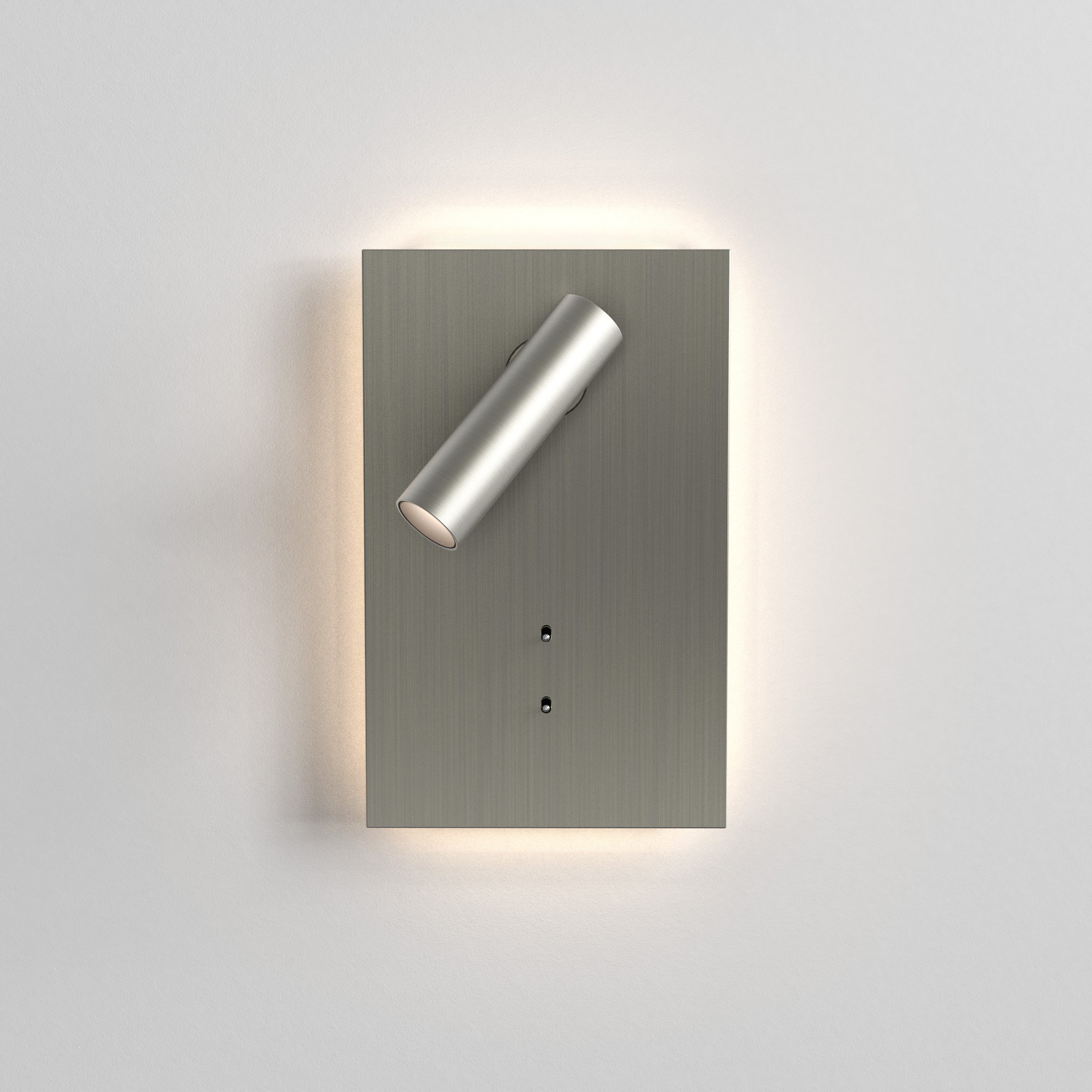

Edge Reader Mini
Matt Nickel 1352029
spec overview
Lamp Included 8.5W LED 78LM 2700K Reader: 2700K Dry RatedTo maintain this product to its best condition, please view our care and cleaning guide.
This product is available with cord set for headboard mounting (minimum order quantities apply). UL approved. For datasheet and instructions see the product downloads section below. Please contact our sales team for more information.
All Astro reading lights are fully adjustable but careful consideration of placement when installing our fixtures can help further optimise reading comfort when in use. Download our positioning guide to learn more.
Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 78 |
| Color Temperature (K): | 2700 |
| CRI: | 80 |
| Max Lamp Type & Wattage: | 8.5W LED |
| Lumen Output Secondary (LM): | 126 |
| Color Temperature Secondary (K): | 2700 |
| Secondary CRI: | 90 |
| Secondary Beam Angle (°): | 24.4 |
| Lamp Type & Wattage Secondary: | 3.2W LED |
| Switched: | Yes |
| Dimmable: | No |
| Driver Required: | No |
| Certification / Class: | cULus (Class 1) |
| Power Connection Type: | Wired In |
| Location Rating: | Dry |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4 |
| Direction Adjustable: | Yes |
| Installation Orientation: |
Wall Mount - Vertical Wall Mount - Horizontal |
Downloads
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1352030 |
|
8.5W LED | 2700K | 80 | 78 | Dry | Wired In | - | - | - | - | - | ||
| 1352028 |
|
8.5W LED | 2700K | 80 | 78 | Dry | Wired In | - | - | - | - | - | ||
| 1352027 |
|
8.5W LED | 2700K | 80 | 78 | Dry | Wired In | - | - | - | - | - | ||
| 1352037 |
|
8.5W LED | 2700K | 80 | 78 | Dry | Cord Set | - | - | - | - | |||
| 1352035 |
|
8.5W LED | 2700K | 80 | 78 | Dry | Cord Set | - | - | - | - | |||
| 1352036 |
|
8.5W LED | 2700K | 80 | 78 | Dry | Cord Set | - | - | - | - | |||
| 1352034 |
|
8.5W LED | 2700K | 80 | 78 | Dry | Cord Set | - | - | - | - |
Configure your Edge Reader Mini
Finish: Matt Nickel
Power Connection Type
Choose the method of connecting this product to a power source.
Configure to select a product
