Kos Square 140 LED
Textured Grey 1326057

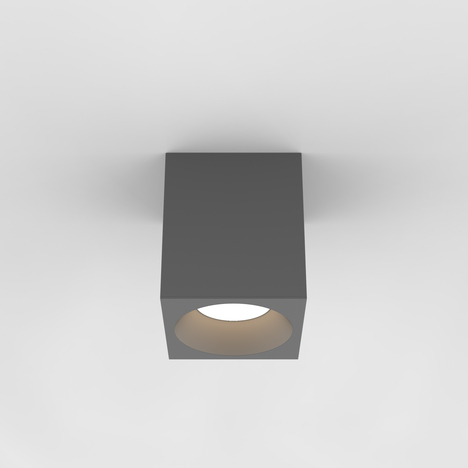

The Kos Square 140 LED 3000K surface-mounted downlight is an alternative to a recessed downlight, with perfect proportions that make it a feature in its own right. Designed for use indoors or out, it has a wet rating and a low-glare LED. It's available in textured grey, white or black.
To be phased out, prices are for in stock quantities only. Please get in touch for alternative recommendations.
spec overview
Lamp Included 11.8W LED Wet RatedTo maintain this product to its best condition, please view our care and cleaning guide.
All of our exterior products are covered by a 3 year guarantee; however this does not apply to any that are installed within 5 miles of the coast or in a high salt environment. For these environments, browse our Coastal Collection.
Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 950 |
| Color Temperature (K): | 3000 |
| CRI: | 90 |
| Beam Angle (°): | 36.0 |
| Max Lamp Type & Wattage: | 11.8W LED |
| Switched: | No |
| Dimmable: | Yes |
| Type Of Dimmer: | Phase - Leading & Trailing Edge |
| Driver Required: | No |
| Certification / Class: | cULus (Class 1) |
| Power Connection Type: | Wired In |
| Location Rating: | Wet |
| Fitting Method: | 4in Octagon Box |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.4 |
| Title 24 Compliant: | Yes - when installed outdoors |
| Installation Orientation: | Ceiling Mount |
Downloads
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | Location | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1326031 |
|
11.4W LED | 2700K | 90 | 721 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326058 |
|
11.8W LED | 3000K | 90 | 950 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326029 |
|
11.4W LED | 2700K | 90 | 721 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326053 |
|
11.8W LED | 3000K | 90 | 950 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326030 |
|
11.4W LED | 2700K | 90 | 721 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326059 |
|
11.8W LED | 3000K | 90 | 950 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | Location | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1326034 |
|
11.4W LED | 2700K | 90 | 721 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326032 |
|
11.4W LED | 2700K | 90 | 721 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326054 |
|
11.7W LED | 3000K | 90 | 694 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 25.6 | - | - | - |
| 1326033 |
|
11.4W LED | 2700K | 90 | 721 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326056 |
|
11.8W LED | 3000K | 90 | 950 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | Location | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1326049 |
 |
7.2W LED | 2700K | 90 | 458 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 35.4 | - | - | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | Location | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1326050 |
|
7.2W LED | 2700K | 90 | 458 | Wet | Wired In | Lamp Dependent | - | - | 35.4 | - | - | - |
Configure your Kos Square 140 LED
Finish: Textured Grey
Color Temperature
Choose your preferred light temperature for your product.
Configure to select a product
