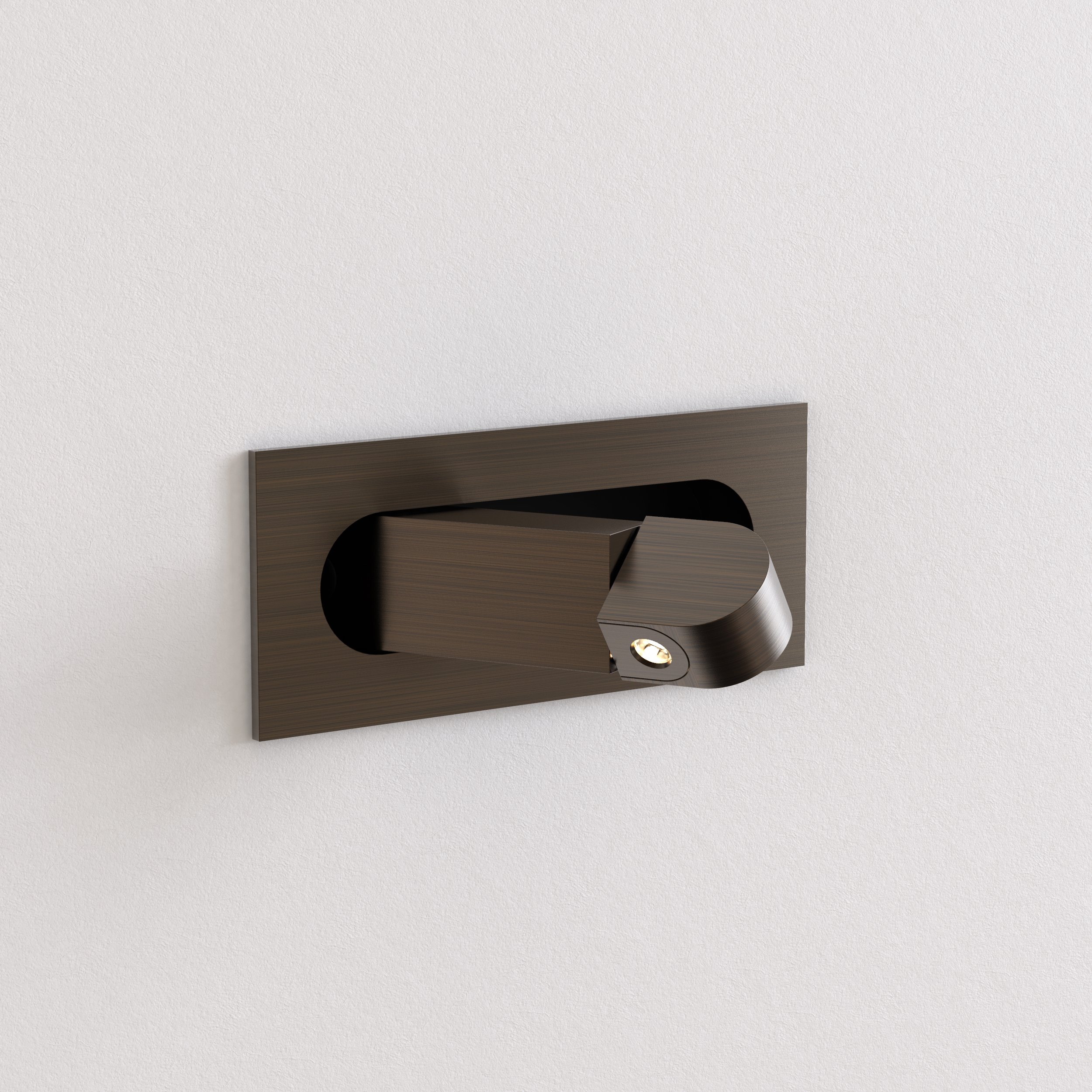

Digit LED
Bronze 1323016
This product is also available with cord set for headboard mounting (minimum order quantities apply). Please see the configure option below to view.
spec overview
Lamp Included 3.1W LED 139LM 2700K Dry RatedTo maintain this product to its best condition, please view our care and cleaning guide.
Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 139 |
| Color Temperature (K): | 2700 |
| CRI: | 90 |
| Beam Angle (°): | 27.0 |
| Max Lamp Type & Wattage: | 3.1W LED |
| Switched: | Yes |
| Dimmable: | No |
| Driver Required: | No |
| Certification / Class: | cULus (Class 1) |
| Power Connection Type: | Wired In |
| Location Rating: | Dry |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4 |
| IC Rated: | Yes |
| Direction Adjustable: | Yes |
| Recess Depth (in): | 2.76 |
| Cutout Shape: | Square |
| Cutout Length (in): | 2.76 |
| Cutout Width (in): | 6.89 |
Downloads
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1323029 |
|
3.1W LED | 2700K | 90 | 139 | Dry | Wired In | - | - | - | 27.0 | - | ||
| 1323009 |
|
3.1W LED | 2700K | 90 | 139 | Dry | Wired In | - | - | - | 27.0 | - | ||
| 1323005 |
|
3.1W LED | 2700K | 90 | 139 | Dry | Wired In | - | - | - | 27.0 | - | ||
| 1323035 |
|
3.1W LED | 2700K | 90 | 139 | Dry | Cord Set | - | - | - | 27.0 | |||
| 1323033 |
|
3.1W LED | 2700K | 90 | 139 | Dry | Cord Set | - | - | - | 27.0 | |||
| 1323036 |
|
3.1W LED | 2700K | 90 | 139 | Dry | Cord Set | - | - | - | 27.0 | |||
| 1323034 |
|
3.1W LED | 2700K | 90 | 139 | Dry | Cord Set | - | - | - | 27.0 | |||
| 1323032 |
|
3.1W LED | 2700K | 90 | 139 | Dry | Cord Set | - | - | - | 27.0 |
Configure your Digit
Finish: Bronze
Power Connection Type
Choose the method of connecting this product to a power source.
Configure to select a product
