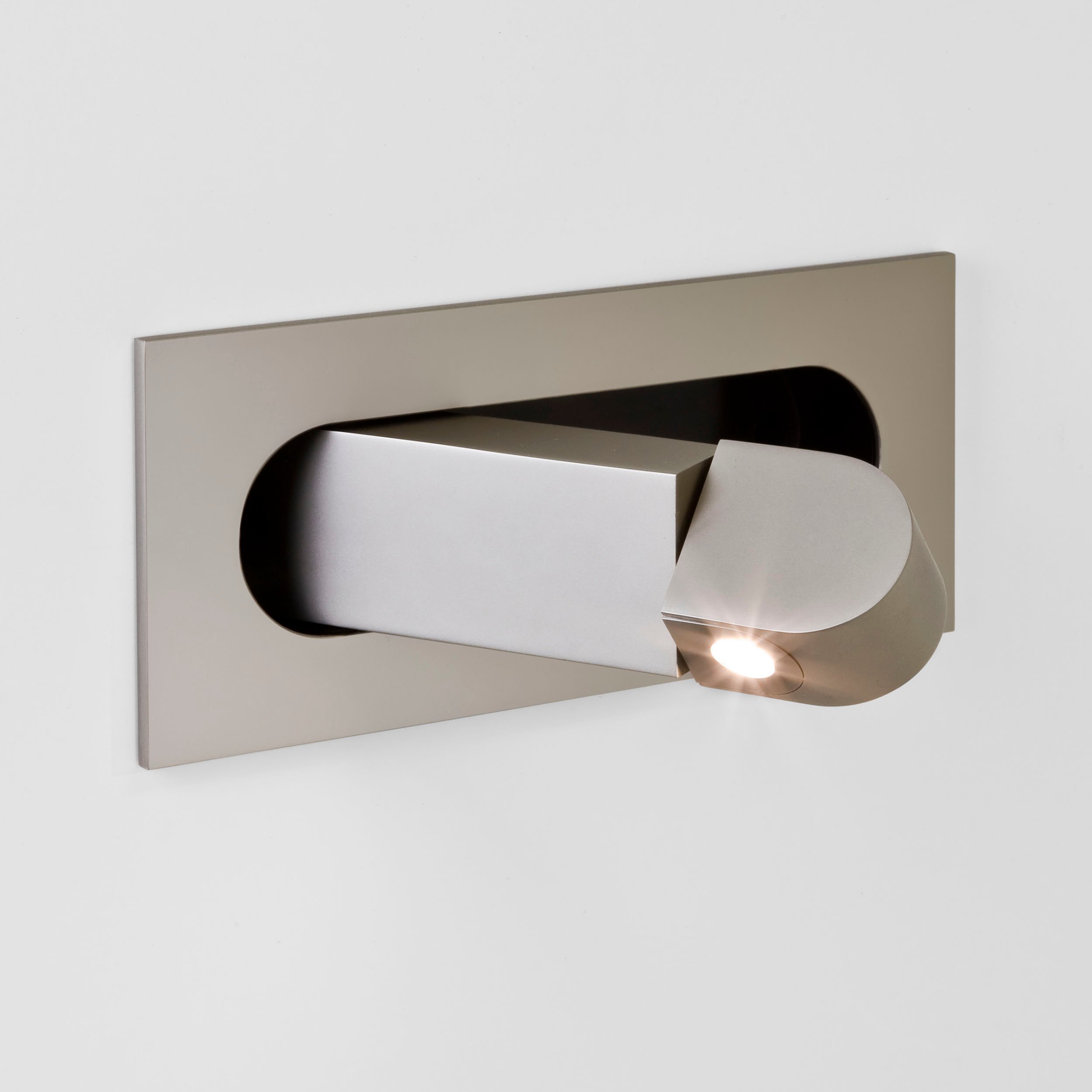

Digit LED

Matt Nickel 1323005

Lamp Required: No
Max Lamp Type & Wattage: 1 x 3W LED
Lumen Output (LM): 114.1
Color Temperature (K): 2700
Location Rating: Dry
Product Care and Cleaning Guide

To maintain this product to its best condition, please view our care and cleaning guide.

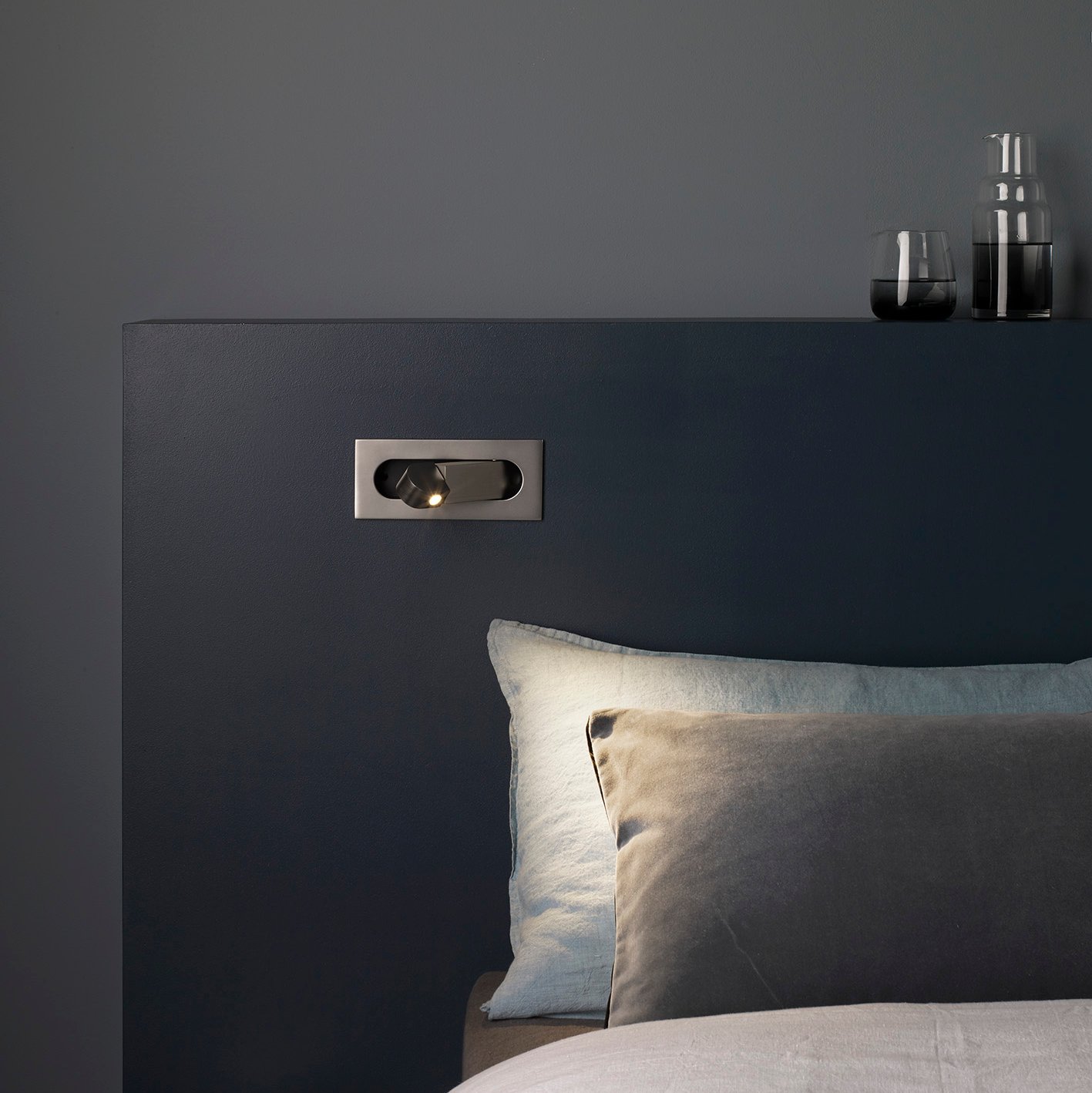

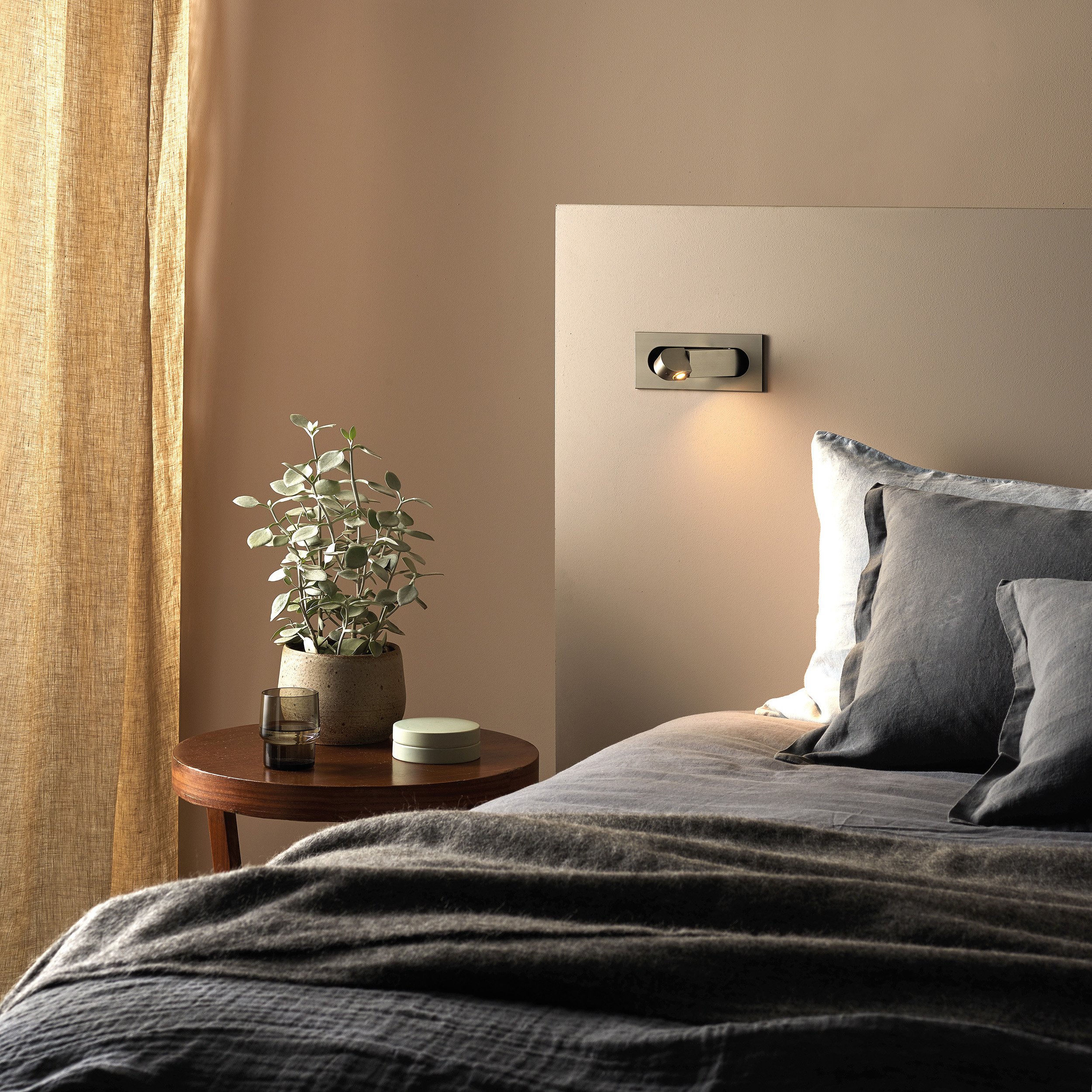

Available with cord set

This product is available with cord set for headboard mounting (minimum order quantities apply). UL approved. For datasheet and instructions see the product downloads section below. Please contact our sales team for more information.

Positioning Guide

For tips on optimizing installation position, please view our guide.

Specification

Lamp Required: No
Lumen Output (LM): 114.1
Color Temperature (K): 2700
CRI: 80
Beam Angle (°): 25.6
Max Lamp Type & Wattage: 1 x 3W LED
Switched: Yes
Dimmable: No
Driver Required: No
Certification / Class: cULus (Class 1)
Power Connection Type: Wired In
Location Rating: Dry
Fitting Method: Included Junction Box
ADA Compliant: Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4
IC Rated: Yes
Direction Adjustable: Yes
Installation Orientation: Wall Mount - Vertical
Wall Mount - Horizontal

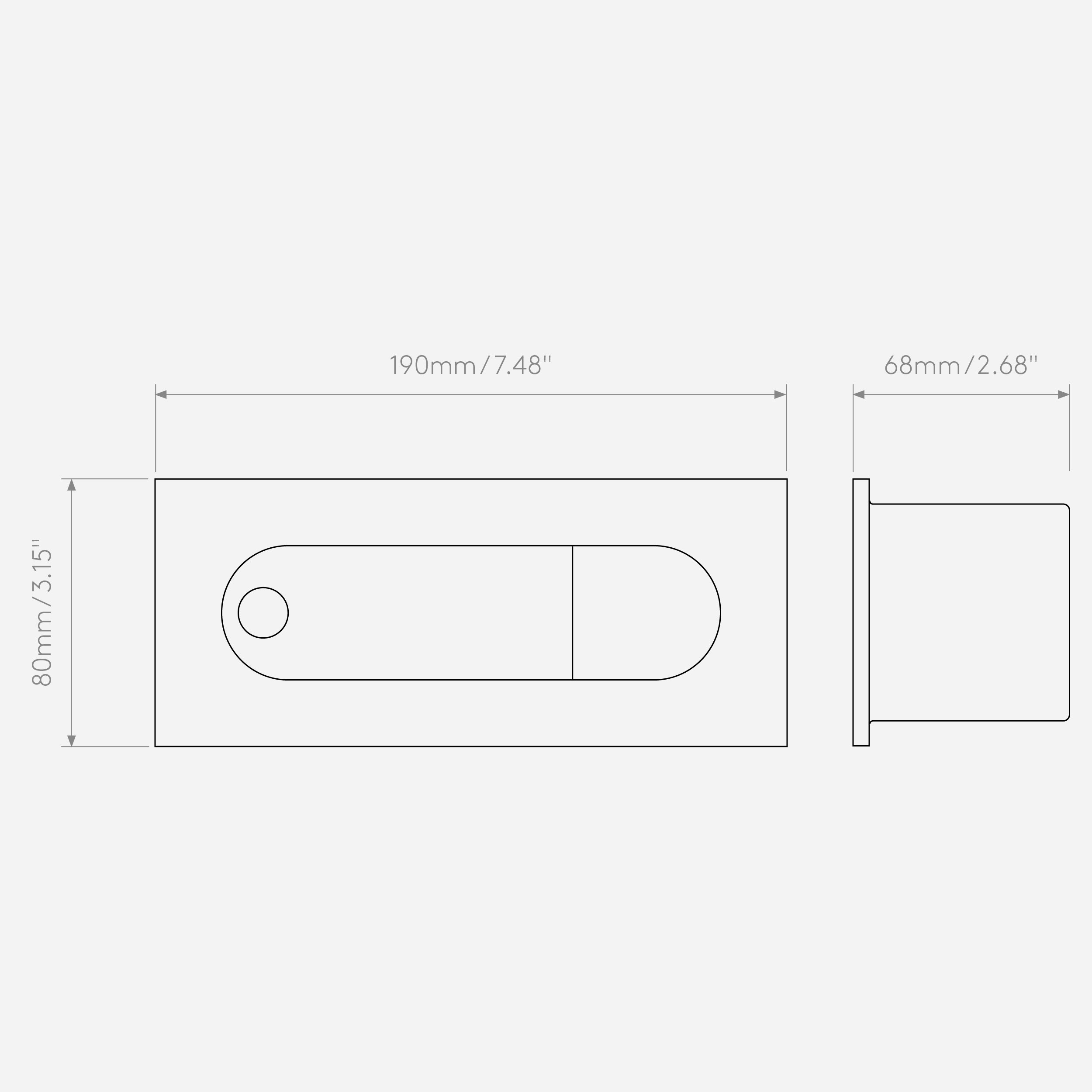

Recess Depth: 70
Cutout Shape: Square
Cutout Length (in): 2.76
Cutout Width (in): 6.89

More in the Collection
