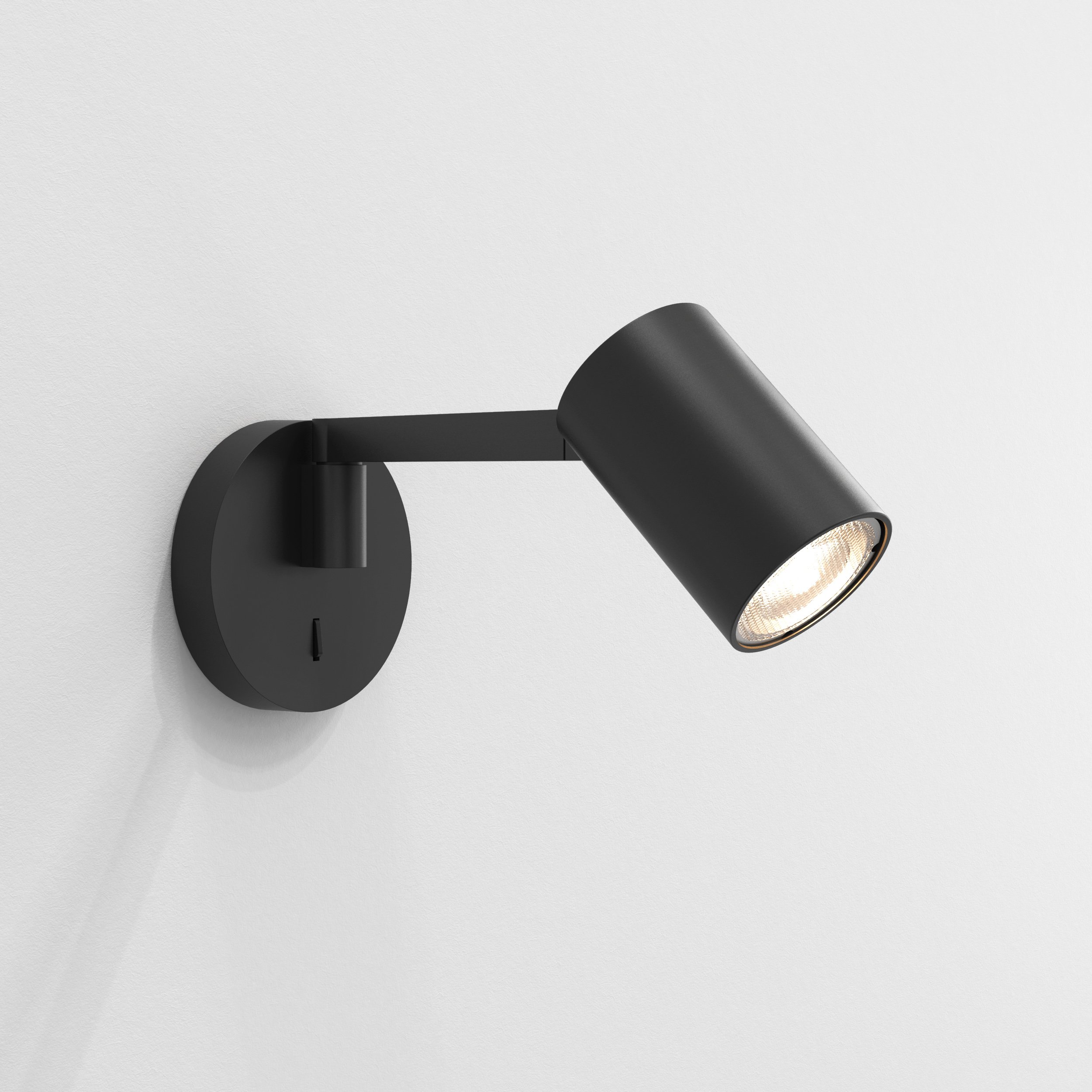

Ascoli Swing (1286122) in Matt Black - Product Image 1

Ascoli Swing (1286122) in Matt Black - Product Image 2

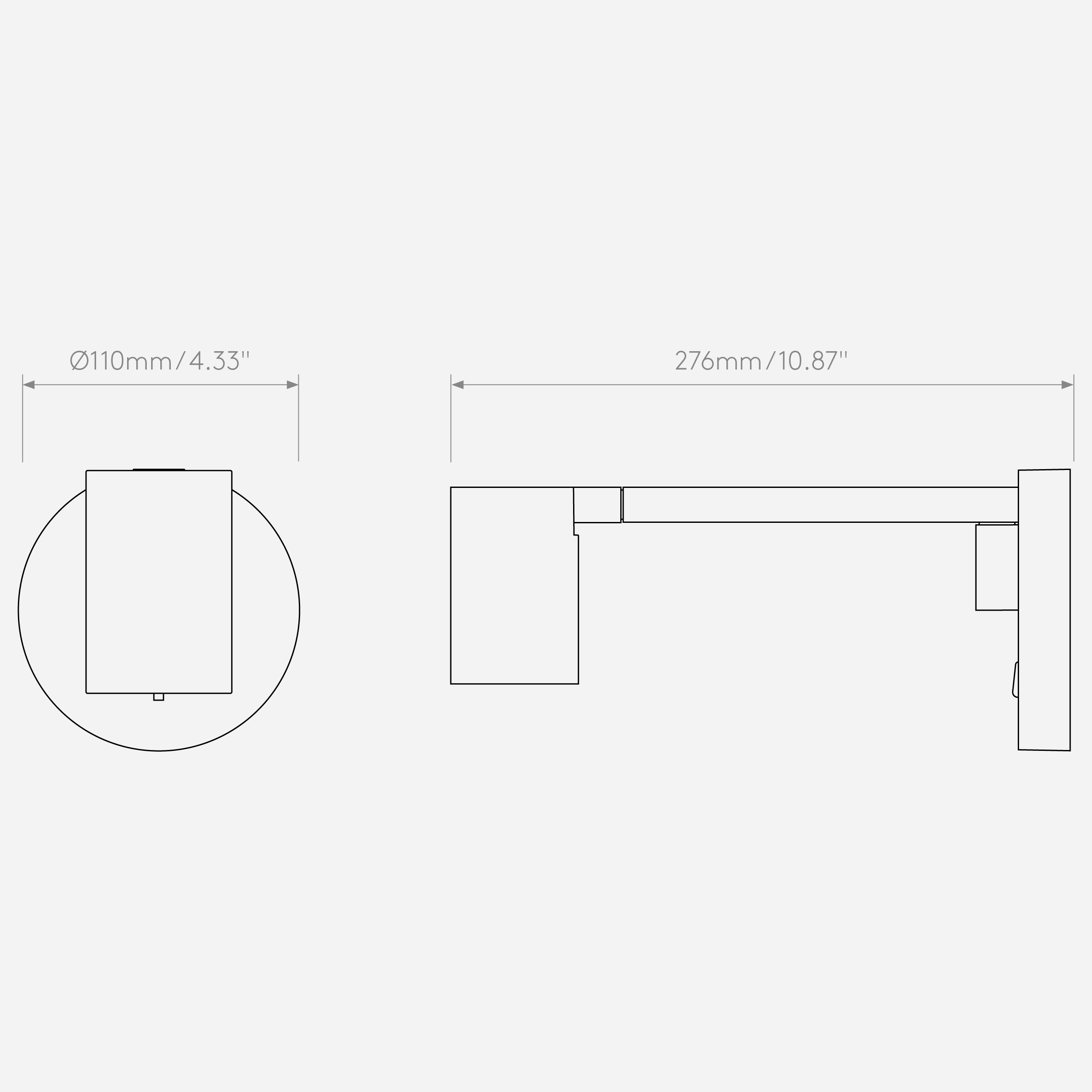

Ascoli Swing (1286122) in Matt Black - Technical Drawing

Ascoli Swing

Matt Black 1286122

Part of our popular Ascoli collection, this modern reading light offers up function without compromising on style. Crafted from durable steel, the Ascoli Swing features robust knuckle joints that pivot smoothly, to ensure illumination can be directed where needed.

Wired In

spec overview

Lamp sold separately 1 x 50W Max GU10 Dry Rated

full spec

Where to Buy

Product Care and Cleaning Guide

To maintain this product to its best condition, please view our care and cleaning guide.

Positioning Guide

All Astro reading lights are fully adjustable but careful consideration of placement when installing our fixtures can help further optimise reading comfort when in use. Download our positioning guide to learn more.

Astro Ascoli Desk light, in Bronze finish

Play

Specification

Lamp Required:	Yes
Lumen Output (LM):	Lamp Dependent
Color Temperature (K):	Lamp Dependent
Max Lamp Type & Wattage:	1 x 50W Max GU10
Maximum Lamp Length (in):	2.24
Switched:	Yes
Dimmable:	No
Driver Required:	No
Certification / Class:	cULus (Class 1)
Power Connection Type:	Wired In
Location Rating:	Dry
Fitting Method:	4in Octagon Box Stub Out Mount
ADA Compliant:	Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4
Direction Adjustable:	Yes
Installation Orientation:	Wall Mount

Downloads

Datasheet

Instructions

Revit File

DWG File

View compatible lamps

Lamp GU10 LED 5.5W 2700K Dimmable T20/JA8

6004113

New

Ascoli Swing Plug-In

Matt Black | 1286140

Ascoli Swing Plug-In

Code	Finish	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1286140		6W Max LED GU10	-	-	Lamp Dependent	Dry	-	-	-	-	-			-
1286139		6W Max LED GU10	-	-	Lamp Dependent	Dry	-	-	-	-	-			-

Info

Ascoli Single Switched (1286038) in Textured White

Ascoli Wall

Textured White | 1286038

Ascoli Wall

New

Ascoli Wall

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1286043	6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	-	-	-	-	-
1286121	6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	-	-	-	-	-
1286048	6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	-	-	-	-	-
1286038	6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	-	-	-	-	-
1286106	6W Max LED GU10	-	-	Lamp Dependent	Dry	Cord Set	-	-	-	-
1286105	6W Max LED GU10	-	-	Lamp Dependent	Dry	Cord Set	-	-	-	-
1286103	6W Max LED GU10	-	-	Lamp Dependent	Dry	Cord Set	-	-	-	-

Info

Ascoli Swing

Textured White | 1286068

Ascoli Swing

New

Ascoli Swing

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1286070	6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	-	-	-	-	-
1286069	6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	-	-	-	-	-
1286068	6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	-	-	-	-	-
1286108	6W Max LED GU10	-	-	Lamp Dependent	Dry	Cord Set	-	-	-	-
1286107	6W Max LED GU10	-	-	Lamp Dependent	Dry	Cord Set	-	-	-	-
1286104	6W Max LED GU10	-	-	Lamp Dependent	Dry	Cord Set	-	-	-	-

Info

Ascoli Desk

Matt Nickel | 1286110

Ascoli Desk

New

Ascoli Desk

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1286109	6W Max LED GU10	-	-	Lamp Dependent	Dry	Plug In	-	-	-	-	-
1286135	6W Max LED GU10	-	-	Lamp Dependent	Dry	Plug In	-	-	-	-	-
1286110	6W Max LED GU10	-	-	Lamp Dependent	Dry	Plug In	-	-	-	-	-
1286111	6W Max LED GU10	-	-	Lamp Dependent	Dry	Plug In	-	-	-	-	-

Info

Ascoli Floor

Matt Nickel | 1286113

Ascoli Floor

New

Ascoli Floor

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1286112	6W Max LED GU10	-	-	Lamp Dependent	Dry	Plug In	-	-	-	-	-
1286136	6W Max LED GU10	-	-	Lamp Dependent	Dry	Plug In	-	-	-	-	-
1286113	6W Max LED GU10	-	-	Lamp Dependent	Dry	Plug In	-	-	-	-	-
1286114	6W Max LED GU10	-	-	Lamp Dependent	Dry	Plug In	-	-	-	-	-

Info

Ascoli Surface

Matt Black | 1286120

Ascoli Surface

New

Ascoli Surface

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1286042	6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286120	6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286047	6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286037	6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-

Info

Ascoli Triple Round

Bronze | 1286044

Ascoli Triple Round

New

Ascoli Triple Round

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1286044	3 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286119	3 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286049	3 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286039	3 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-

Info

Ascoli Triple Bar

Textured White | 1286040

Ascoli Triple Bar

New

Ascoli Triple Bar

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1286045	3 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286117	3 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286050	3 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286040	3 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-

Info

Ascoli Four Bar

Matt Nickel | 1286051

Ascoli Four Bar

New

Ascoli Four Bar

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1286046	4 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286116	4 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286051	4 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286041	4 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-

Info

Ascoli Twin Surface

Matt Nickel | 1286074

Ascoli Twin Surface

New

Ascoli Twin Surface

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1286073	2 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286118	2 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286074	2 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286072	2 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-

Info

Ascoli Five Bar

Matt Black | 1286115

Ascoli Five Bar

New

Ascoli Five Bar

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1286076	5 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286115	5 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286075	5 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-	-
1286077	5 x 6W Max LED GU10	-	-	Lamp Dependent	Dry	Wired In	Lamp Dependent	-	-	-	-
