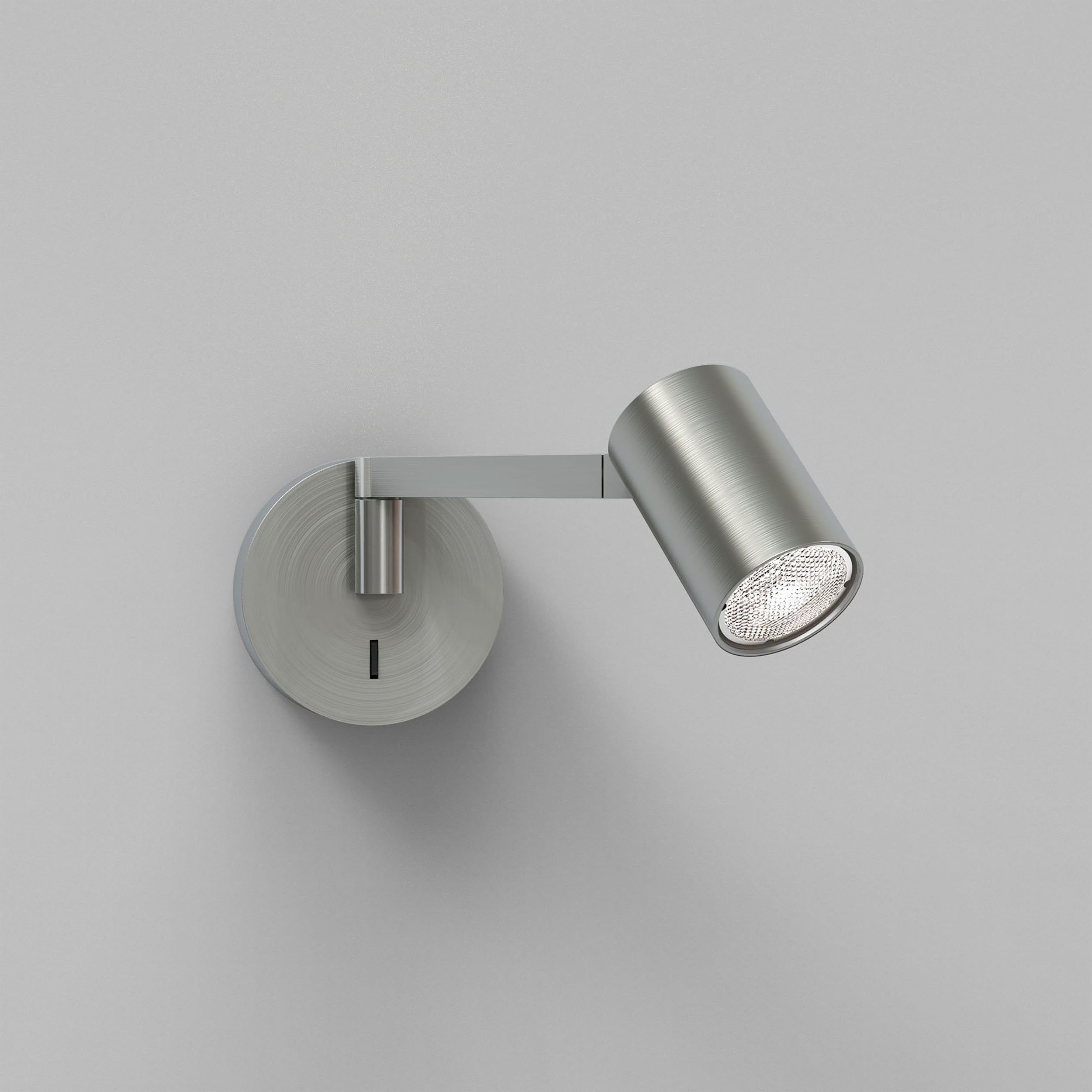

Ascoli Swing

Matt Nickel 1286069

Bronze finish swatch Matt black finish swatch Matt nickel finish swatch Textured white finish swatch

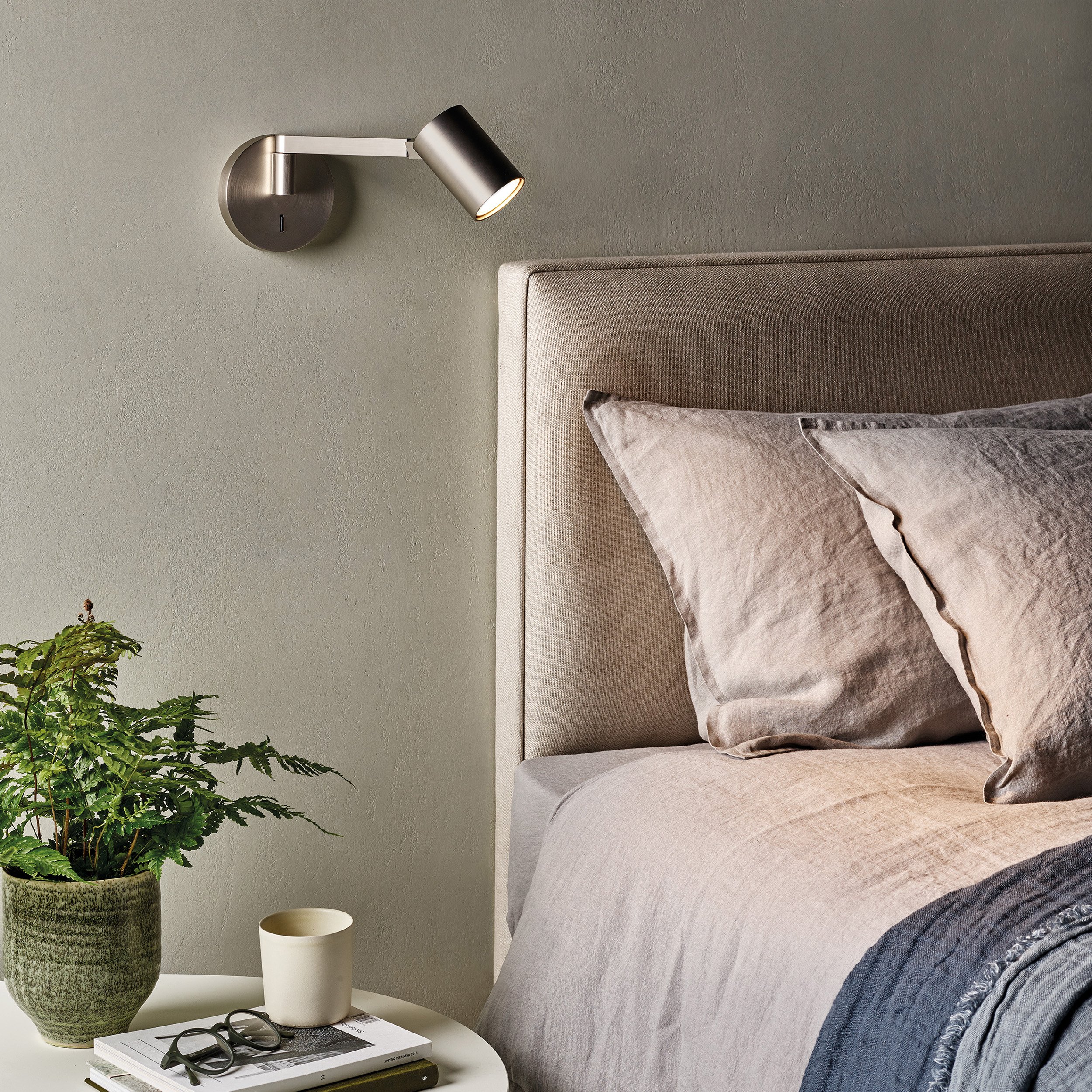

Part of our popular Ascoli collection, this modern reading light offers up function without compromising on style. Crafted from durable steel, the Ascoli Swing features robust knuckle joints that pivot smoothly, to ensure illumination can be directed where needed.

This product is also available with cord set for headboard mounting (minimum order quantities apply). Please see the configure option below to view.

Wired In

spec overview

Lamp sold separately 1 x 50W Max GU10 Dry Rated
Full spec
Where to Buy Project Enquiry
Product Care and Cleaning Guide

To maintain this product to its best condition, please view our care and cleaning guide.

Specification

Lamp Required: Yes
Max Lamp Type & Wattage: 1 x 50W Max GU10
Maximum Lamp Length (in): 2.24
Switched: Yes
Dimmable: No
Driver Required: No
Certification / Class: cULus (Class 1)
Power Connection Type: Wired In
Location Rating: Dry
Fitting Method: 4in Octagon Box
Stub Out Mount
ADA Compliant: Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4
Direction Adjustable: Yes
Installation Orientation: Wall Mount

Downloads

Datasheet
Instructions
Revit File
DWG File
Instructions
