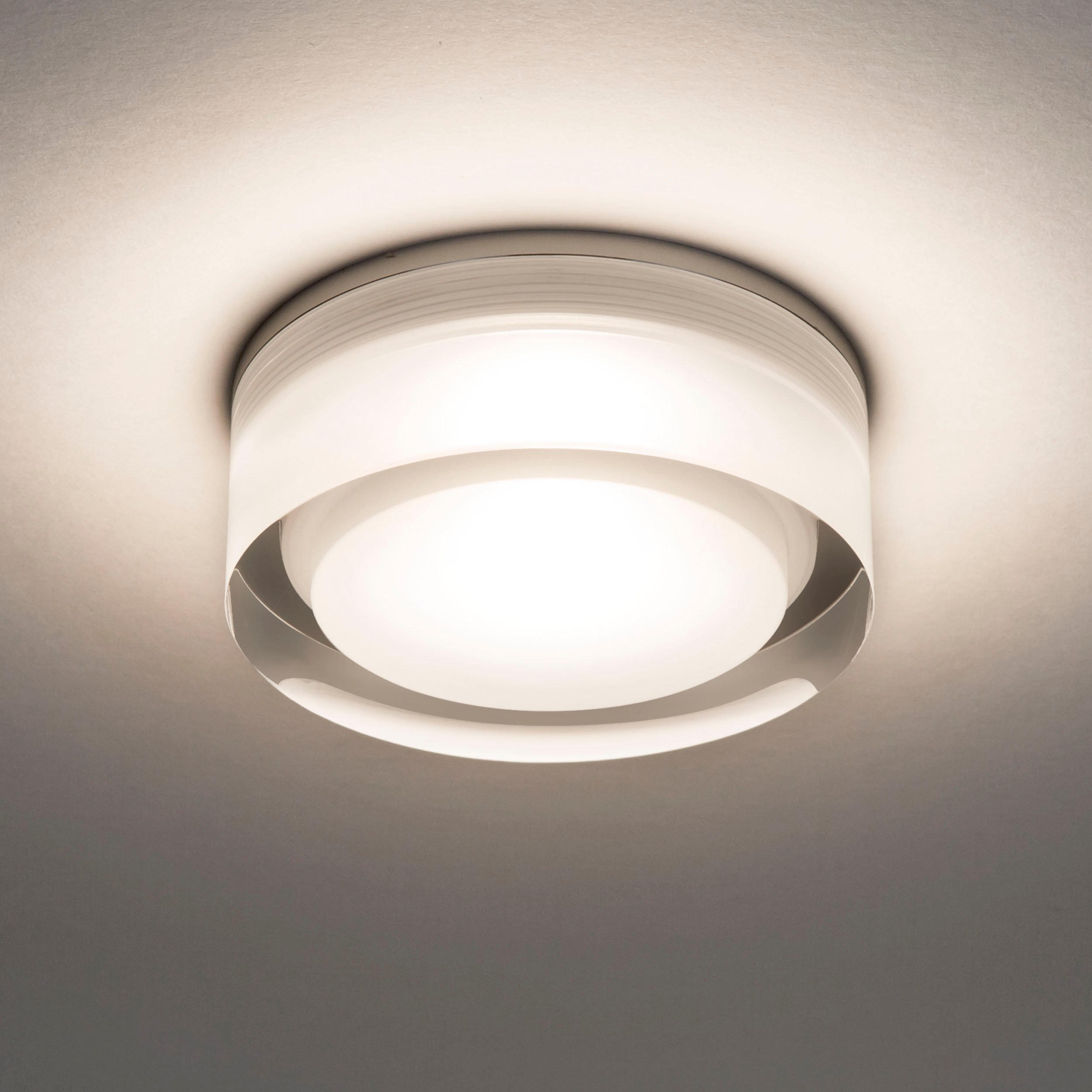

Vancouver Round 90 LED
Clear Acrylic 1229012
| Lamp Required: | No |
|---|---|
| Max Lamp Type & Wattage: | 1 x 6W LED |
| Location Rating: | Wet |
Product Care and Cleaning Guide
To maintain this product to its best condition, please view our care and cleaning guide.
Driver Calculator and Driver Guide
To ensure you have the correct amount of fittings per driver, please refer to our driver calculator. Alternatively, for more information on drivers, download our Advanced Guide to LED Lights & Drivers.
Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 680.9 |
| Color Temperature (K): | 3000 |
| CRI: | 80 |
| Max Lamp Type & Wattage: | 1 x 6W LED |
| Switched: | No |
| Dimmable: | Yes |
| Type Of Dimmer: | Control Gear Dependent |
| Driver Required: | Constant Current 350mA |
| Certification / Class: | cETLus (Class 2) |
| Power Connection Type: | Wired In |
| Location Rating: | Wet |
| Fitting Method: | Recessed in Drywall Ceiling |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.4 |
| IC Rated: | No |
| Installation Orientation: | Ceiling Mount |

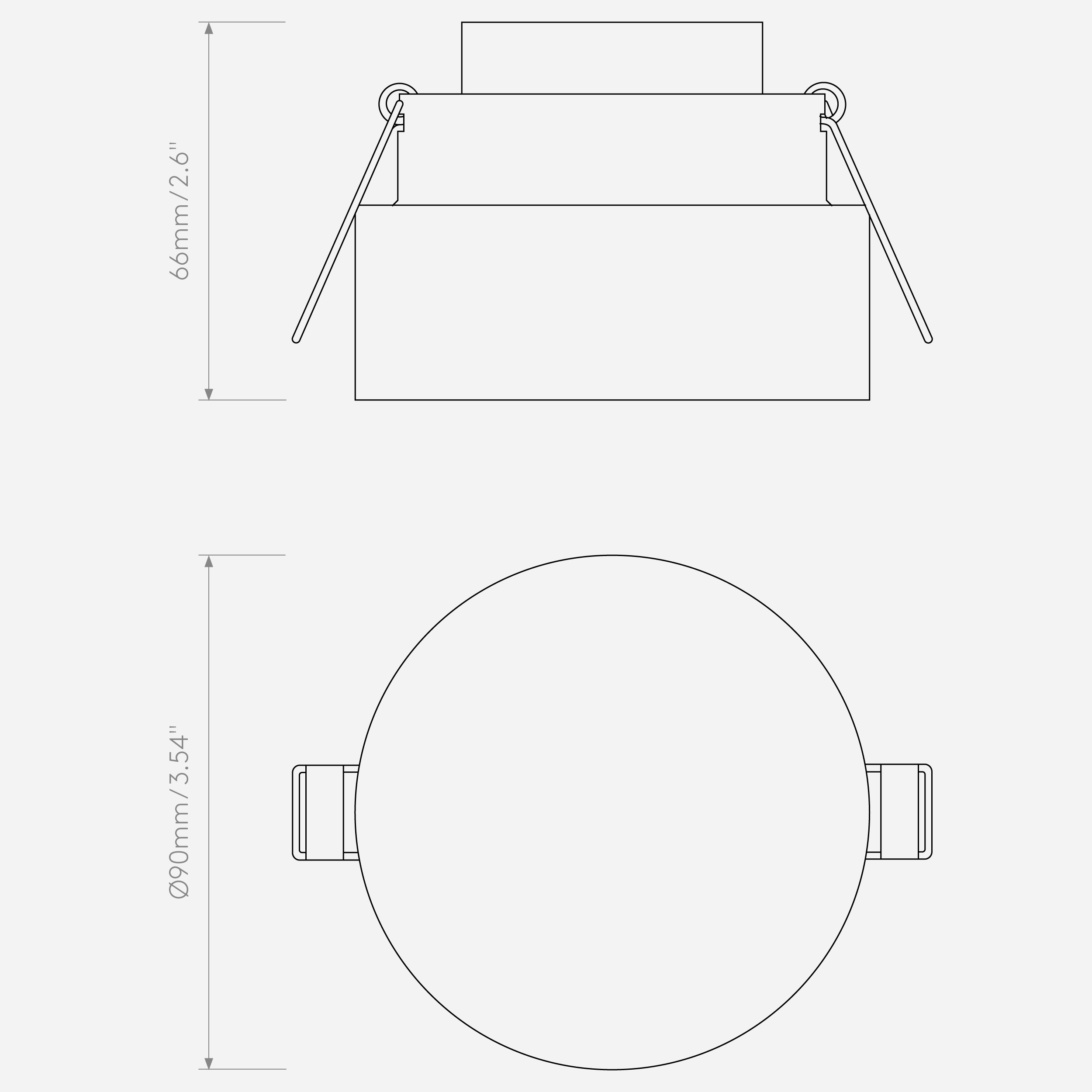

| Recess Depth: | 86 |
| Cutout Shape: | Round |
| Hole Saw Diameter: | 79mm / 3-1/8in |
Downloads
Find a compatible driver
We provide an easy-to-use online tool to calculate which LED drivers are compatible with your chosen luminaire. Follow the steps to determine the right driver for you.
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | Location |
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1229013 |
|
6W LED | 3000K | 80 | 755.0 | Wet | - | - | - | - |
