Fuse 3 USB C
Matt Nickel 1215158

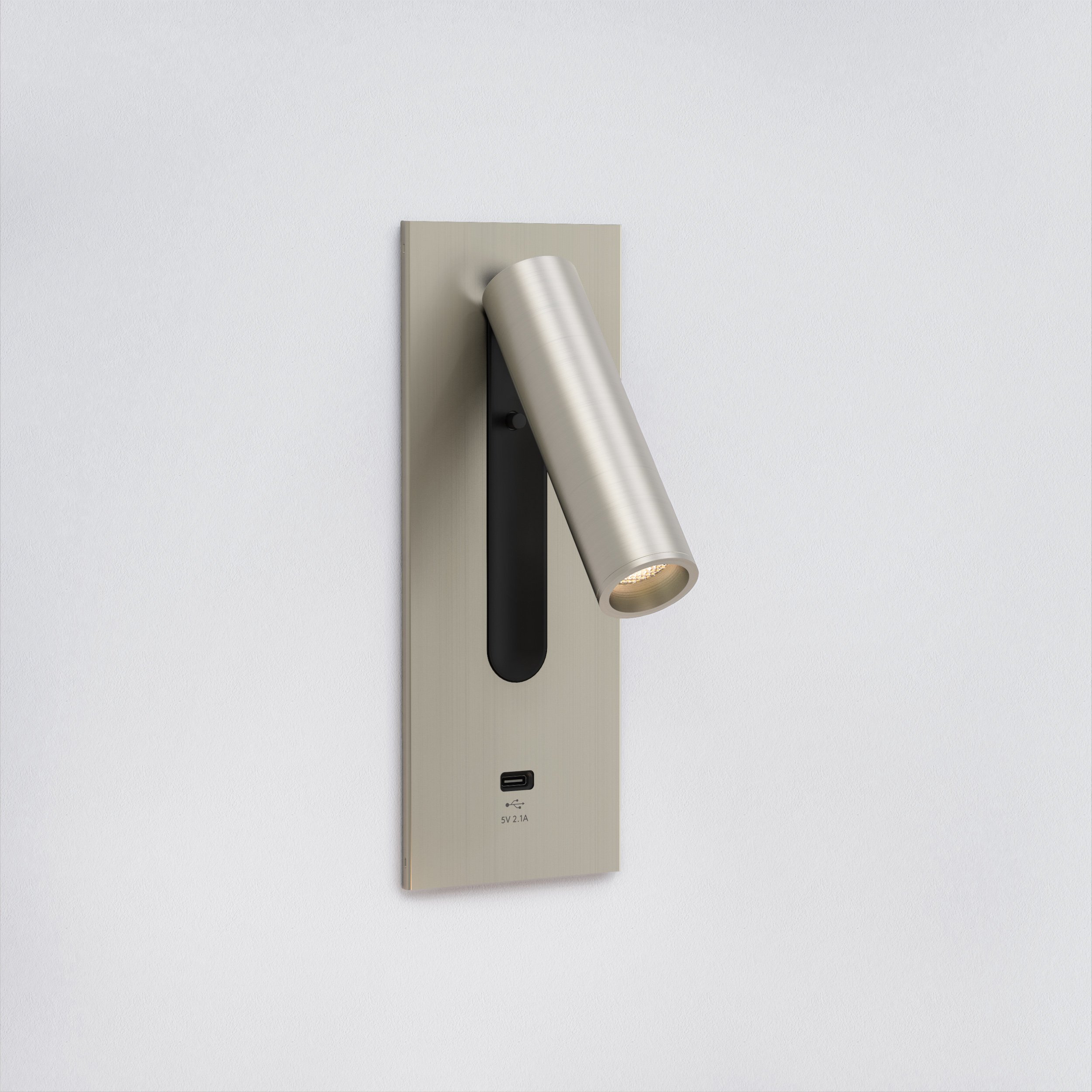

Thanks to its clean lines and high level of visual comfort, the Fuse is one of our most popular reading lights. This version features a USB port and concealed micro switch that automatically turns the light off when it's pushed back to its central resting place.
spec overview
Lamp Included 3.3W LED 141LM 2700K Dry Rated Charger: USB-CMade to Order
To maintain this product to its best condition, please view our care and cleaning guide.
This product is available with cord set for headboard mounting (minimum order quantities apply). UL approved. For datasheet and instructions see the product downloads section below. Please contact our sales team for more information.
All Astro reading lights are fully adjustable but careful consideration of placement when installing our fixtures can help further optimise reading comfort when in use. Download our positioning guide to learn more.
Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 141 |
| Color Temperature (K): | 2700 |
| CRI: | 90 |
| Beam Angle (°): | 17.6 |
| Max Lamp Type & Wattage: | 3.3W LED |
| Switched: | Yes |
| Dimmable: | No |
| Driver Required: | No |
| Certification / Class: | cULus (Class 1) |
| Power Connection Type: | Wired In |
| Location Rating: | Dry |
| Fitting Method: | Included Junction Box |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4 |
| IC Rated: | Yes |
| Charger Port/Method: | USB-C |
| Charger Standard: | USB 2.0 |
| Max Output Current (A): | 2.1 |
| Max Output Voltage (V): | 5.0 |
| Max Output Power (W): | 10.5 |
| Direction Adjustable: | Yes |
| Installation Orientation: |
Wall Mount - Vertical Wall Mount Wall Mount - Horizontal |
| Recess Depth (in): | 2.76 |
| Cutout Shape: | Square |
| Cutout Length (in): | 7.64 |
| Cutout Width (in): | 2.64 |
Downloads
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1215090 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | - | |||
| 1215161 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | - | |||
| 1215087 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | - | |||
| 1215160 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | - | |||
| 1215101 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | - | |||
| 1215107 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | - | |||
| 1215086 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | - | |||
| 1215157 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | - | |||
| 1215088 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | - | |||
| 1215095 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1215092 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1215111 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | - | 17.6 | - | ||
| 1215102 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1215114 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | - | 17.6 | - | ||
| 1215094 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1215091 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1215093 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1215108 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | ||||
| 1215166 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | ||||
| 1215105 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | ||||
| 1215165 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | ||||
| 1215109 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | ||||
| 1215159 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | ||||
| 1215164 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | ||||
| 1215089 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | ||||
| 1215163 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | ||||
| 1215104 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | ||||
| 1215162 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | ||||
| 1215106 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | ||||
| 1215115 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | - | 17.6 | |||
| 1215113 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | - | 17.6 | |||
| 1215110 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | - | 17.6 | |||
| 1215112 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | - | 17.6 |
