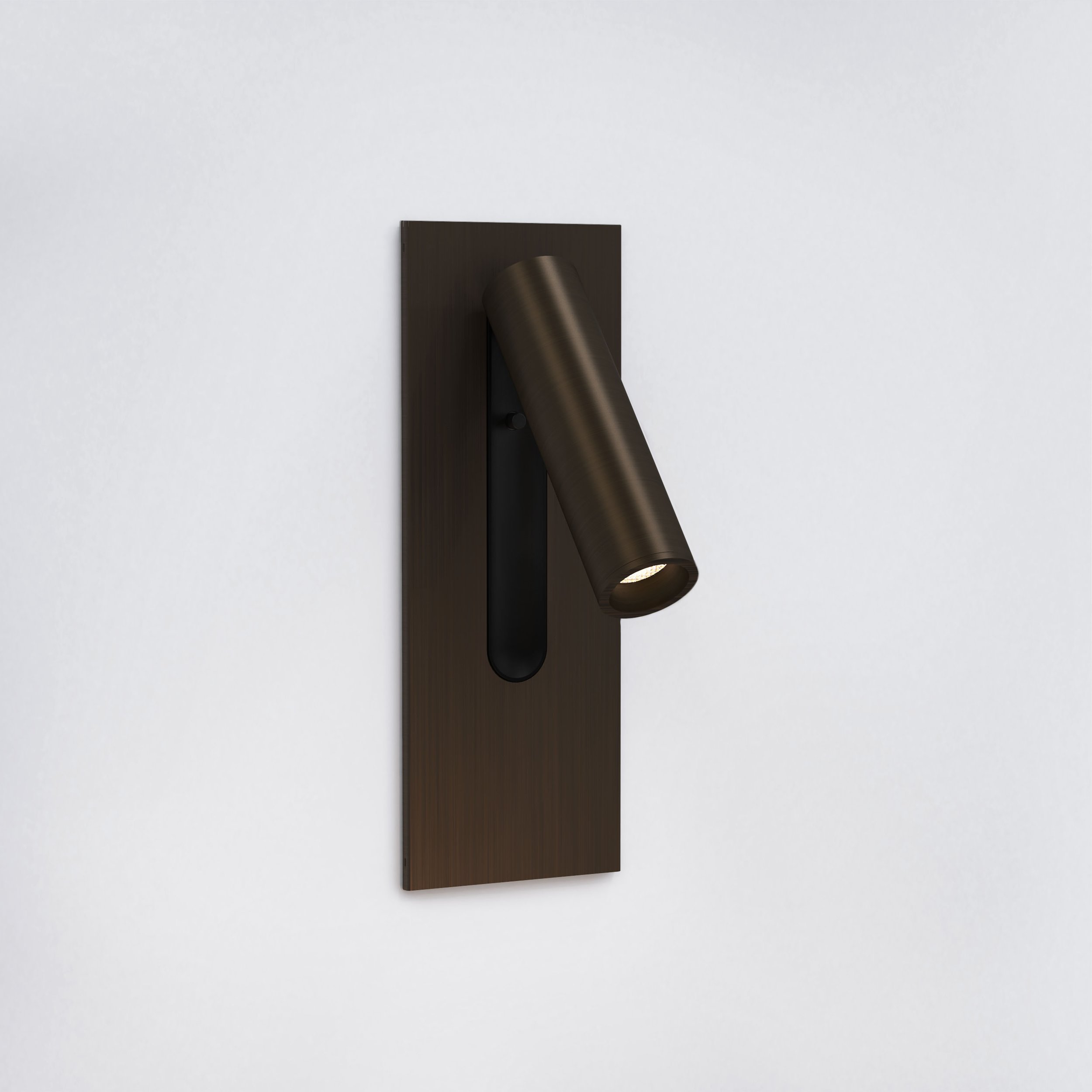

Fuse 3 (Cord Set)
Bronze 1215115
spec overview
Lamp Included 3.3W LED 141LM 2700K Dry RatedTo maintain this product to its best condition, please view our care and cleaning guide.

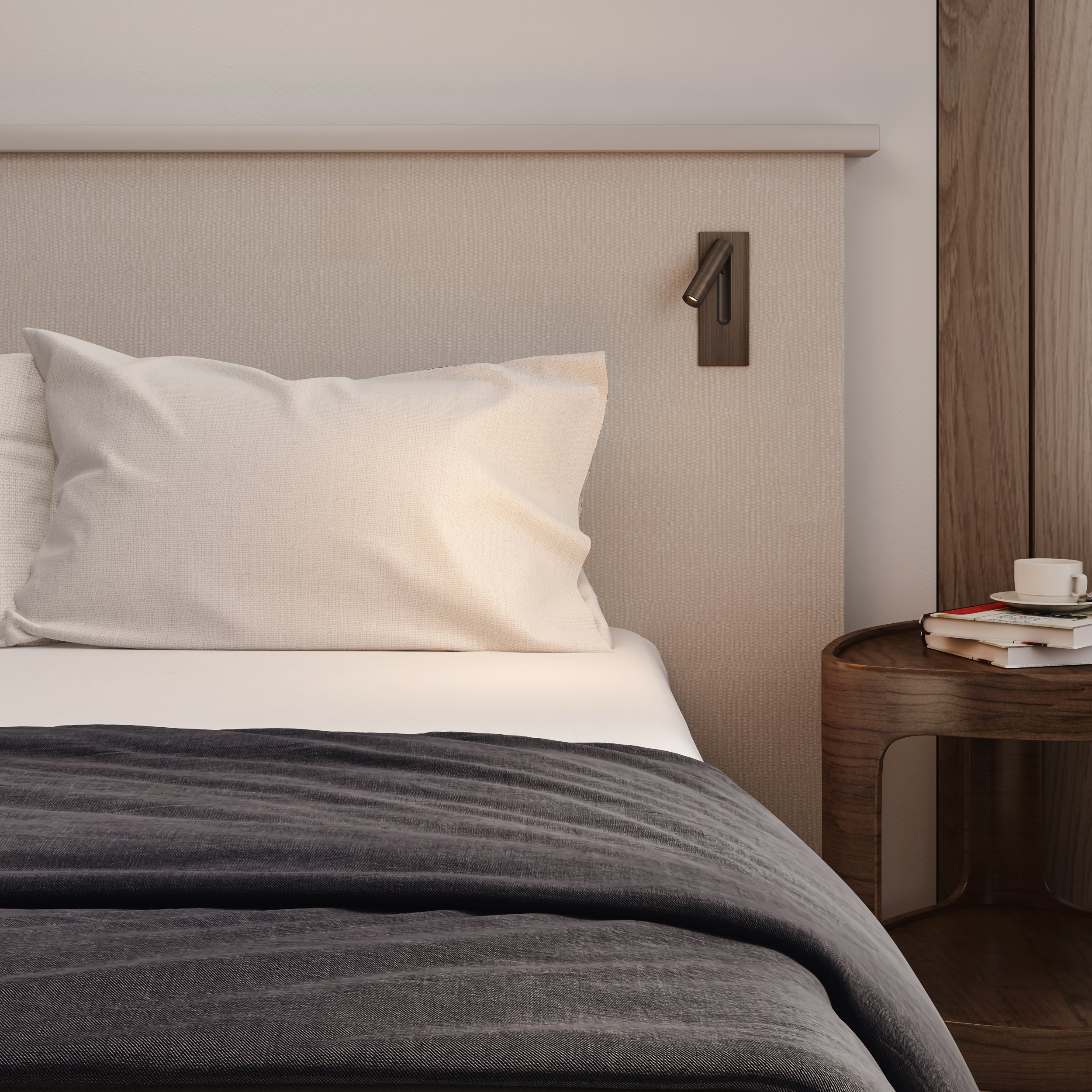

This product is supplied with a cord and plug for headboard mounting (minimum order quantities apply). Please contact our sales team for more information.
All Astro reading lights are fully adjustable but careful consideration of placement when installing our fixtures can help further optimise reading comfort when in use. Download our positioning guide to learn more.
Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 141 |
| Color Temperature (K): | 2700 |
| CRI: | 90 |
| Beam Angle (°): | 17.6 |
| Max Lamp Type & Wattage: | 3.3W LED |
| Switched: | Yes |
| Dimmable: | No |
| Driver Required: | No |
| Certification / Class: | cULus (Class 1) |
| Power Connection Type: | Cord Set |
| Location Rating: | Dry |
| Fitting Method: | Included Junction Box |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4 |
| IC Rated: | Yes |
| Direction Adjustable: | Yes |
| Installation Orientation: |
Wall Mount - Vertical Wall Mount Wall Mount - Horizontal |

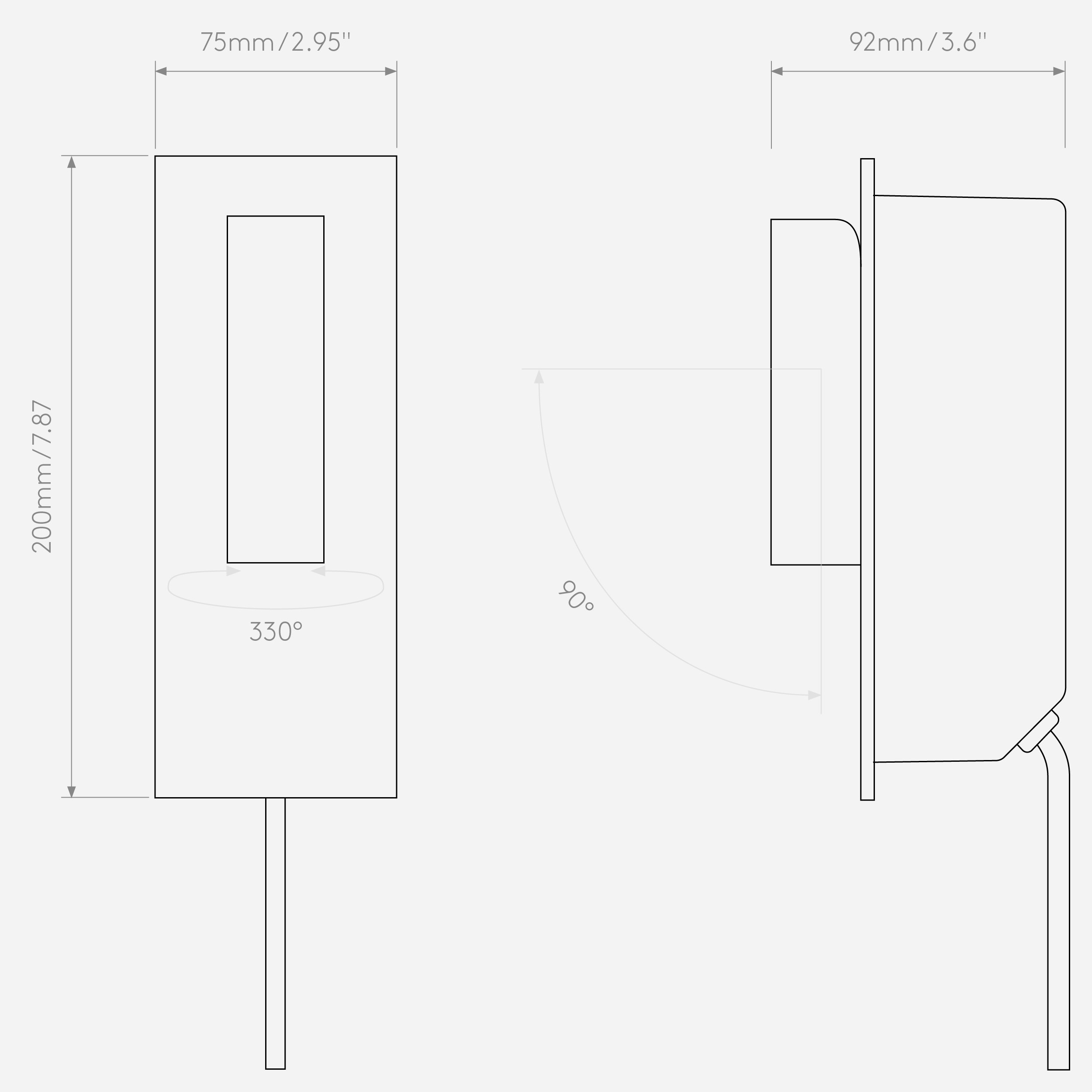

| Recess Depth (in): | 2.36 |
| Cutout Shape: | Oval |
| Cutout Length (in): | 7.09 |
| Cutout Width (in): | 2.13 |
Downloads
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1215090 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | - | |||
| 1215087 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | - | |||
| 1215101 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | - | |||
| 1215109 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | - | |||
| 1215089 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | - | |||
| 1215107 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | - | |||
| 1215086 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | - | |||
| 1215088 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | 17.6 | - | |||
| 1215095 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1215092 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1215111 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | - | 17.6 | - | ||
| 1215102 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1215114 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | - | 17.6 | - | ||
| 1215094 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1215113 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | - | 17.6 | - | ||
| 1215091 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1215093 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Wired In | - | - | - | 17.6 | - | ||
| 1215108 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | ||||
| 1215105 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | ||||
| 1215104 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | ||||
| 1215106 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | 17.6 | ||||
| 1215110 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | - | 17.6 | |||
| 1215112 |
|
3.3W LED | 2700K | 90 | 141 | Dry | Cord Set | - | - | - | 17.6 |
