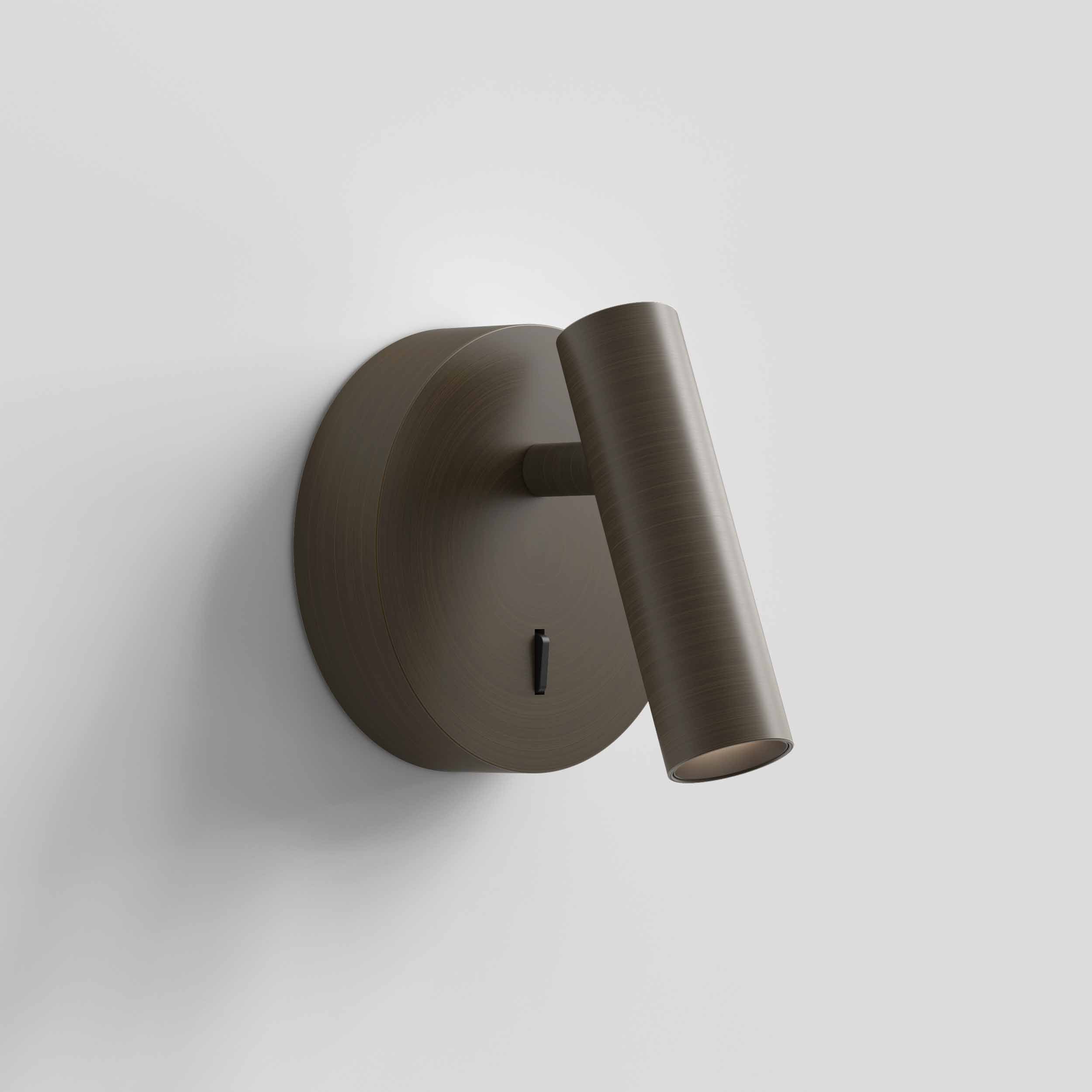

Enna Surface Round LED (1058126) in Bronze - Product Image 1

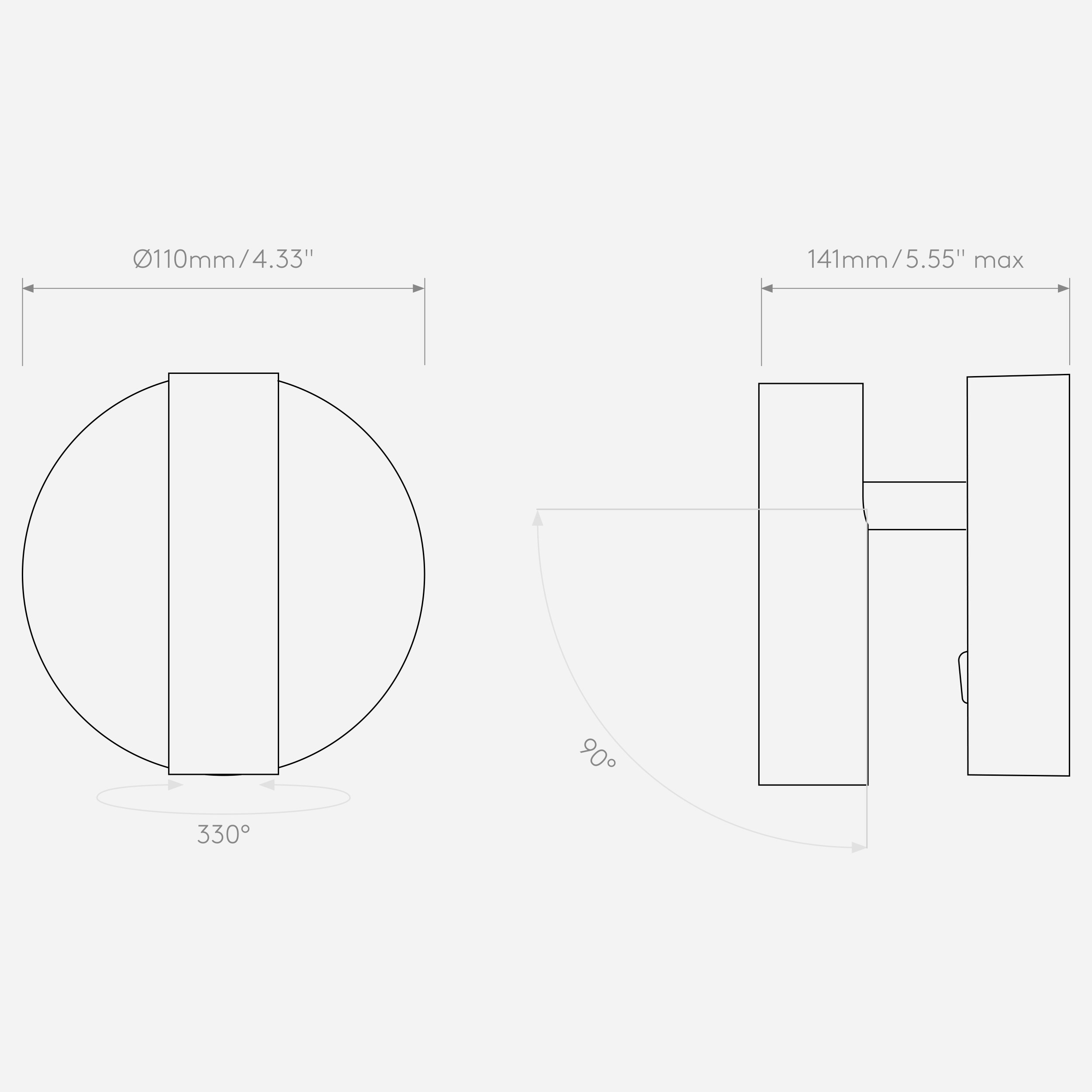

Enna Surface Round LED (1058126) in Bronze - Technical Drawing

Enna Surface Round LED

Bronze 1058126

Wired In

spec overview

Lamp Included 3.3W LED 144LM 2700K Dry Rated

full spec

Where to Buy

Product Care and Cleaning Guide

To maintain this product to its best condition, please view our care and cleaning guide.

Available with cord set

This product is available with cord set for headboard mounting (minimum order quantities apply). UL approved. For datasheet and instructions see the product downloads section below. Please contact our sales team for more information.

Positioning Guide

All Astro reading lights are fully adjustable but careful consideration of placement when installing our fixtures can help further optimise reading comfort when in use. Download our positioning guide to learn more.

Astro Enna Twin reading light, in Matt Gold

Play

Specification

Lamp Required:	No
Lumen Output (LM):	144
Color Temperature (K):	2700
CRI:	90
Beam Angle (°):	17.6
Max Lamp Type & Wattage:	3.3W LED
Switched:	Yes
Dimmable:	No
Driver Required:	No
Certification / Class:	cULus (Class 1)
Power Connection Type:	Wired In
Location Rating:	Dry
Fitting Method:	4in Octagon Box Stub Out Mount
ADA Compliant:	Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4
Direction Adjustable:	Yes
Installation Orientation:	Wall Mount

Downloads

Datasheet

Instructions

Photometric Data

Revit File

DWG File

New

Enna Desk

Matt Black | 1058211

Enna Desk

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1058211	4.4W LED	2700K	90	164	Dry	Plug In	-		-	38.4	-
1058217	4.4W LED	2700K	90	164	Dry	Plug In	-		-	38.4	-
1058216	4.4W LED	2700K	90	164	Dry	Plug In	-		-	38.4	-
1058215	4.4W LED	2700K	90	164	Dry	Plug In	-		-	38.4	-
1058093	3.9W LED	2700K	90	102.0	Dry	Plug In	-	-	-	-	-
1058037	3.9W LED	3000K	80	102.0	Dry	Plug In	-	-	-	-	-
1058094	3.3W LED	2700K	90	144	Dry	Plug In	-	-	-	17.6	-
1058092	3.3W LED	2700K	90	144	Dry	Plug In	-	-	-	17.6	-

Info

Enna Surface USB

Matt White | 1058163

Enna Surface USB

New

Enna Surface USB

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1058188	3.2W LED	2700K	90	131	Dry	Wired In	-	-	14.3	-
1058162	3.2W LED	2700K	90	131	Dry	Wired In	-	-	14.3	-
1058164	3.2W LED	2700K	90	131	Dry	Wired In	-	-	14.3	-
1058158	3.2W LED	2700K	90	131	Dry	Wired In	-	-	14.3	-
1058163	3.2W LED	2700K	90	131	Dry	Wired In	-	-	14.3	-
1058189	3.2W LED	2700K	90	131	Dry	Cord Set	-	-	14.3
1058159	3.2W LED	2700K	90	131	Dry	Cord Set	-	-	14.3
1058167	3.2W LED	2700K	90	131	Dry	Cord Set	-	-	14.3
1058166	3.2W LED	2700K	90	131	Dry	Cord Set	-	-	14.3
1058165	3.2W LED	2700K	90	131	Dry	Cord Set	-	-	14.3

Info

Enna Square

Matt Black | 1058055

Enna Square

New

Enna Square

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1058086	4.5W LED	2700K	90	111	Dry	Wired In	-	-	-	17		-
1058049	4.5W LED	2700K	90	111.44	Dry	Wired In	-	-	-	17		-
1058044	4.5W LED	2700K	90		Dry	Wired In	-	-	-	-		-
1058046	4.5W LED	2700K	90		Dry	Wired In	-	-	-	-		-
1058228	4.5W LED	2700K	90		Dry	Wired In	-	-	-	-		-
1058047	4.5W LED	2700K	90		Dry	Wired In	-	-	-	-		-
1058184	4.3W LED	2700K	90	134	Dry	Cord Set	-	-	-	16.9
1058181	4.3W LED	2700K	90	134	Dry	Cord Set	-	-	-	16.9
1058169	4.3W LED	2700K	90	134	Dry	Cord Set	-	-	-	16.9
1058183	4.3W LED	2700K	90	134	Dry	Cord Set	-	-	-	16.9
1058180	4.3W LED	2700K	90	134	Dry	Cord Set	-	-	-	16.9
1058182	4.3W LED	2700K	90	134	Dry	Cord Set	-	-	-	16.9
1058087	4.5W LED	2700K	90	111.44	Dry	Wired In	-	-	-	17	-
1058055	4.5W LED	2700K	90		Dry	Wired In	-	-	-	-	-
1058050	4.5W LED	2700K	90		Dry	Wired In	-	-	-	-	-
1058052	4.5W LED	2700K	90		Dry	Wired In	-	-	-	-	-
1058053	4.5W LED	2700K	90		Dry	Wired In	-	-	-	-	-

Info

Enna Twin

Matt Nickel | 1058200

Enna Twin

New

Enna Twin

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1058202	8.8W LED	2700K	90	328	Dry	Wired In	-	-	-	38.4	-
1058198	8.8W LED	2700K	90	328	Dry	Wired In	-	-	-	38.4	-
1058201	8.8W LED	2700K	90	328	Dry	Wired In	-	-	-	38.4	-
1058200	8.8W LED	2700K	90	328	Dry	Wired In	-	-	-	38.4	-
1058199	8.8W LED	2700K	90	328	Dry	Wired In	-	-	-	38.4	-
1058207	8.8W LED	2700K	90	328	Dry	Cord Set	-	-	-	38.4
1058203	8.8W LED	2700K	90	328	Dry	Cord Set	-	-	-	38.4
1058206	8.8W LED	2700K	90	328	Dry	Cord Set	-	-	-	38.4
1058205	8.8W LED	2700K	90	328	Dry	Cord Set	-	-	-	38.4
1058204	8.8W LED	2700K	90	328	Dry	Cord Set	-	-	-	38.4

Info

Enna Wall LED (Cord Set) (1058173) in Matt Black

Enna Swing

Matt Black | 1058173

Enna Swing

New

Enna Swing

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1058039	4.7W LED	2700K	90	104.98	Dry	Wired In	-	-	-	-	-
1058040	4.7W LED	2700K	90	104.98	Dry	Wired In	-	-	-	-	-
1058038	4.7W LED	2700K	90	104.98	Dry	Wired In	-	-	-	-	-
1058173	4.7W LED	2700K	90	104.98	Dry	Cord Set	-	-	-	-
1058174	4.7W LED	2700K	90	104.98	Dry	Cord Set	-	-	-	20
1058171	4.7W LED	2700K	90	104.98	Dry	Cord Set	-	-	-	20

Info

Enna Floor

Matt Gold | 1058091

Enna Floor

New

Enna Floor

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1058090	3.3W LED	2700K	90	144	Dry	Plug In	-	-	-	17.6	-
1058091	4.5W LED	2700K	90	124	Dry	Plug In	-	-	-	-	-
1058089	3.3W LED	2700K	90	144	Dry	Plug In	-	-	-	17.6	-

Info

Enna Surface Round

Matt White | 1058123

Enna Surface Round

New

Enna Surface Round

Code	Lamp & Wattage	K	CRI	LM	IP	power connection	type of dimmer
1058124	3.3W LED	2700K	90	144	Dry	Wired In	-	-	-	17.6	-
1058127	3.3W LED	2700K	90	144	Dry	Wired In	-	-	-	17.6	-
1058125	3.3W LED	2700K	90	144	Dry	Wired In	-	-	-	17.6	-
1058123	3.3W LED	2700K	90	144	Dry	Wired In	-	-	-	17.6	-
1058177	4.1W LED	2700K	90	149	Dry	Cord Set	-	-	-	17.0
1058175	4.1W LED	2700K	90	149	Dry	Cord Set	-	-	-	17.0
1058178	4.1W LED	2700K	90	149	Dry	Cord Set	-	-	-	17.0
1058176	4.1W LED	2700K	90	149	Dry	Cord Set	-	-	-	17.0
1058170	4.1W LED	2700K	90	149	Dry	Cord Set	-	-	-	17.0
