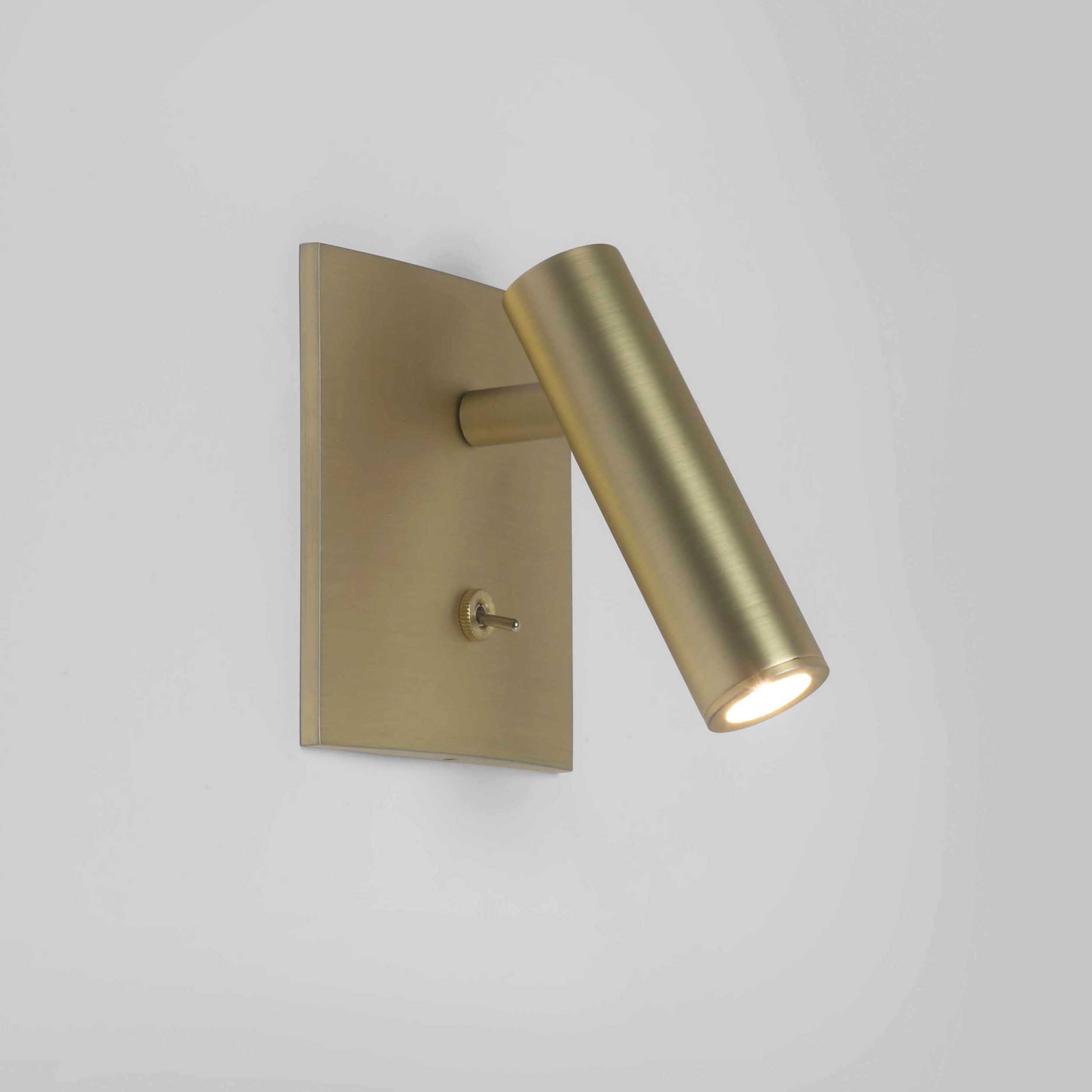

Enna Square Switched LED (1058044) in Matt Gold - Product Image 1

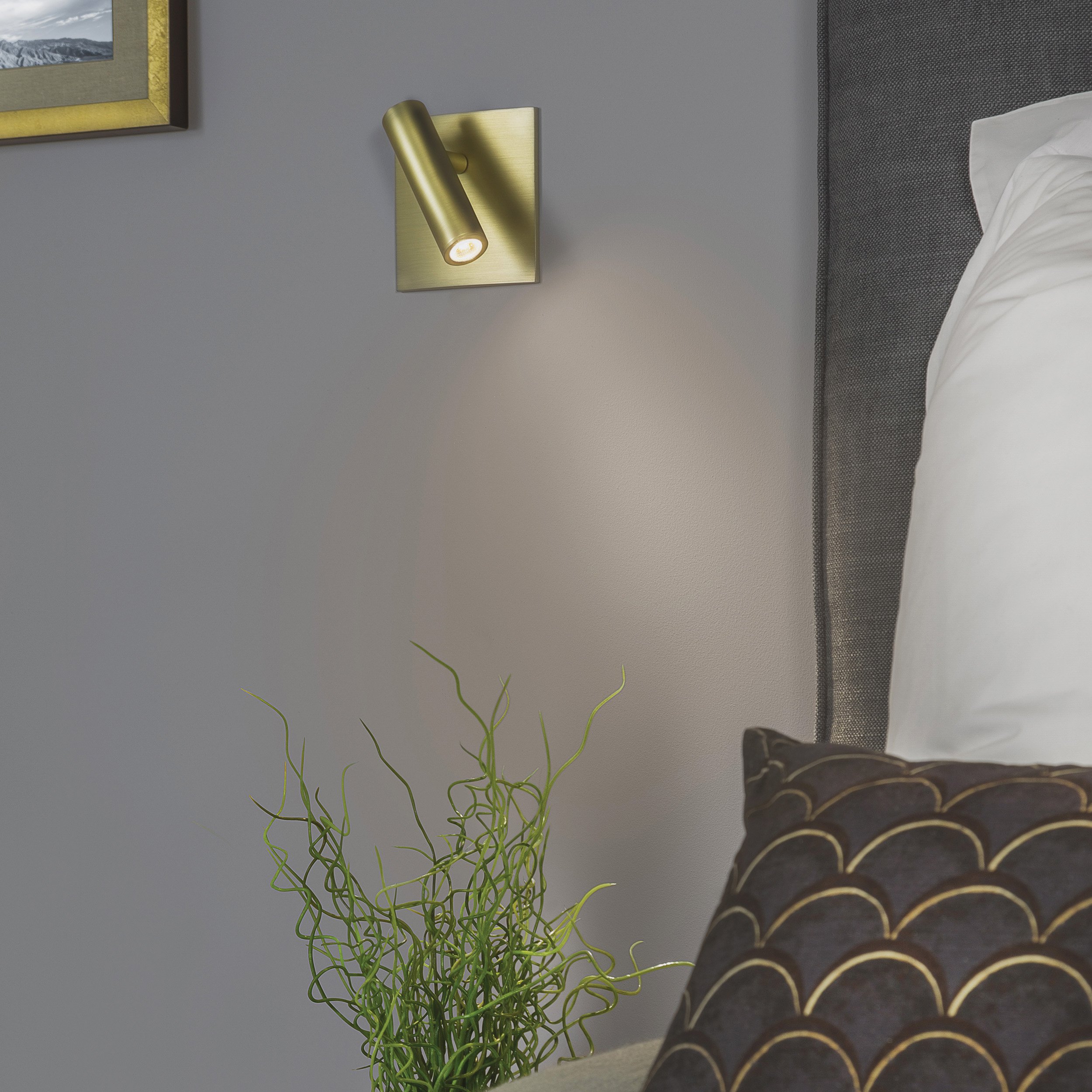

Enna Square Switched LED (1058044) in Matt Gold - Insitu Image 1

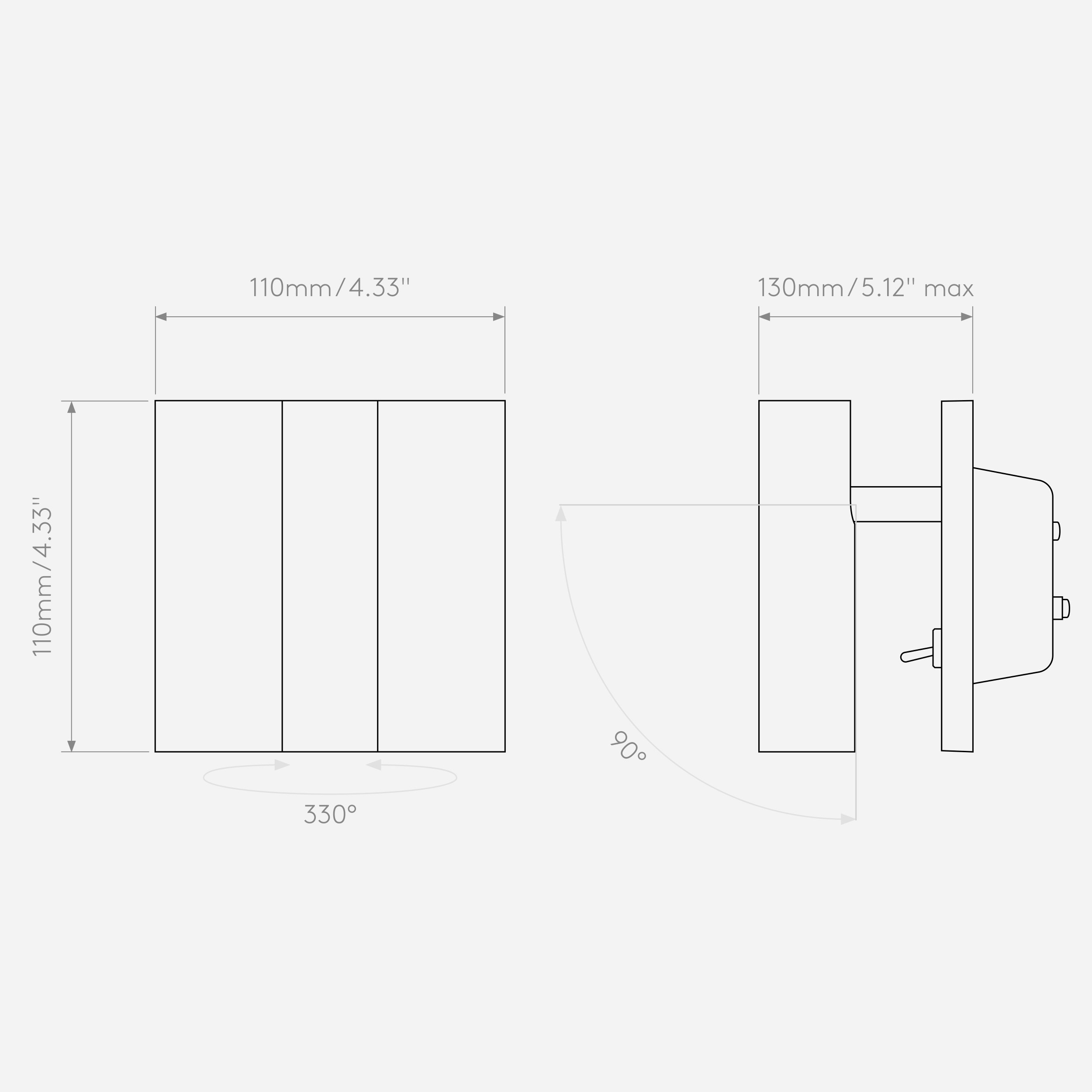

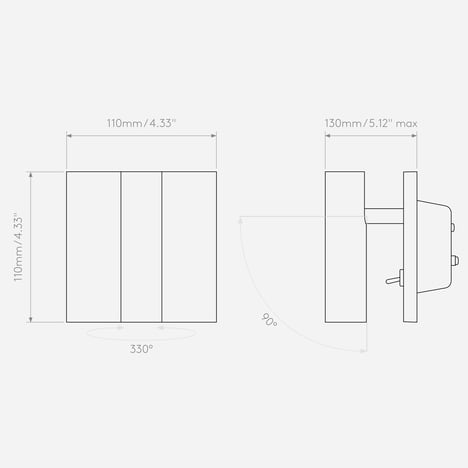

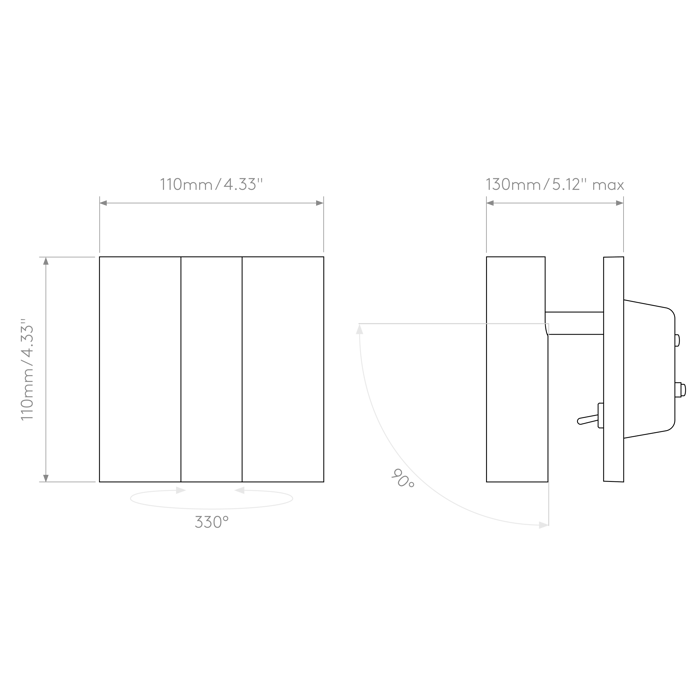

Enna Square Switched LED (1058044) in Matt Gold - Technical Drawing

Enna Square Switched LED

Matt Gold 1058044

Lamp Required:	No
Max Lamp Type & Wattage:	4.5W LED
Color Temperature (K):	2700
Location Rating:	Dry

full details and accessories Where to Buy

This product supersedes 1058096

Product Care and Cleaning Guide

To maintain this product to its best condition, please view our care and cleaning guide.

Available with cord set

This product is available with cord set for headboard mounting (minimum order quantities apply). UL approved. For datasheet and instructions see the product downloads section below. Please contact our sales team for more information.

Positioning Guide

For tips on optimizing installation position, please view our guide.

Play

Specification

Lamp Required:	No
Color Temperature (K):	2700
CRI:	90
Max Lamp Type & Wattage:	4.5W LED
Switched:	Yes
Driver Required:	No
Certification / Class:	cULus (Class 1)
Power Connection Type:	Wired In
Location Rating:	Dry
Fitting Method:	4in Octagon Box
ADA Compliant:	Yes - if installed in compliance with ADA 307.2, 308, 309.3, 309.4
IC Rated:	Yes
Direction Adjustable:	Yes
Installation Orientation:	Wall Mount - Vertical
Recess Depth:	31

Downloads

Datasheet

Instructions
