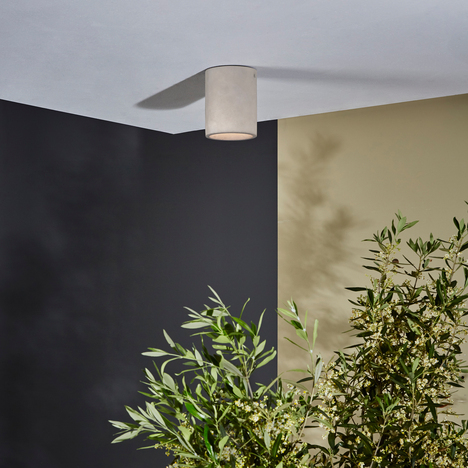

Kos LED Round
Matt Concrete 1326049
spec overview
Lamp Included 7.2W LED Wet Rated
Product Care and Cleaning Guide
To maintain this product to its best condition, please view our care and cleaning guide.
Specification
| Lamp Required: | No |
|---|---|
| Lumen Output (LM): | 458 |
| Color Temperature (K): | 2700 |
| CRI: | 90 |
| Beam Angle (°): | 35.4 |
| Max Lamp Type & Wattage: | 7.2W LED |
| Switched: | No |
| Dimmable: | Yes |
| Type Of Dimmer: | Phase - Leading & Trailing Edge |
| Driver Required: | No |
| Certification / Class: | cULus (Class 1) |
| Power Connection Type: | Wired In |
| Location Rating: | Wet |
| Fitting Method: | 4in Octagon Box |
| ADA Compliant: | Yes - if installed in compliance with ADA 307.4 |
| Title 24 Compliant: | Yes - when installed outdoors |
| Installation Orientation: | Ceiling Mount |
Downloads
More in the Collection
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1326050 |
|
7.2W LED | 2700K | 90 | 458 | Wet | Wired In | Lamp Dependent | - | - | 35.4 | - | - | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1326031 |
 |
11.4W LED | 2700K | 90 | 721 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326058 |
|
11.8W LED | 3000K | 90 | 950 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326029 |
 |
11.4W LED | 2700K | 90 | 721 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326053 |
|
11.8W LED | 3000K | 90 | 950 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326030 |
 |
11.4W LED | 2700K | 90 | 721 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326059 |
|
11.8W LED | 3000K | 90 | 950 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1326034 |
|
11.4W LED | 2700K | 90 | 721 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326057 |
|
11.8W LED | 3000K | 90 | 950 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326054 |
|
11.7W LED | 3000K | 90 | 694 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 25.6 | - | - | - |
| 1326033 |
|
11.4W LED | 2700K | 90 | 721 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
| 1326056 |
|
11.8W LED | 3000K | 90 | 950 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 36.0 | - | - | - |
Kos Round LED 3000K
Made to order| Code | Finish | Lamp & Wattage | K | CRI | LM | IP | power connection | type of dimmer |
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1326051 |
|
7.5W LED | 3000K | 90 | 514 | Wet | Wired In | Phase - Leading & Trailing Edge | - | - | 35.1 | - | - |
